Cisco

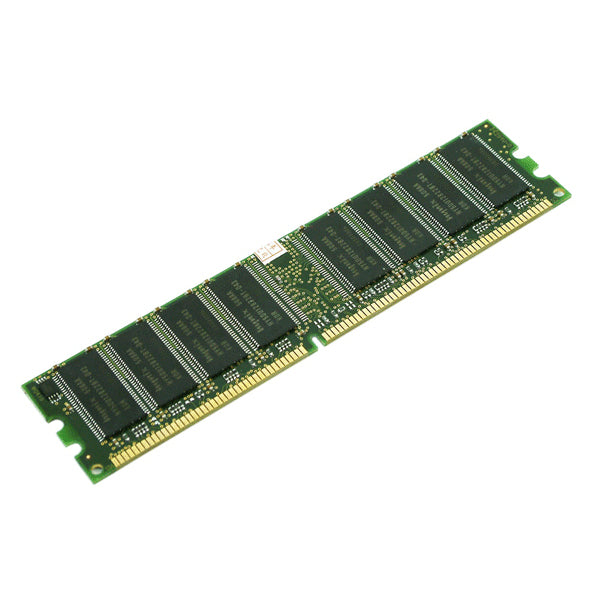

Cisco UCS-MR-X32G2RTHM | UCS 32GB DDR4-2933 RDIMM, 2Rx4, 8Gb ICs, Micron

SKU:UCS-MR-X32G2RTHM

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 32GB registered ECC DDR4 RDIMM is a Cisco UCS server memory option for M5-generation C-Series rack servers and B-Series blades. It suits memory upgrades or full population on these platforms, and the HyperFlex equivalent part number is HX-MR-X32G2RTHM.

The module is rated for 2933 MT/s (PC4-23400) and uses a dual-rank x4 (2Rx4) design with 8Gb DRAM devices, running at 1.2V on a 288-pin interface. This SKU is the Micron-sourced variant, identified by the M suffix. M5 servers provide six memory channels per CPU with up to two DIMMs per channel, and actual operating speed depends on the memory interface of the installed Intel Xeon Scalable processor, with speeds from 2133 to 2933 MHz.

It is supported on 1st and 2nd Generation Intel Xeon Scalable platforms, and runs at the CPU's maximum supported memory speed on first generation processors. The DIMM is powered by the host server, so no separate power supply is needed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered ECC DDR4 for server reliability and availability
- 2933 MT/s rating for 2nd Generation Intel Xeon Scalable platforms
- Dual-rank x4 design with 8Gb DRAM devices
- Low 1.2V operating voltage
- Runs at the CPU's maximum memory speed on 1st Generation Xeon Scalable servers
- Powered by the host server with no separate power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 32 GB
- Memory type: DDR4 registered ECC DIMM (RDIMM)
- Speed: 2933 MT/s (PC4-23400)
- Ranks: 2Rx4 (dual rank, x4 organisation)
- DRAM density: 8Gb
- Operating voltage: 1.2 V
- Pin count: 288-pin
- Sourcing: Micron (M suffix)
- Supported CPUs: 1st and 2nd Generation Intel Xeon Scalable
- Memory channels on M5 servers: 6 per CPU, up to 2 DIMMs per channel
- Cisco description: 32GB RDIMM DRx4 2933 (8Gb)

FAQs

Q: Which servers is this memory used in?
A: It is a Cisco UCS memory option for M5-generation C-Series rack servers and B-Series blades, and it is listed on the UCS C3260 and C480 M5 model pages. The HyperFlex equivalent is HX-MR-X32G2RTHM.

Q: Will it run at 2933 MT/s on every supported CPU?
A: Not necessarily. The operating speed is set by the memory interface of the installed Intel Xeon Scalable CPU, ranging from 2133 to 2933 MHz. On first generation processors the DIMM runs at the CPU's maximum memory speed.

Q: What does the M suffix in the part number mean?
A: The M suffix identifies the Micron-sourced version of this UCS-MR-X32G2RT-H family module. It has the same 32GB, 2Rx4, 2933 MT/s, 8Gb IC specification.

Q: Is there a newer replacement part?
A: Cisco names UCS-MR-X32G2RW-M, a 32GB 3200MHz RDIMM with 8Gb ICs, as the replacement for this part.

Q: How many of these DIMMs can an M5 server take?
A: M5 servers provide six memory channels per CPU, with up to two DIMMs per channel.
