Cisco

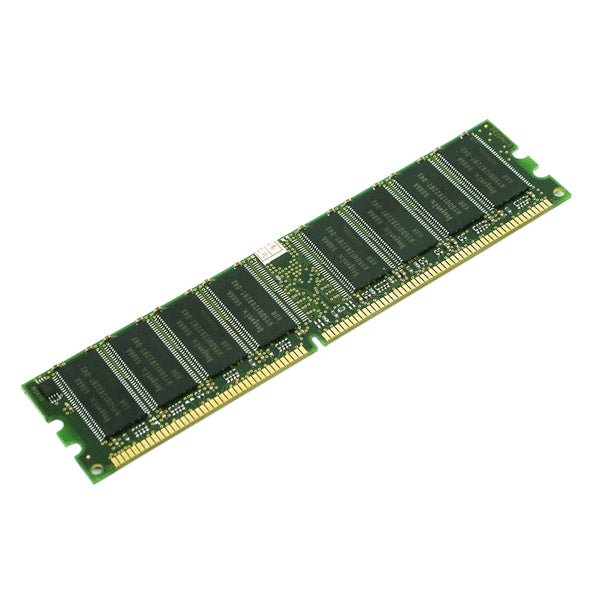

Cisco UCS-MR-X32G1RW-M | UCS M6 32GB DDR4-3200 RDIMM, SRx4 16Gb, Select -M

SKU:UCS-MR-X32G1RW-M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 32GB DDR4-3200 registered ECC DIMM is part of the Cisco UCS M6 DDR4 memory range. It is the Select (-M) variant of the 32GB SRx4 3200 (16Gb) module, intended for capacity and bandwidth expansion on Cisco UCS M6 rack and blade servers used for virtualisation, database and data-intensive workloads.

The module is a single-rank x4 (SRx4) RDIMM built with 16Gb DRAM and operates at 1.2 V. It is rated at 3200 MT/s and runs at the lowest speed supported by the installed CPU. At one and two DIMMs per channel it runs at its labelled 3200 speed where the CPU supports it. ECC and register buffering protect data integrity in multi-DIMM server configurations.

It is used on Cisco UCS C220 M6, C240 M6 and B200 M6 servers based on 3rd Gen Intel Xeon Scalable processors with eight memory channels per CPU. RDIMMs of 16, 32 and 64 GB can be mixed in a server provided the population is balanced, and RDIMMs must not be mixed with LRDIMMs. For best performance, populate at least one DIMM per channel with identical capacities per slot.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered DIMM with ECC for server data integrity
- Single-rank 32GB module built with 16Gb DRAM
- Runs at its labelled 3200 speed at 1 and 2 DIMMs per channel when the CPU supports it
- Supports balanced mixing of 16, 32 and 64 GB RDIMMs in the same server
- Eight-channel per CPU support on UCS M6 platforms for high memory bandwidth
- Suited to virtualisation, database and data-intensive workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 32 GB
- Memory type: DDR4 RDIMM, registered, ECC
- Speed: 3200 MT/s (DDR4-3200)
- Voltage: 1.2 V
- Ranks per DIMM: 1 (SRx4)
- DRAM density: 16Gb
- Variant: Select (-M)
- PID description: 32GB 3200MHZ RDIMM (16Gb)
- Speed behaviour: runs at the lowest speed supported by the installed CPU
- Supported RDIMM capacities in M6 population rules: 16, 32 and 64 GB
- Platform: Cisco UCS M6 servers with 3rd Gen Intel Xeon Scalable processors

FAQs

Q: Which Cisco UCS servers use this memory?
A: It is intended for Cisco UCS C220 M6, C240 M6 and B200 M6 servers based on 3rd Gen Intel Xeon Scalable (Ice Lake) processors.

Q: Can it be mixed with LRDIMMs?
A: No. RDIMMs must not be mixed with LRDIMMs in the same server. RDIMMs of 16, 32 and 64 GB can be mixed if the population is balanced.

Q: Will it always run at 3200 MT/s?
A: The DIMM runs at the lowest speed supported by the installed CPU. At one and two DIMMs per channel it runs at 3200 where the CPU supports that speed.

Q: How does the -M variant differ from the base module?
A: UCS-MR-X32G1RW-M is the Select variant of UCS-MR-X32G1RW. Both are 32GB SRx4 3200 (16Gb) RDIMMs.

Q: How should DIMMs be populated for best performance?
A: Populate at least one DIMM per channel, using 1, 2, 4, 6, 8, 12 or 16 DIMMs per CPU, with identical capacities per slot.
