Cisco

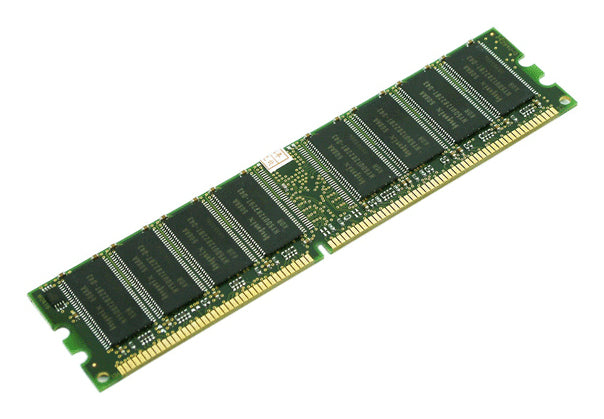

Cisco UCS-MR-X16G1RW | UCS 16GB DDR4 RDIMM, 3200 MT/s, SRx4, 8Gb DRAM

SKU:UCS-MR-X16G1RW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco UCS 16GB DDR4 RDIMM is a registered ECC memory module for Cisco UCS M6 generation servers built on 3rd Gen Intel Xeon Scalable (Ice Lake) processors. It suits main memory upgrades and factory-style configurations for UCS C220, C240 and B200 servers running virtualisation, database and general data-centre workloads.

The module provides 16 GB of capacity at 3200 MT/s (PC4-25600) using a single rank of x4 devices built from 8Gb DRAM, operating at 1.2 V in a 288-pin DIMM format. The M6 platform offers 8 memory channels per CPU with up to 2 DIMMs per channel, for a maximum of 32 DIMMs per server. A single-CPU server supports 1, 2, 4, 6, 8, 12 or 16 DIMMs, and a dual-CPU server supports 2, 4, 8, 12, 16, 24 or 32 DIMMs.

This part can be mixed with 32 GB and 64 GB RDIMMs, but RDIMMs cannot be mixed with LRDIMMs. Do not mix DIMM types in a system that uses Intel Optane PMem. The X-Series equivalent of this part is UCSX-MR-X16G1RW.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered ECC DDR4 for server-class reliability
- Runs at 3200 MT/s, the standard memory speed for UCS M6 servers (actual system speed depends on the CPU's DIMM speed support)
- Can be mixed with 32 GB and 64 GB RDIMMs in balanced configurations
- Supports the ADDDC, mirroring and maximum performance memory RAS modes
- Single-rank x4 design with 8Gb DRAM density
- Listed in the Cisco UCS C220/C240/B200 M6 Memory Guide

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 16 GB
- DIMM type: RDIMM (registered, ECC DDR4)
- Speed: 3200 MT/s (PC4-25600)
- Ranks per DIMM: 1 (SRx4)
- DRAM density: 8Gb
- Voltage: 1.2 V
- Pin count: 288-pin
- Memory channels (M6): 8 per CPU, up to 2 DIMMs per channel
- Maximum DIMMs per server (M6): 32 (16 per CPU)
- Allowed DIMM count, 1 CPU: 1, 2, 4, 6, 8, 12 or 16
- Allowed DIMM count, 2 CPUs: 2, 4, 8, 12, 16, 24 or 32
- Mixing: 16 GB, 32 GB and 64 GB RDIMMs can be mixed, RDIMMs cannot be mixed with LRDIMMs
- Supported RAS BIOS options: ADDDC (default), Maximum performance, Full mirroring, Partial mirroring

FAQs

Q: Which servers is this memory listed for?
A: It is listed in the Cisco UCS C220/C240/B200 M6 Memory Guide for 3rd Gen Intel Xeon Scalable (Ice Lake) servers. It is also listed for M5 generation UCS servers in the Cisco M5 memory guide.

Q: Can I mix it with LRDIMMs or other RDIMM sizes?
A: It can be mixed with 32 GB and 64 GB RDIMMs, but mixing RDIMMs with LRDIMMs is not supported. Do not mix DIMM types (size, speed or ranks) in a system that uses Intel Optane PMem.

Q: How many DIMMs can I install?
A: A single-CPU M6 server supports 1, 2, 4, 6, 8, 12 or 16 DIMMs. A dual-CPU server supports 2, 4, 8, 12, 16, 24 or 32 DIMMs.

Q: Does it need a separate power supply?
A: No. It operates at 1.2 V supplied by the host server.

Q: What is the X-Series equivalent of this part?
A: The X-Series equivalent is UCSX-MR-X16G1RW.
