Cisco

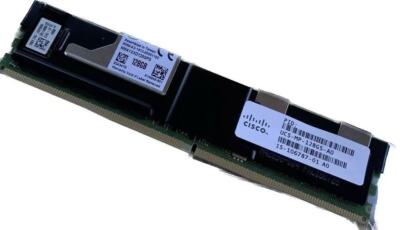

Cisco UCS-MP-128GS-A0 | UCS Optane Persistent Memory Module, 128GB, 2666 MHz

SKU:UCS-MP-128GS-A0

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS-MP-128GS-A0 is a 128GB Intel Optane Persistent Memory module for Cisco UCS M5 servers built on 2nd Generation Intel Xeon Scalable (Cascade Lake) processors. It suits memory-intensive workloads such as in-memory databases, virtualisation and analytics that need more memory capacity per slot or storage-class persistent memory.

The module is a single 128GB, 2666 MHz rated part in a 288-pin DIMM form factor that fits a DDR4 slot. It can run in Memory Mode, where it acts as volatile system memory with DRAM as a cache and is the factory default, in App Direct Mode, where it acts as non-volatile solid-state storage, or in Mix Mode. The Intel recommended DIMM to PMem capacity ratio in Memory Mode is 1:2 to 1:16 per channel. In the system, the module runs at the CPU memory controller maximum, within a 2133 to 2933 MHz range on M5 servers.

No software licence is required for the module itself. The operational mode is selected at order time using UCS-DCPMM-AD for App Direct or UCS-DCPMM-MM for Memory Mode, and a memory mirroring option is available as N01-MMIRROR. When PMem is installed, all DIMMs must be the same type and size, so mixing with other DIMM types is not allowed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-volatile persistent memory in a standard DIMM form factor
- Greater memory capacity per slot than conventional DRAM
- Up to 9 TB per UCS B200 M5 blade when combined with DRAM (12 x 256GB DIMM and 12 x 512GB PMem)
- Selectable Memory Mode, App Direct Mode or Mix Mode
- Memory Mode uses DRAM as a cache in front of the persistent memory
- Memory mirroring option available through N01-MMIRROR

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCS-MP-128GS-A0
- Product type: Intel Optane Persistent Memory (PMem) module
- Capacity per module: 128 GB (1 x 128GB)
- Rated speed: 2666 MHz
- Form factor: 288-pin DIMM (DDR4-compatible slot)
- Supported processors: 2nd Generation Intel Xeon Scalable (Cascade Lake)
- Supported modes: Memory Mode, App Direct Mode, Mix Mode
- Memory Mode: PMem acts as 100% volatile memory with DRAM as cache, factory default
- App Direct Mode: PMem acts as non-volatile solid-state storage
- Memory Mode DIMM to PMem ratio: 1:2 to 1:16 per channel (Intel recommended)
- Operating speed in system: set by the CPU memory controller, 2133 to 2933 MHz range on M5 servers
- DIMM mixing: not allowed when PMem is installed, all DIMMs must be the same type and size
- Operational mode PIDs: UCS-DCPMM-AD (App Direct), UCS-DCPMM-MM (Memory Mode)
- Memory mirroring option PID: N01-MMIRROR
- Related capacities: UCS-MP-256GS-A0 (256GB), UCS-MP-512GS-A0 (512GB)

FAQs

Q: Does this module need a software licence?
A: No software licence is required for the module itself. An operational mode PID is chosen when ordering, either UCS-DCPMM-AD for App Direct Mode or UCS-DCPMM-MM for Memory Mode. Memory Mode is the factory default.

Q: Which servers is it compatible with?
A: It is designed for Cisco UCS M5 servers with 2nd Generation Intel Xeon Scalable processors, as confirmed in the UCS B200 M5 specification sheet.

Q: Can it be mixed with other DIMM types or sizes?
A: No. When PMem is installed, all DIMMs must be the same type and size. Refer to the Cisco C220/C240/B200 M5 Memory Guide for population and mixing rules.

Q: What is the difference between Memory Mode and App Direct Mode?
A: In Memory Mode the PMem acts as 100% volatile system memory with DRAM as a cache, and only the PMem capacity counts toward CPU tiering. In App Direct Mode the PMem acts as non-volatile solid-state storage, and both PMem and DIMM capacity count toward CPU tiering.

Q: How does this 128GB module differ from the other capacities?
A: UCS-MP-128GS-A0 provides 128GB per module. Cisco also offers the same module type in 256GB (UCS-MP-256GS-A0) and 512GB (UCS-MP-512GS-A0) capacities.
