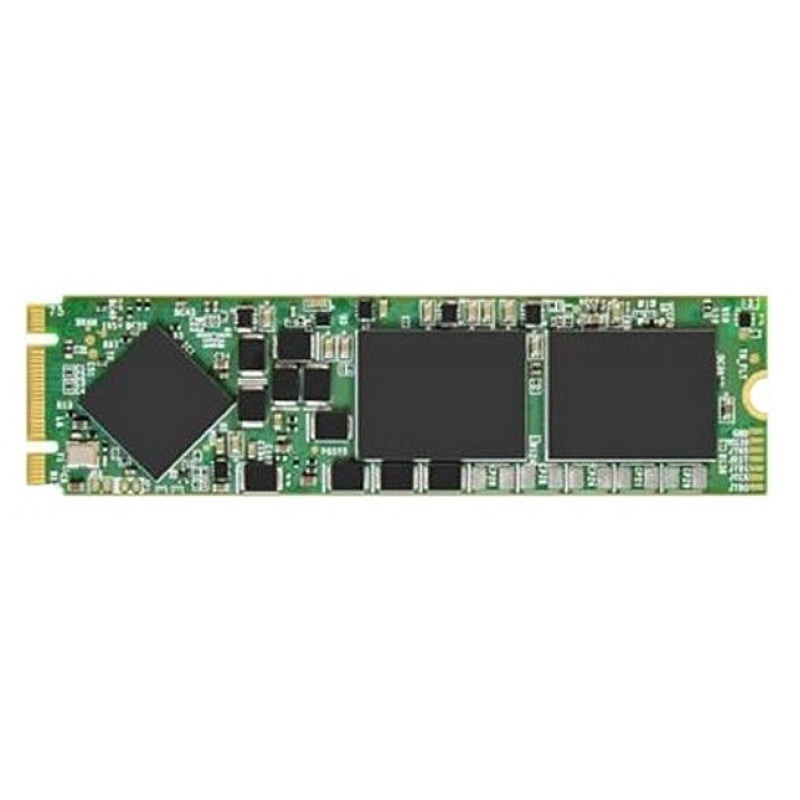

Cisco UCS-M2-I240GB-D | 240GB M.2 SATA Boot SSD, Intel, UCS Server
SKU:UCS-M2-I240GB-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 240GB M.2 SATA SSD is an Intel boot drive for Cisco UCS servers. It is intended as an operating system or hypervisor boot device in UCS rack and blade servers, and can be mirrored for resilience when fitted to a boot-optimised RAID controller.
The drive uses the M.2 form factor with a SATA 6Gb/s interface and 240GB of capacity. It installs in the UCS-MSTOR-M2 mini storage carrier or the UCS-M2-HWRAID boot-optimised M.2 RAID controller, each of which holds up to two M.2 SATA SSDs. Through the UCS-M2-HWRAID controller, RAID 1 and JBOD are supported, and volumes can be configured and monitored using Cisco IMC or UCS Manager.
The SSD draws power from the host server through the carrier or controller, so no separate power supply is needed. Cisco recommends M.2 SATA SSDs be used as boot-only devices. Check the exact part number against the target server's specification sheet before ordering.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Boot-optimised 240GB M.2 SATA SSD for Cisco UCS servers
- Works with the hardware RAID boot controller for RAID 1 mirroring or JBOD
- Volumes configurable and monitorable through Cisco IMC and UCS Manager
- Installs in the UCS-MSTOR-M2 mini storage carrier
- Powered through the host server, no separate power supply required
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 240 GB
- Form factor: M.2
- Interface: SATA 6Gb/s
- Drive type: Intel SSD, boot-optimised
- Intended use: boot-only device
- Host carrier: UCS-MSTOR-M2 mini storage carrier, holds up to 2 M.2 SATA SSDs
- Host controller: UCS-M2-HWRAID boot-optimised RAID controller, holds up to 2 M.2 SATA SSDs
- RAID support via UCS-M2-HWRAID: RAID 1 and JBOD
- Management: Cisco IMC and UCS Manager
- Power: supplied by the host server through the carrier or controller
FAQs
Q: What do I need to install this SSD in a UCS server?
A: It fits the UCS-MSTOR-M2 mini storage carrier or the UCS-M2-HWRAID boot-optimised M.2 RAID controller. Each holds up to two M.2 SATA SSDs.
Q: Does it support RAID?
A: Yes, when fitted to the UCS-M2-HWRAID controller. The controller supports RAID 1 and JBOD.
Q: Can I use it as a data drive?
A: Cisco recommends M.2 SATA SSDs be used as boot-only devices, so it is best suited to hosting an operating system or hypervisor.
Q: How is it managed?
A: Volumes can be configured and monitored through Cisco IMC or UCS Manager when used with the boot-optimised RAID controller.
Q: Does it need a separate power supply?
A: No. It is powered from the host server through the M.2 carrier or RAID controller.
