Cisco

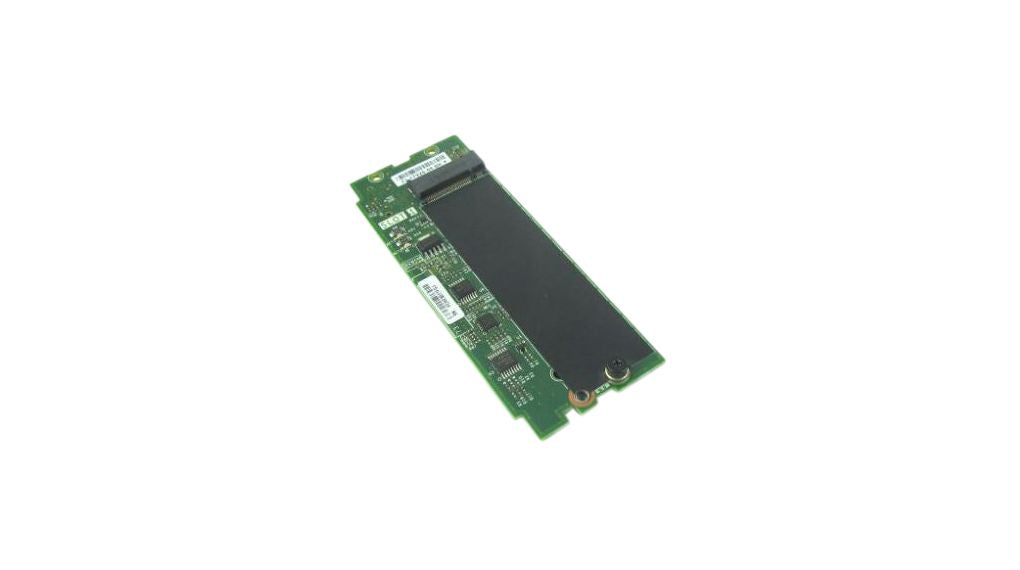

Cisco UCS-M2-HWRAID | UCS Boot-Optimized M.2 SATA RAID Controller, RAID 1

SKU:UCS-M2-HWRAID

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Boot-Optimized M.2 RAID Controller is a hardware RAID module for Cisco UCS servers, designed to protect the operating system boot drive. It provides RAID 1 mirroring or JBOD across one or two SATA M.2 SSDs, which keeps the front drive bays free for data drives. It suits mirrored OS boot volumes on Cisco UCS blade and rack servers running Windows or Linux.

The controller runs at 6Gb/s SATA and supports up to two SATA M.2 SSDs. Supported drive capacities are 240 GB and 960 GB, and both drives on the same controller must be the same capacity. Boot mode is UEFI only, and legacy boot is not supported. Volumes are configured and monitored through Cisco IMC or UCS Manager, version 4.0(4) or later, where the controller appears as MSTOR-RAID.

In UCS B-Series blades the controller plugs into the UCSB-MSTOR-M6 mini storage carrier, which holds up to two controllers for a maximum of four SATA M.2 drives on the B200 M6. It is powered from the host server and carrier, and replacement is not hot-plug, so the server must be powered off.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware RAID 1 mirroring of boot drives across two SATA M.2 SSDs
- JBOD mode supported
- Configuration and monitoring through Cisco IMC and UCS Manager
- Frees front drive bays for data drives by moving the OS boot volume to M.2
- Required whenever SATA M.2 drives are selected in supported UCS servers
- Compatible with both Intersight Managed Mode and UCSM Managed Mode configurations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCS-M2-HWRAID
- Description: Cisco Boot optimized M.2 RAID controller
- Interface: 6Gb/s SATA
- M.2 drives per controller: up to 2 SATA M.2 SSDs
- RAID levels: RAID 1 and JBOD
- Supported SSD capacities: 240 GB and 960 GB only
- Drive rule: both drives on the same controller must be the same capacity
- Boot mode: UEFI only, legacy boot not supported
- Supported operating systems: Windows and Linux
- Management: Cisco IMC / UCS Manager for volume configuration and monitoring
- Minimum software version: Cisco IMC / UCS Manager 4.0(4) and later
- Controller name in software: MSTOR-RAID
- Host carrier (B200 M6): UCSB-MSTOR-M6 mini storage carrier, up to two controllers and four SATA M.2 drives
- Power: supplied by the host server and carrier
- Replacement: hot-plug not supported, server must be powered off

FAQs

Q: Which M.2 SSDs can be used with this controller?
A: Only 240 GB and 960 GB SATA M.2 SSDs are supported, such as UCS-M2-I240GB and UCS-M2-960G. Both drives on the same controller must be the same capacity.

Q: Which RAID levels does it support?
A: It supports RAID 1 mirroring and JBOD. RAID 1 mirrors the boot volume across two M.2 drives.

Q: What software version is required?
A: Cisco IMC or UCS Manager version 4.0(4) or later is required to configure volumes and monitor the controller and M.2 drives.

Q: Does it support legacy BIOS boot?
A: No. The controller supports UEFI boot mode only, and legacy boot mode is not supported.

Q: Can it be replaced while the server is running?
A: No. Hot-plug replacement is not supported, so the server must be powered off before the controller is replaced.

Q: Which servers and carriers does it work with?
A: On the UCS B200 M6 it plugs into the UCSB-MSTOR-M6 mini storage carrier, which holds up to two controllers. It is required whenever SATA M.2 drives are selected on supported UCS servers.
