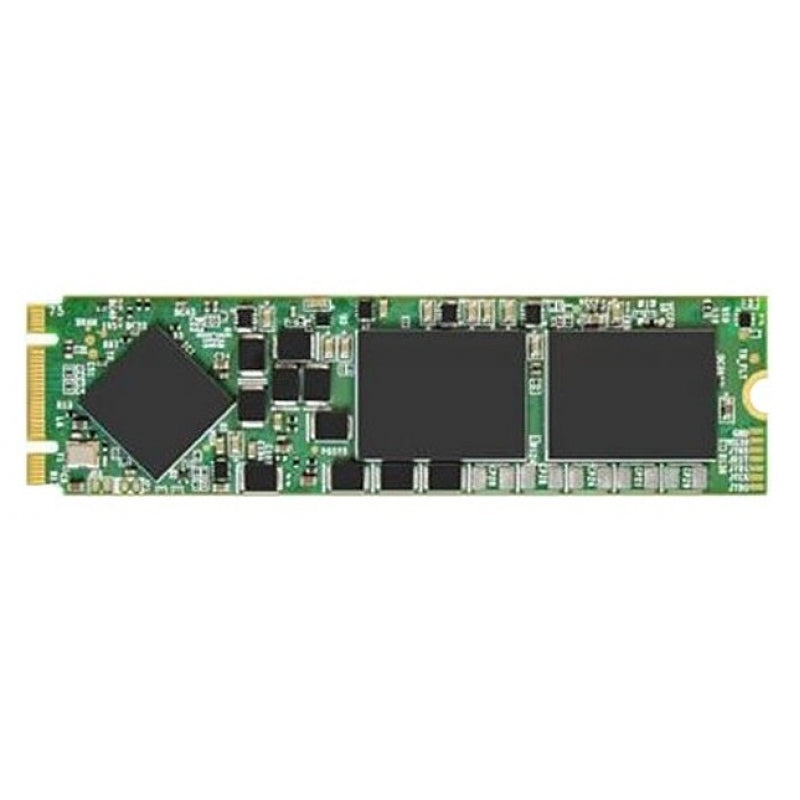

Cisco UCS-M2-240GB | UCS 240GB M.2 SATA SSD, Micron G1, 2280, 6Gb/s
SKU:UCS-M2-240GB
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS-M2-240GB is a 240GB M.2 SATA solid-state drive for Cisco UCS servers, intended for boot and operating-system use. It installs in the dual-slot UCS-MSTOR-M2 mini storage carrier used in M5-generation UCS B-Series and C-Series servers, and is typically deployed as a mirrored pair for hypervisor or bare-metal OS installs such as ESXi and Hyper-V.
This variant is a Micron G1 drive in the M.2 2280 form factor with a SATA III 6 Gb/s interface. It is powered from the host server through the carrier, so no separate power supply is needed. Embedded software RAID is supported when two M.2 SATA drives are fitted, while the carrier itself has no RAID controller.
The UCS-MSTOR-M2 carrier holds up to two M.2 SATA SSDs, and drives of different capacities cannot be mixed within one carrier. The 240GB drive and the 960GB option (UCS-M2-960GB) are the two M.2 SATA capacities available for this carrier.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Enterprise-grade M.2 SATA boot drive for Cisco UCS servers
- Supports a mirrored boot pair using embedded software RAID with two drives
- Suited to hypervisor installs such as ESXi and Hyper-V
- Compact M.2 2280 form factor frees up front drive bays for data storage
- Powered through the carrier, no separate power connection required
- Companion 960GB option available for the same carrier
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 240 GB
- Form factor: M.2 2280
- Interface: SATA III, 6 Gb/s
- Drive type: Micron G1 SSD
- Intended use: boot and operating-system drive
- Designed for: Cisco UCS B200 M5 Blade Server and C-Series M5 rack servers
- Carrier: UCS-MSTOR-M2 dual M.2 SATA mini storage carrier
- Carrier capacity: up to 2 M.2 SATA SSDs, capacities cannot be mixed
- RAID: embedded software RAID with two drives, no RAID controller on the carrier
- Power: supplied by the host server through the carrier
FAQs
Q: Which carrier does this drive install in?
A: It installs in the Cisco UCS-MSTOR-M2 dual M.2 SATA mini storage carrier used in M5-generation UCS B-Series and C-Series servers.
Q: Can I mix this 240GB drive with a 960GB drive in one carrier?
A: No. The UCS-MSTOR-M2 carrier holds up to two M.2 SATA SSDs, and drives of different capacities cannot be mixed within the same carrier.
Q: Can I mirror two of these drives for redundancy?
A: Yes. Embedded software RAID is supported with two M.2 SATA drives in the carrier. The carrier itself has no RAID controller.
Q: Does this drive need a separate power connection?
A: No. It is powered from the host server through the mini storage carrier, so no separate power supply is needed.
Q: What is this drive typically used for?
A: It is a boot and operating-system drive for hypervisors and bare-metal OS installs on Cisco UCS B-Series and C-Series servers, usually deployed as a mirrored pair.
