Cisco UCS-M2-192TB | UCS 1.9TB M.2 SATA SSD, 6Gb/s, Server Drive
SKU:UCS-M2-192TB
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

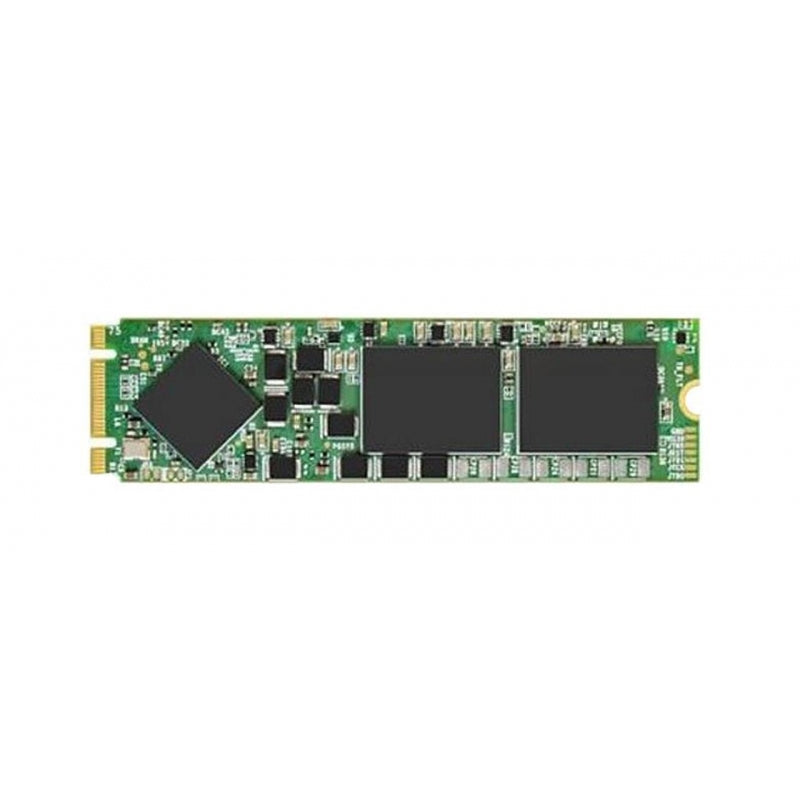

The UCS-M2-192TB is a 1.9TB M.2 SATA solid state drive for Cisco UCS servers. It is designed for boot and operating system use, and suits server builds that need compact local storage without taking up a front drive bay.
The drive uses the M.2 form factor with a SATA 6Gb/s interface. It installs in the Cisco UCS-MSTOR-M2 mini storage carrier, which holds up to two M.2 drives, or behind the UCS-M2-HWRAID boot-optimised RAID controller. Cisco specifies ordering one or two matching M.2 SATA SSDs per server, and pairing two drives behind the RAID controller gives RAID-1 mirroring of the boot volume.
It is supported in Cisco UCS C-Series and B/X-Series servers that accept M.2 SATA SSDs through those carrier and controller options. On the C220 M6, the UCS-M2-HWRAID controller is required for hardware RAID with M.2 SATA drives.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- M.2 SATA form factor suited to boot and OS drive use in UCS servers
- Installs in the UCS-MSTOR-M2 mini storage carrier, which holds up to two M.2 drives
- Works behind the UCS-M2-HWRAID boot-optimised RAID controller
- Supports RAID-1 boot mirroring when two matching drives are used with the RAID controller
- SATA 6Gb/s interface for compact local server storage
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: UCS-M2-192TB
- Capacity: 1.9 TB
- Form factor: M.2
- Interface: SATA 6Gb/s
- Drive type: Internal SSD
- Device supported: Server
- Carrier option: UCS-MSTOR-M2 mini storage carrier, holds up to 2 M.2 drives
- RAID option: UCS-M2-HWRAID boot-optimised M.2 RAID controller
FAQs
Q: Which Cisco UCS servers does it work with?
A: It suits Cisco UCS C-Series and B/X-Series servers that support M.2 SATA SSDs through the UCS-MSTOR-M2 mini storage carrier or the UCS-M2-HWRAID boot-optimised RAID controller.
Q: Do I need the RAID controller to use it?
A: No. It can be installed in the UCS-MSTOR-M2 mini storage carrier. The UCS-M2-HWRAID controller is only needed for hardware RAID, and is required for hardware RAID with M.2 SATA drives on the C220 M6.
Q: How many drives should I fit per server?
A: Cisco specifies one or two matching M.2 SATA SSDs per server. The mini storage carrier holds up to two M.2 drives.
Q: Can I mirror the boot drive?
A: Yes. Fit two matching M.2 SATA SSDs behind the UCS-M2-HWRAID controller to run RAID-1 mirroring of the boot volume.
