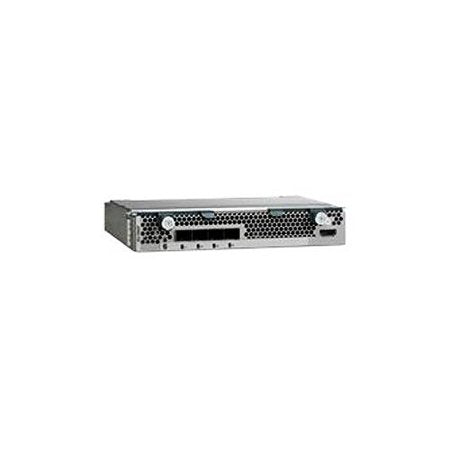

Cisco UCS-IOM2204-8FET | UCS 2204XP Fabric Extender, 4x 10G SFP+, 8x FET Optics
SKU:UCS-IOM2204-8FET
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 2204XP is a second-generation fabric extender (I/O module) for the Cisco UCS 5108 blade server chassis, part of the UCS 2200 Series. It links the chassis to a UCS fabric interconnect over FCoE-capable 10GbE SFP+ uplinks, giving B-Series blade deployments a unified fabric with fewer NICs, HBAs, switches and cables.
This SKU is the bundle that pairs the UCS 2204XP with 8 Cisco FET-10G Fabric Extender Transceivers, which sets it apart from the IOM-only UCS-IOM-2204XP. The module provides 4 x 10G SFP+ fabric uplink ports and 16 x 10G internal server-facing ports, one per half-width blade slot through the midplane. Each IOM delivers up to 40 Gbps of I/O, and fitting two IOMs in a chassis gives up to 80 Gbps with redundant paths. Fabric PortChannel is supported, so uplink ports can be bundled.
It is managed through Cisco UCS Manager on the connected fabric interconnect, with no separate chassis management module required. It is compatible with the UCS 5108 chassis and connects to Cisco UCS 6100 and 6200 Series Fabric Interconnects. The FET-10G optics are used for the links between the fabric extender and the fabric interconnect.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Managed by Cisco UCS Manager, removing chassis management modules and making the chassis stateless
- Autoconfiguration automatically synchronises firmware between fabric extenders and fabric interconnects
- Unified fabric reduces the number of NICs, HBAs, switches and cables required
- Transparently encapsulates Fibre Channel traffic in Ethernet (FCoE)
- Cost-effective fabric connections using Cisco FET-10G optics
- Fabric PortChannel for flexible bundling of fabric uplink ports
- Hot-swappable I/O module at the rear of the chassis, with redundancy when two IOMs are fitted
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: UCS 2204XP Fabric Extender
- Bundle contents: UCS 2204XP plus 8 x FET-10G Fabric Extender Transceivers
- Fabric (uplink) ports: 4 x 10G SFP+, FCoE-capable
- Server-facing (backplane) ports: 16 x 10G
- Bandwidth per IOM: 40 Gbps
- Maximum IOMs per UCS 5100 chassis: 2
- Redundant chassis I/O with two IOMs: up to 80 Gbps
- Fabric PortChannel: supported
- Chassis management: Cisco UCS Manager, no separate chassis management module required
- Compatible chassis: Cisco UCS 5108 Blade Server Chassis
- Compatible fabric interconnects: Cisco UCS 6100 and 6200 Series
- Form factor: same as the 2100 Series IOM
- Dimensions (H x W x D): 19.4 x 3.5 x 18.3 cm
- Weight: 1.1 kg
FAQs
Q: Does the UCS 2204XP need a separate licence?
A: No separate licence is required. The module is managed through Cisco UCS Manager on the connected fabric interconnect.
Q: How does this SKU differ from UCS-IOM-2204XP?
A: UCS-IOM-2204XP is the I/O module only. UCS-IOM2204-8FET is the bundle that pairs the same UCS 2204XP with 8 Cisco FET-10G Fabric Extender Transceivers.
Q: Which chassis and fabric interconnects does it work with?
A: It fits the Cisco UCS 5108 Blade Server Chassis and connects to Cisco UCS 6100 and 6200 Series Fabric Interconnects.
Q: How is the module powered?
A: It is powered from the UCS 5108 chassis, so it needs no separate power connection.
Q: What are the FET-10G optics used for?
A: The FET-10G Fabric Extender Transceivers provide cost-effective links between the fabric extender uplinks and the fabric interconnect.
Q: How much bandwidth does it provide per chassis?
A: Each IOM provides up to 40 Gbps of I/O. With two IOMs fitted in a UCS 5108 chassis, this rises to 80 Gbps with redundant paths.
