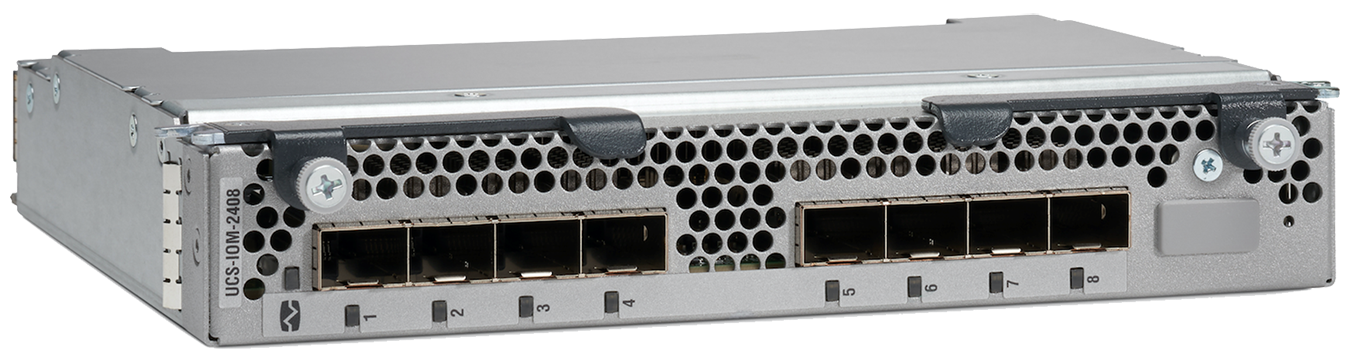

Cisco UCS-IOM-2408-8SFP | UCS 2408 Fabric Extender, 8x 25G SFP28, With Optics
SKU:UCS-IOM-2408-8SFP
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 2408 is a fourth-generation Fabric Extender (I/O Module) for the Cisco UCS 5108 blade chassis. It connects the blade servers in the chassis to the fabric interconnect and does no switching of its own, so it is managed as an extension of the fabric interconnects. A redundant pair of modules per chassis gives lossless, deterministic converged LAN and SAN connectivity in data centres.
Each module provides eight 25GbE FCoE-capable SFP28 uplink ports and 32 internal 10G interfaces to the blades through the midplane, with 1.04 Tbps of hardware forwarding. A pair of modules delivers up to 400 Gbps of I/O per chassis. This UCS-IOM-2408-8SFP SKU is the bundle that includes eight SFP uplink optics, which separates it from the base UCS-IOM-2408 supplied without optics. It supports VLAN trunking with 802.1Q, jumbo frames up to 9216 bytes, Priority Flow Control and DCBX.
The module is powered from the chassis midplane with a maximum draw of 160 W. It works with UCS 6454, UCS 64108 and UCS 6536 Fabric Interconnects, with 25 Gbps operation on the 6454 and 64108. Supported optics include SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S and SFP-25G-SL.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Managed through Cisco UCS Manager or Cisco Intersight, removing separate chassis-management modules
- Firmware synchronised automatically with the fabric interconnects
- Unified fabric carrying LAN, SAN and management traffic over one lossless 25GbE fabric
- Active/active data plane with automatic failover between paired modules
- Fabric ports can be bundled into a fabric port channel
- SFP28 ports support copper Twinax for short runs and fibre for long runs
- Environmental monitoring of power supplies, fans and blades with the fabric interconnect
- Part of Cisco SingleConnect technology
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Generation: Fourth-generation I/O Module, same form factor as UCS 2304
- External ports: 8 x 25 Gigabit Ethernet, FCoE-capable SFP28
- Internal ports: 32 x 10G to blade servers via midplane
- Hardware forwarding: 1.04 Tbps
- I/O per chassis: up to 400 Gbps with a pair of modules
- Modules per chassis: up to 2 per UCS 5108
- VLANs and VSANs: up to 1024, IEEE 802.1Q trunking
- Jumbo frames: up to 9216 bytes on all ports
- Flow control: IEEE 802.3x pause frames and Priority Flow Control
- QoS: 802.1p CoS, strict-priority and WRR egress scheduling, 16 hardware queues per port
- Data Center Bridging: DCBX and IEEE 802.1Qaz bandwidth management
- Maximum power consumption: 160 W
- Dimensions (H x W x D): 7.64 x 1.36 x 7.2 in
- Weight: 2.8 lb (1.134 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m (10,000 ft)
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
- RoHS: RoHS-5 compliant
FAQs
Q: Does the UCS 2408 need a separate licence?
A: No. There is no separate licence for the module itself. It is managed through Cisco UCS Manager or Cisco Intersight as part of the fabric interconnect environment.
Q: How does UCS-IOM-2408-8SFP differ from UCS-IOM-2408?
A: This SKU is the bundle that includes eight SFP uplink optics. The base UCS-IOM-2408 is supplied without optics.
Q: Which chassis and fabric interconnects does it work with?
A: It fits the UCS 5108 blade chassis and works with UCS 6454, UCS 64108 and UCS 6536 Fabric Interconnects. 25 Gbps operation applies to the 6454 and 64108.
Q: Which optics and cables are supported on the uplink ports?
A: Supported optics are SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-10/25G-CSR-S and SFP-25G-SL. Supported cables include SFP-H25G-CU1M/2M/3M/5M and SFP-25G-AOC1M to 10M, plus QSFP-4SFP25G-CU splitters on the 6536 only.
Q: How is the module powered?
A: It is powered from the UCS 5108 chassis midplane. Maximum power consumption is 160 W per module.
Q: How many modules can be installed in one chassis?
A: Up to two per UCS 5108 chassis. A pair provides redundancy and up to 400 Gbps of I/O per chassis.
