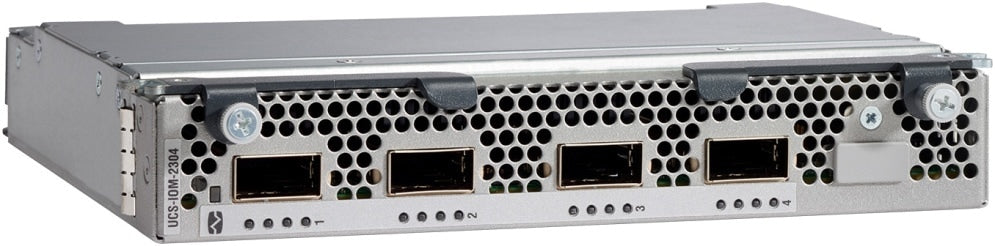

Cisco UCS-IOM-2304V2 | UCS 2304V2 Fabric Extender, 4x 40G QSFP+, 8x 40G
SKU:UCS-IOM-2304V2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 2304V2 is a third-generation I/O Module, also called a fabric extender, that fits the rear of a Cisco UCS 5108 blade chassis. It links the chassis to UCS 6300 Series Fabric Interconnects and is managed as an extension of the fabric interconnect, so it performs no switching of its own. It is typically deployed as a redundant pair per chassis in a UCS data centre.
The module provides four external 40 Gigabit Ethernet FCoE-capable QSFP+ ports and eight internal 40G midplane interfaces, one per half-width blade slot. Hardware forwarding is 960 Gbps, and two modules together deliver up to 320 Gbps of unified LAN and SAN I/O per chassis. This is the V2 revision that replaces UCS-IOM-2304. It requires Cisco UCS Manager 4.0(4) or later and cannot be mixed with the original UCS-IOM-2304 in the same chassis.
It works with the UCS 6300 Series Fabric Interconnects and the UCS 5108 chassis. The QSFP+ ports accept the 40G transceivers and cables qualified for the FI 6332 and FI 6332-16UP, including QSFP-40G-SR4, QSFP-40G-LR4, QSFP-40G-CSR4, FET-40G and QSFP-H40G-CU and AOC cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Brings the unified fabric into the blade chassis, removing the need for separate chassis management modules
- Managed by Cisco UCS Manager, with the chassis forming a single stateless management domain
- Autoconfiguration synchronises firmware between the fabric extender and the fabric interconnect
- Unified, lossless fabric carries LAN and SAN (FCoE) traffic over one transport
- Automatic failover with an active/active data plane
- Fabric port channel allows fabric ports to be bundled
- Cisco Data Center VM-FEX support
- Monitors chassis environment including power supplies, fans and blades
- QSFP+ ports support copper Twinax, AOC and optical connections, including FET-40G
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: UCS-IOM-2304V2
- External ports: 4 x 40 Gigabit Ethernet, FCoE-capable, QSFP+
- Internal ports: 8 x 40G interfaces via midplane, one per half-width slot
- Hardware forwarding: 960 Gbps
- Aggregate I/O (two modules): up to 320 Gbps per chassis
- Fabric extenders per chassis: up to 2 per UCS 5100 Series chassis
- Forwarding mode: Low-latency cut-through
- VLAN support: up to 1024 VLANs and VSANs
- Jumbo frames: up to 9216 bytes on all ports
- QoS: 802.1p CoS, CoS-based egress queuing, strict-priority egress queuing, WRR port scheduling, 8 hardware queues per port
- High availability: active-active data plane with failover, active-passive management plane
- Lossless Ethernet: PFC, DCBX, IEEE 802.1Qaz bandwidth management
- Standards: IEEE 802.1p, 802.1Q, 802.3, 802.3ad (LACP), 802.3ba (40GbE), 802.3x pause
- Software requirement: Cisco UCS Manager 4.0(4) or later
- Dimensions (H x W x D): 7.64 x 1.36 x 7.2 in (19.4 x 3.54 cm)
- Weight: 2.8 lb (1.134 kg)
- Operating temperature: 32 to 104 F (0 to 40 C)
- Non-operating temperature: -40 to 158 F (-40 to 70 C)
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 10,000 ft (0 to 3000 m)
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943
- EMC emissions: 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, ICES003 Class A
FAQs
Q: Can the UCS-IOM-2304V2 be mixed with the original UCS-IOM-2304?
A: No. The V2 module cannot be mixed with the original UCS-IOM-2304 in the same chassis, so both fabric extenders in a chassis need to be the same model.
Q: Which software version does it need?
A: It requires Cisco UCS Manager 4.0(4) or later. It is managed through UCS Manager and the connected UCS 6300 Series Fabric Interconnect, with no separate licence listed.
Q: Which fabric interconnects does it connect to?
A: It works with the UCS 6300 Series Fabric Interconnects in a UCS 5108 chassis. The 40G transceivers and cables qualified for FI 6332 and FI 6332-16UP are supported.
Q: Which 40G optics and cables work with the QSFP+ ports?
A: Supported transceivers include QSFP-40G-SR-BD, QSFP-40G-CSR4, QSFP-40G-LR4, QSFP-40G-LR4-S, QSFP-40G-SR4, QSFP-40G-SR4-S, FET-40G and QSFP-40/100-SRBD. Supported cables include QSFP-H40G-CU1M/3M/5M, QSFP-H40G-ACU7M and QSFP-H40G-AOC1M/2M/3M/7M/10M/15M.
Q: Does it need its own power supply?
A: No. The module is powered from the UCS 5108 chassis midplane and has no separate power supply.
Q: How much bandwidth does it provide per chassis?
A: Each module provides four 40G uplinks and 960 Gbps hardware forwarding. A redundant pair delivers up to 320 Gbps of I/O per chassis.
