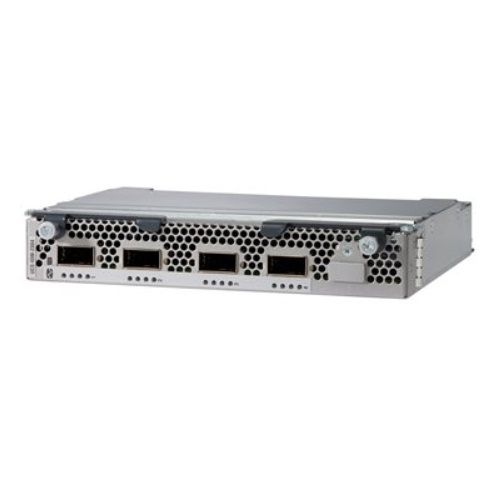

Cisco UCS-IOM-2304-8FET | UCS 2304 Fabric Extender, 4x 40G QSFP+, 8x FET-40G
SKU:UCS-IOM-2304-8FET
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 2304 Fabric Extender is a third-generation I/O module for the Cisco UCS 5108 blade chassis. It brings the unified fabric into the chassis and connects the blade servers to UCS 6300 Series Fabric Interconnects. It does no switching itself, so it is managed as an extension of the fabric interconnect. It suits UCS B-Series deployments in data centre and virtualised environments, typically installed as a redundant pair per chassis.
The module provides four 40 Gigabit Ethernet FCoE-capable QSFP+ uplink ports and eight 40G internal midplane interfaces, one for each half-width blade slot. Hardware forwarding is 960 Gbps, and a chassis fitted with two fabric extenders delivers up to 320 Gbps of I/O. This SKU is bundled with eight FET-40G fabric extender transceivers. It supports jumbo frames up to 9216 bytes and up to 1024 VLANs and VSANs.
It is designed for the UCS 5108 Blade Server Chassis and the UCS 6300 Series Fabric Interconnects, including the FI 6332 and 6332-16UP. The module is powered from the chassis midplane and is managed through Cisco UCS Manager, with firmware kept in step with the fabric interconnect. The UCS-IOM-2304V2 is an updated version and cannot be mixed with this module in the same chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Managed as an extension of the fabric interconnect through Cisco UCS Manager, so no separate chassis management modules are needed
- Autoconfiguration automatically synchronises firmware between the fabric extender and the fabric interconnect
- Unified fabric carries LAN, SAN (FCoE) and management traffic over one link (Cisco SingleConnect)
- Automatic failover with an active-active data plane
- Environmental monitoring of power supplies, fans and blades with the fabric interconnect
- Lossless, deterministic FCoE fabric
- Supports Data Center VM-FEX architecture
- Backward compatible with the Cisco UCS 5108 Blade Server Chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Hardware forwarding: 960 Gbps
- Latency design: Low-latency cut-through
- External ports: 4 x 40 Gigabit Ethernet QSFP+ (FCoE-capable)
- Internal ports: 8 x 40 Gigabit Ethernet (midplane, one per half-width slot)
- Bundled optics: 8 x FET-40G fabric extender transceivers
- I/O per chassis (two fabric extenders): up to 320 Gbps
- VLANs/VSANs: up to 1024
- Jumbo frames: up to 9216 bytes (all ports)
- Flow control: IEEE 802.3x pause frames; PFC (per-priority pause)
- QoS: IEEE 802.1p CoS; CoS-based egress queuing; egress strict-priority queuing; WRR egress scheduling; 8 hardware queues per port
- High availability: up to 2 fabric extenders per UCS 5100 chassis; active-active data plane with failover; active-passive management plane
- Management: integrated into Cisco UCS Manager; firmware synchronised with the fabric interconnect
- Data Center Bridging: DCBX; IEEE 802.1Qaz bandwidth management
- Standards: IEEE 802.1p, 802.1Q, 802.3, 802.3ad (LACP), 802.3ba (40GbE); QSFP+ support
- Dimensions (H x W x D): 7.64 x 1.36 x 7.2 in
- Weight: 2.8 lb (1.134 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m (0 to 10,000 ft)
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943
- EMC: 47CFR Part 15 Class A; AS/NZS CISPR22 Class A; CISPR22 Class A
FAQs
Q: Does the UCS 2304 need a separate licence?
A: No separate licence is stated for the module. It is managed through Cisco UCS Manager, and the port licensing model of the fabric interconnect applies.
Q: How is the fabric extender powered?
A: It is powered from the UCS 5108 chassis midplane, so no separate power supply is needed.
Q: Which fabric interconnects does it work with?
A: It is designed for the UCS 6300 Series Fabric Interconnects, including the FI 6332 and 6332-16UP. The 40G QSFP+ cables and transceivers qualified for those interconnects are supported.
Q: Can it be mixed with the UCS-IOM-2304V2 in one chassis?
A: No. The UCS-IOM-2304V2 is an updated version and the two cannot be mixed in the same chassis. The V2 also requires UCS Manager 4.0(4) or later.
Q: How many fabric extenders can a UCS 5108 chassis use?
A: A UCS 5100 Series chassis takes up to two fabric extenders. Together they provide up to 320 Gbps of I/O per chassis with an active-active data plane and failover.
