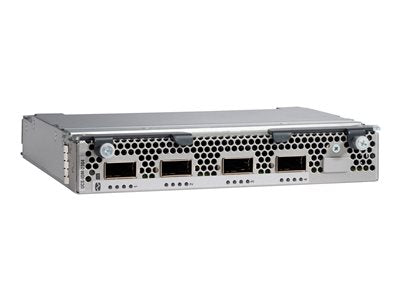

Cisco UCS-IOM-2304 | UCS 2304XP Fabric Extender, 4x 40G QSFP+, 8x 40G
SKU:UCS-IOM-2304
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 2304XP is a third-generation I/O module for the Cisco UCS 5108 blade chassis. It connects the chassis to UCS 6300 Series Fabric Interconnects, and it is typically deployed as a redundant pair so each blade chassis has two fabric paths. It does no switching itself and is managed as an extension of the fabric interconnect through Cisco UCS Manager.
This original 2304XP variant provides four external 40 Gigabit Ethernet QSFP+ fabric uplink ports that are FCoE-capable, plus eight internal 40G interfaces, one per half-width blade slot via the midplane. Hardware forwarding is 960 Gbps, and two fabric extenders in one chassis deliver up to 320 Gbps of I/O. Jumbo frames up to 9216 bytes, PFC and DCBX are supported. No separate licence is listed, as the module is managed as part of the UCS domain.
It works with the UCS 5108 chassis and the FI 6332 and 6332-16UP fabric interconnects. Supported optics include QSFP-40G-SR4, QSFP-40G-CSR4, QSFP-40G-LR4 and FET-40G, along with QSFP-H40G-CU and QSFP-H40G-AOC cables. It should not be mixed with the UCS-IOM-2304V2 in the same chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Managed by Cisco UCS Manager, so the chassis is stateless with no chassis management modules
- Firmware levels automatically synchronised between fabric extenders and fabric interconnects
- Unified fabric carries LAN and SAN (FCoE) traffic on a single lossless 40GbE fabric
- Active-active data plane with automatic failover between the two fabric extenders
- Cisco VM-FEX gives consistent visibility across physical and virtual environments
- Fabric port channel allows fabric uplink ports to be bundled
- Cisco SingleConnect unifies LAN, SAN and management on one link
- Environmental monitoring of chassis power supplies, fans and blades
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: UCS-IOM-2304
- Ordering description: Cisco IOM 2304XP I/O Module (4 External, 8 Internal 40Gb Ports)
- External ports: 4 x 40 Gigabit Ethernet FCoE-capable QSFP+
- Internal interfaces: 8 x 40G, one per half-width chassis slot via midplane
- Hardware forwarding: 960 Gbps
- I/O per chassis: up to 320 Gbps with two fabric extenders
- Chassis: Cisco UCS 5108, up to 2 per chassis
- Compatible fabric interconnects: UCS 6300 Series (FI 6332, 6332-16UP)
- Latency: low-latency cut-through design
- VLANs: IEEE 802.1Q trunks, up to 1024 VLANs and VSANs
- Jumbo frames: all ports, up to 9216 bytes
- Flow control: IEEE 802.3x pause, PFC, DCBX
- QoS: 802.1p CoS, 8 hardware queues per port, strict-priority and WRR scheduling
- Standards: IEEE 802.1p, 802.1Q, 802.3, 802.3ad, 802.3ba, 802.1Qaz
- Dimensions (H x W x D): 7.64 x 1.36 x 7.2 in (approx. 19.4 x 3.45 x 18.3 cm)
- Weight: 2.8 lb (1.134 kg)
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m
FAQs
Q: Does the UCS 2304XP need a separate licence?
A: No separate licence is listed. It is managed through Cisco UCS Manager as part of the UCS domain.
Q: Which chassis and fabric interconnects does it work with?
A: It fits the Cisco UCS 5108 chassis, with up to two per chassis, and connects to UCS 6300 Series Fabric Interconnects such as the FI 6332 and 6332-16UP.
Q: Which optics and cables work with the uplink ports?
A: Supported 40G transceivers include QSFP-40G-SR4, QSFP-40G-SR4-S, QSFP-40G-CSR4, QSFP-40G-LR4, QSFP-40G-LR4-S, QSFP-40G-SR-BD, QSFP-40/100-SRBD and FET-40G. Supported cables are QSFP-H40G-CU1M/3M/5M, QSFP-H40G-ACU7M and QSFP-H40G-AOC1M to 15M.
Q: How does the 2304XP differ from the UCS-IOM-2304V2?
A: This is the original 2304XP. The V2 requires UCS Manager 4.0(4) or later, and the two should not be mixed in the same chassis.
Q: How much bandwidth does it provide per chassis?
A: Each module offers four 40G uplinks and 960 Gbps of hardware forwarding, giving up to 320 Gbps of I/O per chassis with two fabric extenders installed.
