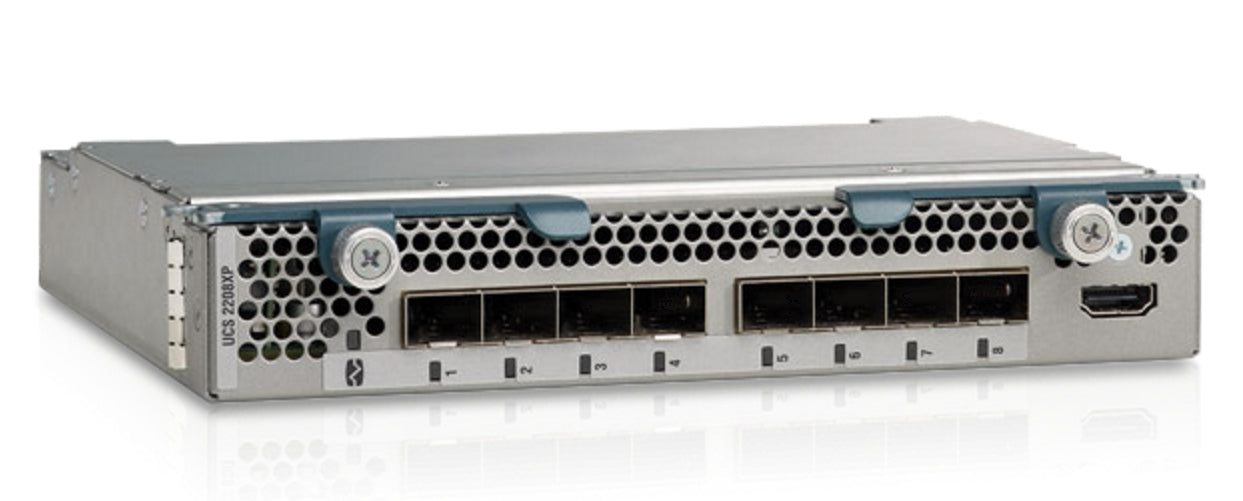

Cisco UCS-IOM-2208XP | UCS 2200 I/O Module, 8x 10G External, 32x 10G Internal

SKU:UCS-IOM-2208XP

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 2208XP is a second-generation Cisco UCS 2200 Series fabric extender, also called an I/O module (IOM), for the UCS 5108 blade server chassis. It links the blade slots to the fabric interconnect, carrying Ethernet and FCoE traffic over a single 10GbE connection so cabling and management stay simple. It is normally deployed as a redundant pair in a unified data centre fabric.

This base IOM provides eight 10GbE FCoE-capable Enhanced SFP+ external ports to the fabric interconnect and thirty-two 10GbE internal midplane ports to the half-width blade slots. Forwarding performance is 640 Gbps, and a redundant pair gives up to 160 Gbps of I/O per chassis. It is the base module without bundled FET optics. It is powered from the chassis midplane and has no separate licence, as it is managed through UCS Manager on the connected fabric interconnect.

It installs in an IOM slot of the UCS 5108 chassis and connects to UCS 6100 and 6200 Series Fabric Interconnects using SFP+ Twinax for short runs or SFP+ optics for longer distances. It pairs with VIC 1240, 1340 and 1380 adapters in B-Series blades.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Second-generation IOM sharing the form factor of the UCS 2100 Series
- Extends the I/O fabric between UCS 6100/6200 Series Fabric Interconnects and the UCS 5108 chassis
- Carries Ethernet and FCoE traffic over a single 10GbE connection, simplifying cabling and management
- Supports VLANs, Weighted Round Robin queuing, DCBX and priority-based flow control
- Supports high availability when deployed as a redundant pair
- Works with the fabric interconnect to manage chassis power supplies, fans and blades
- Connects using SFP+ Twinax for short distances or SFP+ optics for longer runs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- External ports: 8 x 10 Gigabit Ethernet, FCoE-capable, Enhanced SFP+
- Internal (midplane) ports: 32 x 10 Gigabit Ethernet
- I/O per chassis (redundant pair): up to 160 Gbps
- Forwarding performance: 640 Gbps
- Form factor: Plug-in module for UCS 5108 chassis IOM slot
- Dimensions (H x W x D): 7.64 x 1.36 x 7.2 in
- Weight: 2.5 lb (1.134 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m (0 to 10,000 ft)
- Standards: IEEE 802.3, 802.1Q, 802.1p, 802.3x, 802.3ad (LACP), 802.3ae
- Power: supplied from the UCS 5108 chassis midplane
- Status indicators: link activity and status

FAQs

Q: Does the UCS 2208XP need a separate licence?
A: No. The IOM itself has no separate licence. It is managed through UCS Manager on the connected fabric interconnect, whose port licences apply.

Q: How is the module powered?
A: It draws power from the UCS 5108 chassis midplane, so it needs no separate power supply.

Q: Which chassis and fabric interconnects does it work with?
A: It installs in the UCS 5108 Blade Server Chassis and connects to UCS 6100 and 6200 Series Fabric Interconnects.

Q: What cabling can I use on the external ports?
A: The eight SFP+ ports accept 10GbE SFP+ Twinax for short distances or SFP+ optics for longer runs to the fabric interconnect.

Q: How does this differ from the UCS-IOM2208-16FET bundle?
A: This is the base IOM with 8 external and 32 internal 10G ports. The UCS-IOM2208-16FET bundle adds 16 Fabric Extender Transceivers.
