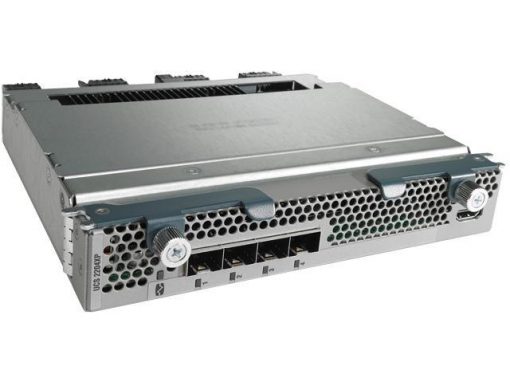

Cisco UCS-IOM-2204XP | UCS 2200 Fabric Extender, 4x 10G SFP+ Uplinks
SKU:UCS-IOM-2204XP
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 2204XP is a second-generation I/O module from the Cisco UCS 2200 Series Fabric Extenders. It fits the back of a UCS 5100 Series blade chassis and brings the unified fabric of LAN, SAN and management traffic into the chassis. It does no switching of its own and is managed as an extension of the connected fabric interconnect through Cisco UCS Manager. It suits data centre blade deployments that want fewer cables and a single management domain.
The module provides four 10 Gigabit Ethernet FCoE-capable SFP+ uplink ports to the fabric interconnect and sixteen 10GbE internal midplane ports, one per half-width blade slot. A redundant pair gives up to 80 Gbps of I/O per chassis, which is the point of difference from the UCS-IOM-2208XP, which has eight uplinks and 32 internal ports. Hardware forwarding is 640 Gbps with low-latency cut-through switching, up to 1024 VLANs and VSANs, jumbo frames to 9216 bytes and eight hardware queues per port.
It works with the UCS 5100 Series chassis, including the 5108, with up to two modules per chassis. Uplink connections support SFP+ Twinax copper, FET, SR and LR optics. It connects to Cisco UCS 6100 and 6200 Series Fabric Interconnects. The module is hot-swappable and draws power from the chassis midplane.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Brings the unified fabric (LAN, SAN, management) into the blade chassis
- Managed by Cisco UCS Manager, so no chassis management modules are needed
- Autoconfiguration synchronises firmware between the fabric extender and the fabric interconnect
- Active-active data plane with automatic failover
- Lossless fabric with priority flow control for unified LAN and SAN traffic
- Cisco VM-FEX support
- Fabric PortChannel to bundle fabric ports
- Environmental monitoring of the chassis power supplies, fans and blades
- Hot-swappable and backward-compatible with the UCS 5108 Blade Server Chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- External uplink ports: 4 x 10 Gigabit Ethernet, FCoE-capable, SFP+
- Internal (midplane) ports: 16 x 10 Gigabit Ethernet, one per half-width blade slot
- I/O bandwidth: up to 80 Gbps per chassis with two fabric extenders
- Hardware forwarding: 640 Gbps
- Switching design: low-latency cut-through
- VLANs: up to 1024 VLANs and VSANs
- Jumbo frames: up to 9216 bytes on all ports
- Hardware queues: 8 per port
- QoS: 802.1p CoS, CoS-based egress queuing, egress strict-priority queuing, egress port-based WRR scheduling
- Fabric extenders per chassis: up to 2 per UCS 5100 Series chassis
- High availability: active-active data plane with failover, active-passive management plane
- Unified fabric: PFC, DCBX, IEEE 802.1Qaz bandwidth management
- Standards: IEEE 802.1p, 802.1Q, 802.3, 802.3ad (LACP), 802.3ae, SFP+ (SFF 8431)
- Supported cabling: SFP+ copper Twinax 1/3/5 m, SFP+ FET 25/100 m on MM OM2/OM3/OM4, SFP+ SR 82/300 m on MM, SFP+ LR over SMF
- Power per SFP+ port: approx. 0.1 W for Twinax copper, 1 W for optical
- Dimensions (H x W x D): 7.64 x 1.36 x 7.2 in
- Weight: 2.5 lb (1.134 kg)
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m
FAQs
Q: Does the UCS 2204XP need a separate licence?
A: No separate licence is listed for the module. It is managed through Cisco UCS Manager on the connected fabric interconnect.
Q: How is the UCS 2204XP powered?
A: It is powered from the UCS 5100 Series chassis midplane, so it has no power input of its own.
Q: Which chassis and fabric interconnects does it work with?
A: It fits the UCS 5100 Series blade chassis, including the 5108, with up to two modules per chassis. It connects to Cisco UCS 6100 and 6200 Series Fabric Interconnects.
Q: What uplink connections are supported?
A: The four SFP+ uplinks support Twinax copper cables in 1, 3 and 5 m lengths, as well as FET, SR and LR optics.
Q: How does it differ from the UCS-IOM-2208XP?
A: The 2204XP has 4 x 10G SFP+ uplinks and 16 internal 10G ports for up to 80 Gbps per chassis. The UCS-IOM-2208XP has 8 uplinks and 32 internal ports.
