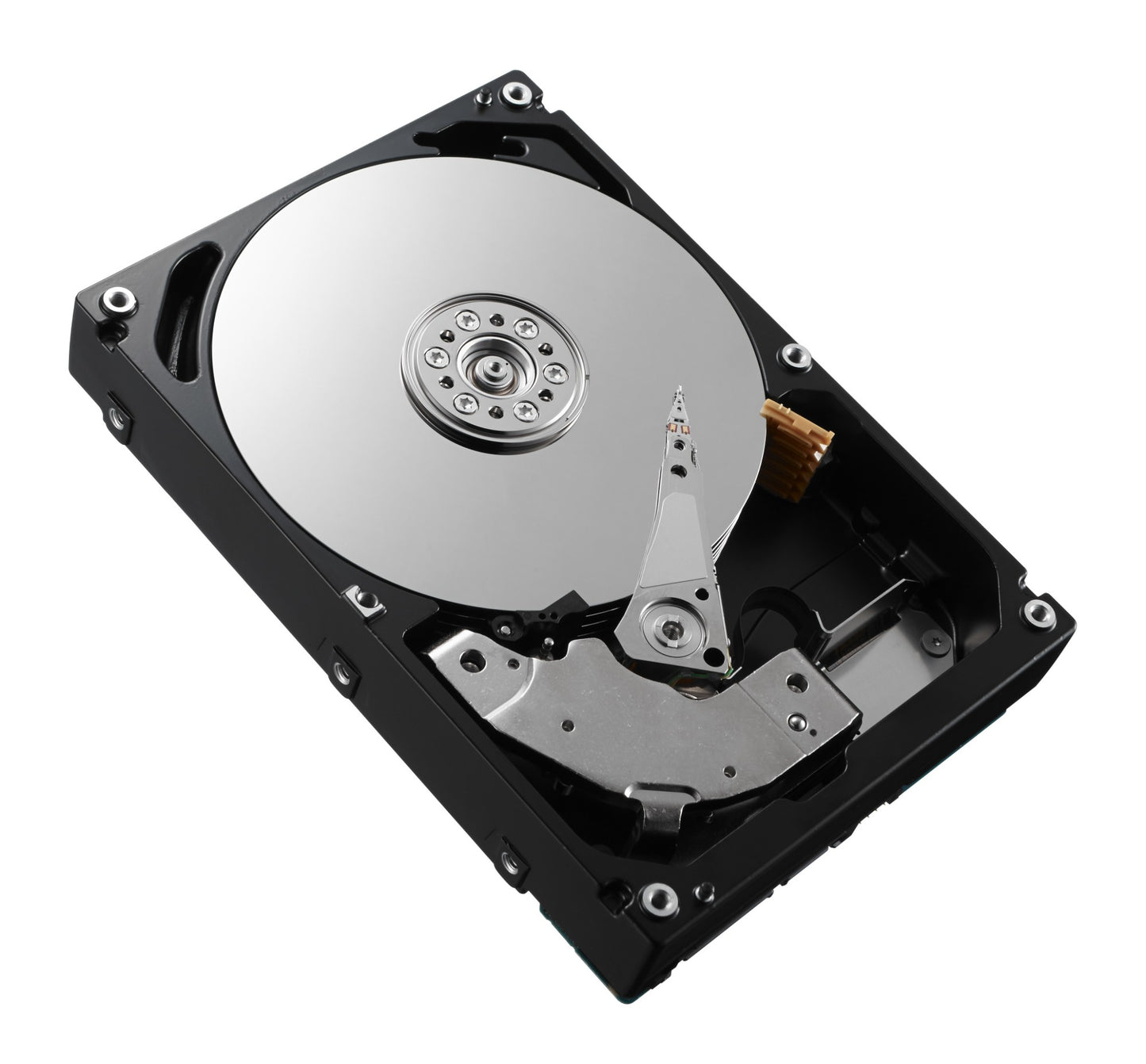

Cisco UCS-HD22TW7KL4KN | 22TB 12G SAS 7.2K RPM 3.5in 4Kn Hard Drive
SKU:UCS-HD22TW7KL4KN
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 22TB 3.5-inch (LFF) enterprise SAS hard drive is built for Cisco UCS C-Series rack servers. It suits high-capacity bulk and nearline storage in servers such as the UCS C240 M6 LFF and C220 M5 LFF.
The drive runs at 7,200 RPM over a 12Gb/s SAS interface and uses a 4K native (4Kn) sector format. It is the front-load, hot-pluggable sled-mounted version of the 22TB drive, so it fits standard front drive bays. A separate PID, UCS-HD22TW7KL4KM, covers the midplane and top-load bays. Power is supplied by the server drive backplane, so no separate power supply is needed.
On the C240 M6 it is supported by the Cisco M6 12G SAS RAID controller, which offers RAID 0, 1, 10, 5, 6, 50, 60 and JBOD, and by the M6 12G SAS HBA for JBOD. Booting from a 4K sector drive requires UEFI mode, and 4K and 512-byte drives must not be mixed in the same RAID volume.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Enterprise-class 22TB capacity for high-density storage in LFF server bays
- 12Gb/s SAS interface for enterprise connectivity
- 4Kn sector format
- Hot-pluggable sled-mounted carrier
- Supported by the Cisco M6 12G SAS RAID controller and 12G SAS HBA on the C240 M6
- Powered directly from the server drive backplane
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCS-HD22TW7KL4KN
- Drive type: SAS hard disk drive (HDD)
- Capacity: 22 TB
- Form factor: 3.5-inch Large Form Factor (LFF)
- Interface: 12Gb/s SAS
- Spindle speed: 7,200 RPM
- Sector format: 4K native (4Kn)
- Slot type: Front-load drive bay, hot-pluggable sled
- Supported on: Cisco UCS C240 M6 and C220 M5 LFF
- Boot mode requirement: UEFI required for booting from 4K sector drives
- RAID note: do not mix 4K and 512-byte drives in the same RAID volume
- Power: supplied by the server drive backplane
FAQs
Q: Which servers is this drive supported in?
A: It is listed for the Cisco UCS C240 M6 and C220 M5 LFF servers. On the C240 M6 it is supported from release 4.2(3d) and later.
Q: Does it require UEFI boot mode?
A: Yes. Booting from a 4K sector drive requires UEFI mode, and legacy BIOS boot is not supported.
Q: Can I mix it with 512-byte drives in a RAID volume?
A: No. 4K and 512-byte sector drives must not be mixed in the same RAID volume.
Q: How does this differ from UCS-HD22TW7KL4KM?
A: This SKU is the front-load drive. UCS-HD22TW7KL4KM is the midplane and top-load equivalent for midplane bays.
Q: Does it need a separate power connection?
A: No. It is powered from the server drive backplane.
