Cisco

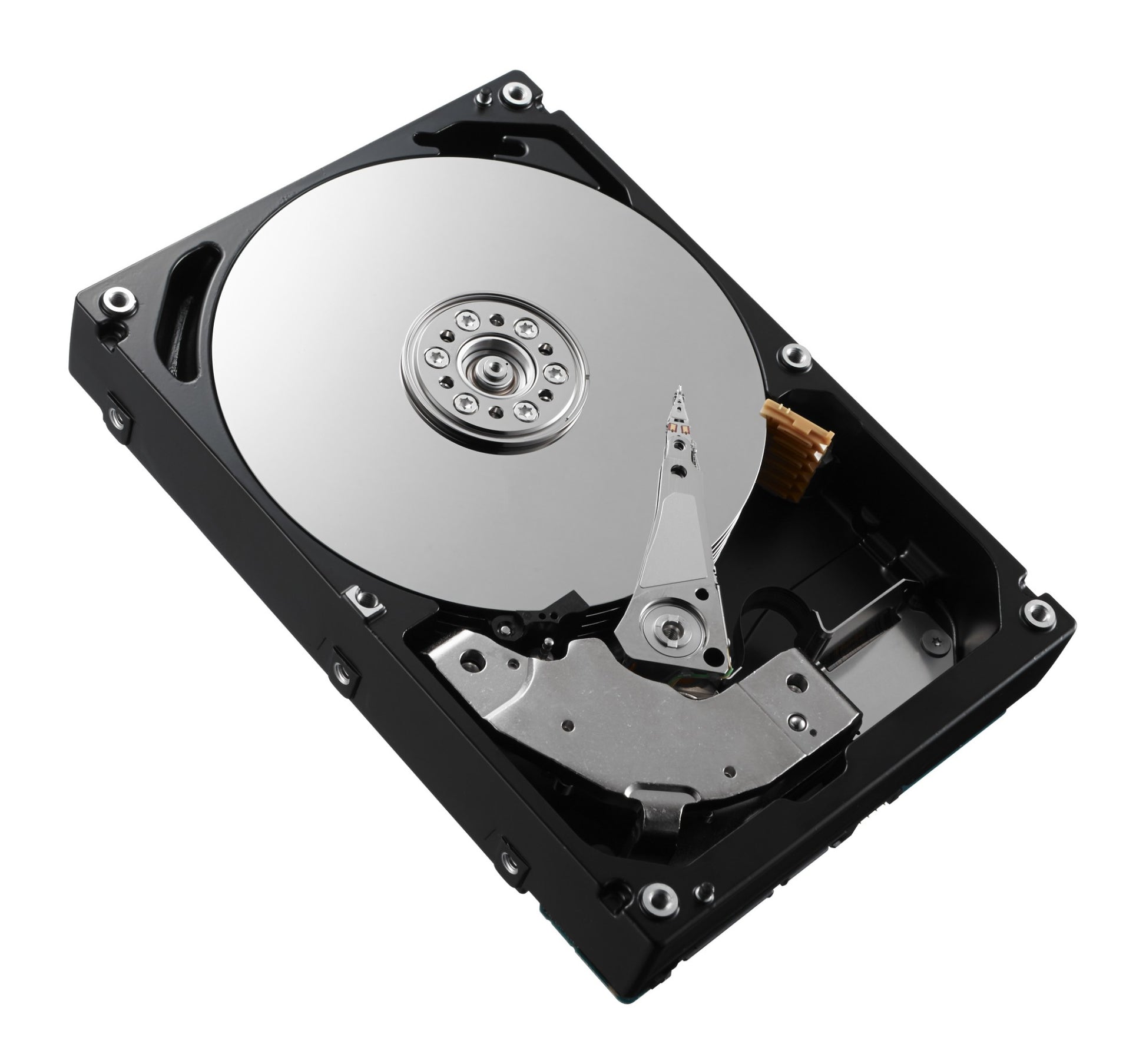

Cisco UCS-HD20TT7KL4KM | UCS C-Series 20TB 12G SAS 7.2K LFF HDD, Mid-plane, 4K

SKU:UCS-HD20TT7KL4KM

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 20TB enterprise hard disk drive is built for Cisco UCS C-Series rack servers, including the C240 M6 LFF. It is a 3.5-inch large form factor, hot-pluggable SAS drive supplied in a Cisco sled, aimed at high-capacity bulk and nearline storage in UCS deployments.

The drive runs at 7.2K RPM over a 12Gb/s SAS interface and uses a 4K sector format (Advanced Format). The KM suffix identifies the mid-plane variant, which is the Toshiba-built option in the UCS-HD20TT7KL4KM range. On the C240 M6 LFF it is fitted with the UCSC-MPSTOM6L-KIT midplane kit, and a front-load sibling (UCS-HD20TT7KL4KN) covers the front bays.

4K sector drives need a supporting operating system such as RHEL 8.2 or later, Windows Server 2016 or later, SLES 15.2 or later, or ESXi 6.7 U3 or later, and UEFI boot mode. 4K and 512-byte sector drives should not be mixed in the same RAID volume. Confirm server support against the Cisco UCS Hardware Compatibility List.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enterprise-class 12G SAS interface for high-capacity nearline storage
- Hot-pluggable, sled-mounted design for easy serviceability
- 4K sector format for high-capacity density
- Qualified by Cisco for UCS C-Series rack servers
- Mid-plane variant for servers with a midplane drive cage
- 20TB capacity per 3.5-inch bay

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Capacity: 20 TB
- Drive type: SAS
- Interface speed: 12Gb/s SAS
- Form factor: 3.5-inch large form factor (LFF)
- Rotational speed: 7.2K RPM
- Sector format: 4K (Advanced Format)
- Hot-pluggable: Yes, supplied in a sled
- Placement: Mid-plane drive (KM variant)
- Midplane kit for C240 M6 LFF: UCSC-MPSTOM6L-KIT
- Product ID: UCS-HD20TT7KL4KM
- Spare PID: UCS-HD20TT7KL4KM=
- Front-load sibling PID: UCS-HD20TT7KL4KN

FAQs

Q: Which Cisco servers does this drive work in?
A: It is listed for the Cisco UCS C240 M6 Rack Server in the LFF configuration. Check the Cisco UCS Hardware Compatibility List for exact support on your server model.

Q: Does it need a midplane kit?
A: Yes. This is the mid-plane variant, and on the C240 M6 LFF it requires the UCSC-MPSTOM6L-KIT midplane kit. The front-load equivalent is UCS-HD20TT7KL4KN.

Q: Which operating systems support the 4K sector format?
A: 4K sector drives need a supporting OS such as CentOS 7.9/8.2 or later, Windows Server 2016/2019 or later, RHEL 7.9/8.2 or later, SLES 15.2 or later, or ESXi 6.7 U3/7.0 U2 or later. UEFI boot mode is required, and legacy boot is not supported.

Q: Can I mix it with 512-byte sector drives in a RAID volume?
A: No. 4K and 512-byte sector drives must not be mixed in the same RAID volume.

Q: What does the KM suffix mean?
A: KM marks the mid-plane drive variant of this 20TB 4K SAS drive. The KN suffix identifies the front-load version.
