Cisco

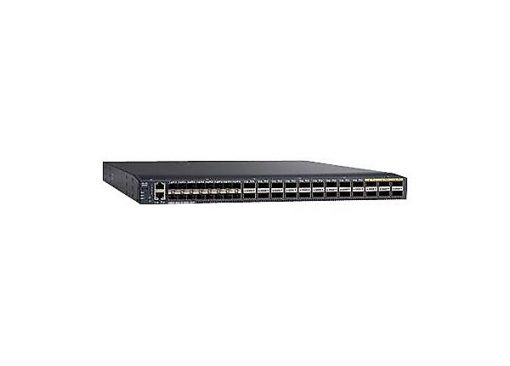

Cisco UCS-FI-6332-U | UCS 6332 32-Port 40G QSFP+ Fabric Interconnect, 1RU

SKU:UCS-FI-6332-U

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6332 is a 1RU fixed-port fabric interconnect from the Cisco UCS 6300 Series. It is the core connectivity and management backbone for a Cisco UCS domain, linking B-Series blades, C-Series rack servers and 5100 chassis into a unified LAN and SAN fabric for the data centre. It runs Cisco UCS Manager and can host it in an active-passive HA cluster.

This SKU provides 32 fixed 40 Gigabit Ethernet and FCoE QSFP+ ports, with 4x10G breakout supported using breakout cables. Switching throughput is 2.56 Tbps with Layer 2 forwarding of 720 Mpps. It supports up to 1024 VLANs and VSANs per interconnect, 32,000 MAC address table entries and jumbo frames up to 9216 bytes. Dedicated 10/100/1000 Mbps management and console ports are provided. This variant has 32 QSFP+ ports, no power supplies and an 8-port licence; additional port licences are needed to activate more of the 32 ports. Power is supplied by two hot-swappable UCS-PSU-6332-AC or UCS-PSU-6332-DC units in 1+1 redundancy.

It works with Cisco 40GBASE QSFP+ optics such as QSFP-40G-SR4, CSR4, LR4 and SR-BiDi, QSFP+ DAC cables and 4x10G breakout cables or AOCs. It pairs with the UCS 2304 and 2200 Series Fabric Extenders in 5100 chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cut-through, low-latency architecture with line-rate 40 GbE
- Unified fabric consolidating LAN and SAN traffic over FCoE
- Hosts and runs Cisco UCS Manager in an active-passive HA cluster
- Fabric extender architecture scales to 20 blade chassis
- Priority Flow Control, DCBX and IEEE 802.1Qaz bandwidth management
- Cisco Data Center VM-FEX virtualisation-aware networking
- Hot-swappable power supplies and fan modules with 1+1 power and N+1 fan redundancy
- Front-to-back cooling for hot and cold aisle designs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Fixed ports: 32 x 40 Gigabit Ethernet / FCoE QSFP+
- Breakout: 4x10G supported with breakout cables
- Switching throughput: 2.56 Tbps
- Layer 2 forwarding: 720 Mpps
- Included licence: 8-port
- Power supplies: none included, UCS-PSU-6332-AC or UCS-PSU-6332-DC
- Fan modules: 2+2
- Management ports: dedicated 10/100/1000 Mbps management and console
- MAC address table entries: 32,000
- VLANs: up to 1024 VLANs and VSANs per interconnect
- Jumbo frames: up to 9216 bytes on all ports
- QoS: eight hardware queues per port
- Transceiver support: 40G QSFP+ only
- AC PSU typical power: 212 W
- AC PSU maximum power: 650 W
- AC PSU input: 100 to 240 VAC, 50 to 60 Hz
- DC PSU input: -40 to -72 VDC
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight (with two PSUs and four fan modules): 9.97 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing

FAQs

Q: Does it include a licence?
A: Yes, this SKU includes an 8-port licence. Additional port licences are needed to activate more of the 32 ports. It is managed through Cisco UCS Manager.

Q: What power supplies does it need?
A: It needs two hot-swappable power supplies for 1+1 redundancy: UCS-PSU-6332-AC for 100 to 240 VAC or UCS-PSU-6332-DC for -48 VDC. Typical AC power draw is 212 W and the maximum is 650 W.

Q: Which optics and cables does it work with?
A: The 32 ports accept 40G QSFP+ modules such as QSFP-40G-SR4, QSFP-40G-CSR4, QSFP-40G-LR4 and QSFP-40/100-SRBD, plus QSFP+ DAC cables. 4x10G breakout cables and AOCs split a port into four 10G links.

Q: How does it differ from the UCS-FI-6332-16UP-U?
A: This model has 32 QSFP+ ports and an 8-port licence. The UCS-FI-6332-16UP-U has 24 QSFP+ ports plus 16 unified ports and a 12-port licence.

Q: What can connect to it?
A: It connects to the UCS 2304 and 2200 Series Fabric Extenders in 5100 chassis, as well as UCS B-Series and C-Series servers.
