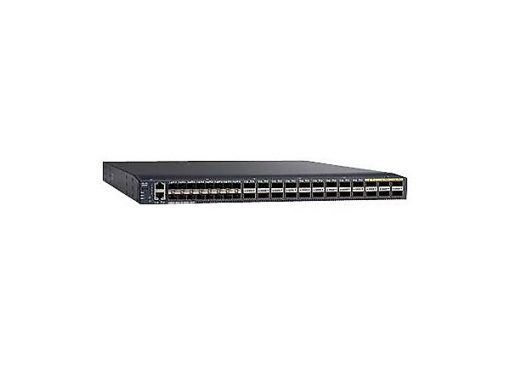

Cisco UCS-FI-6332-16UP | UCS 6300 Fabric Interconnect, 24x 40G QSFP+, 16 UP
SKU:UCS-FI-6332-16UP
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 6332-16UP is a 1RU fabric interconnect from the Cisco UCS 6300 Series. It sits at the core of a Cisco UCS domain, providing unified LAN and SAN connectivity for blade chassis and rack servers, with 10/40 Gigabit Ethernet, FCoE and native Fibre Channel on one platform. It runs Cisco UCS Manager in a highly available active-passive cluster.
The fixed port layout is 24 x 40G QSFP+ Ethernet/FCoE ports plus 16 unified ports, which can be set as 1/10G Ethernet or 4/8/16G Fibre Channel. Throughput is up to 2.43 Tbps with 683 mpps of Layer 2 forwarding, and QSFP+ breakout from 40G to 4x10G is supported on ports 17 to 34. This SKU is the No PSU variant with 4x40G and 8 unified-port licences, and port-based licensing lets capacity be added as needed. Cisco UCS Manager 3.1 or later is required.
It works with SFP+, SFP and QSFP+ optics and cables, including SFP-10G-SR/LR and QSFP-40G-SR4/LR4, and connects to UCS 2200/2304 Fabric Extenders, UCS 5100 chassis and B-Series and C-Series servers. Power is supplied by separate hot-swappable PSUs in a 1+1 arrangement, with 2+2 fan modules for cooling.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate, low-latency, lossless 10/40 Gigabit Ethernet and FCoE with cut-through architecture
- Unified ports configurable as Ethernet/FCoE or native 4/8/16G Fibre Channel for direct SAN connection
- Hosts and runs Cisco UCS Manager in a highly available active-passive cluster
- Cisco Data Center VM-FEX support for policy-based virtual machine connectivity
- Priority Flow Control, DCBX and IEEE 802.1Qaz bandwidth management
- Hot-swappable power supplies, fan modules and expansion modules
- Front-to-back cooling for hot/cold aisle designs
- Port-based licensing to add capacity as needed
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1RU
- Fixed ports: 40 fixed 10 and 40 Gigabit Ethernet and FCoE ports
- Port breakdown: 24 x 40G QSFP+ Ethernet/FCoE plus 16 unified ports (1/10G Ethernet or 4/8/16G Fibre Channel)
- Throughput: 2.43 Tbps
- Layer 2 hardware forwarding: 683 mpps
- MAC address table entries: 32,000
- VLANs/VSANs: up to 1024 per interconnect
- Jumbo frames: up to 9216 bytes on all ports
- QoS: 8 hardware queues per port
- Breakout (40G to 4x10G) ports: ports 17 to 34
- Fan modules: 2+2 (N+1 fan redundancy)
- Power redundancy: 1+1, hot-swappable PSUs, chassis without PSU
- Management: redundant 10/100/1000 management and console ports, managed through Cisco UCS Manager
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight (with two power supplies and four fan modules): 10.25 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing
- Software requirement: Cisco UCS Manager 3.1 or later
- Licences: 4x40G + 8 unified-port licences
FAQs
Q: Does this fabric interconnect need port licences?
A: Yes, port-based licensing applies. This SKU includes 4x40G and 8 unified-port licences, and further capacity can be added with additional port licences.
Q: What power supplies does it use?
A: It uses separate hot-swappable PSUs in a 1+1 arrangement, either UCS-PSU-6332-AC (100-240 VAC) or UCS-PSU-6332-DC (-48 VDC). Fans are ordered as UCS-FAN-6332 (2+2 modules).
Q: Which optics and cables does it work with?
A: It supports SFP+/SFP and QSFP+ optics and cables, including SFP-10G-SR/LR, QSFP-40G-SR4/LR4/SR-BD, GLC-T, GLC-SX-MMD and 4/8/16G Fibre Channel SFP+ modules. QSFP+ to 4xSFP+ breakout cables and AOCs are also supported.
Q: Which software release is required?
A: Cisco UCS Manager 3.1 or later is required, and all management is performed through UCS Manager.
Q: Can the 40G ports be used as 4x10G?
A: Yes. QSFP+ breakout from 40G to 4x10G is supported on ports 17 to 34.
