Cisco

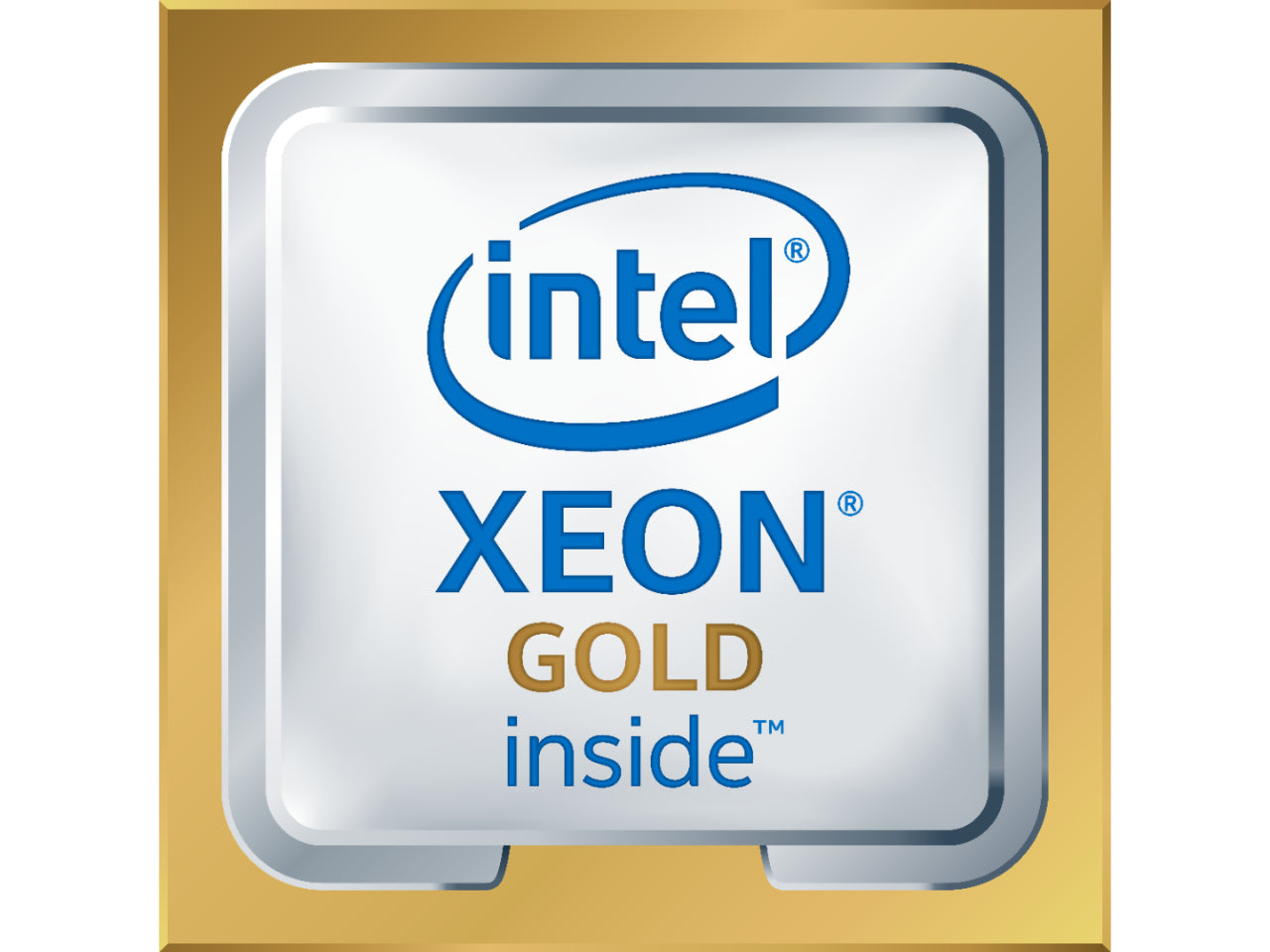

Cisco UCS-CPU-I5218 | Xeon Gold 5218 Server CPU, 16C, 2.3GHz, 125W, 22MB

SKU:UCS-CPU-I5218

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Intel Xeon Gold 5218 is a 2nd Gen Xeon Scalable (Cascade Lake) processor orderable for Cisco UCS M5 servers. It suits virtualisation, Microsoft Azure Stack HCI, Splunk, data protection and general data-centre compute where a balance of core count and clock speed is needed.

This processor has 16 cores and 32 threads with a 2.3 GHz base clock, up to 3.9 GHz Max Turbo and 22 MB of cache. The TDP is 125 W. It provides six DDR4-2666 memory channels with up to 1 TB of memory, supports ECC memory and Intel Optane Persistent Memory, and offers 48 PCIe 3.0 lanes and two UPI links. These figures separate it from the I5218B (2933 MHz memory), the I5218N (105 W) and the I5218R (2.1 GHz, 20 cores).

It fits the FCLGA3647 socket and is listed as a CPU option on Cisco UCS M5 servers including the C240 M5L, C480 ML M5 and C220 M5. Check each server's specification sheet for its supported CPU list, and make sure the host server's power supplies and cooling can handle 125 W per processor.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Intel Deep Learning Boost (DL Boost) on the CPU
- Intel Turbo Boost Technology 2.0 and Hyper-Threading
- Intel Virtualization Technology (VT-x, VT-d, EPT)
- Intel AES New Instructions, Trusted Execution Technology and Run Sure Technology
- Intel Resource Director Technology (RDT) and Volume Management Device (VMD)
- Supports Intel Optane Persistent Memory and ECC memory
- AVX-512 with 1 FMA unit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product collection: 2nd Gen Intel Xeon Scalable Processors
- Code name: Cascade Lake
- Processor number: 5218
- Lithography: 14 nm
- Cores / threads: 16 / 32
- Base frequency: 2.30 GHz
- Max Turbo frequency: 3.90 GHz
- Cache: 22 MB
- TDP: 125 W
- Memory type: DDR4-2666
- Memory channels: 6
- Max memory size: 1 TB
- ECC memory: Supported
- Intel Optane Persistent Memory: Supported
- UPI links: 2
- PCI Express: 3.0, up to 48 lanes
- Socket: FCLGA3647
- Scalability: 4S
- TCASE: 87 C
- Package size: 76.0mm x 56.5mm
- Instruction set extensions: Intel SSE4.2, AVX, AVX2, AVX-512

FAQs

Q: Which Cisco servers does this CPU suit?
A: It is a CPU option on Cisco UCS M5 servers, including the C240 M5L, C480 ML M5 and C220 M5 rack servers. Check each server's specification sheet for its supported CPU list.

Q: What power and cooling does it need?
A: Each processor has a 125 W TDP. The host server's power supplies and cooling must be able to support that load.

Q: What memory does it support?
A: It supports DDR4-2666 DIMMs across six memory channels, with up to 1 TB of memory. ECC memory and Intel Optane Persistent Memory are also supported.

Q: How does it differ from the I5218B, I5218N and I5218R?
A: This UCS-CPU-I5218 runs 2.3 GHz, 16 cores, 125 W and DDR4-2666. The I5218B supports 2933 MHz memory, the I5218N is a 105 W part, and the I5218R is 2.1 GHz with 20 cores.

Q: Which socket does it use?
A: It uses the FCLGA3647 (LGA3647) socket, which is the socket used by Cisco UCS M5 servers.
