Cisco

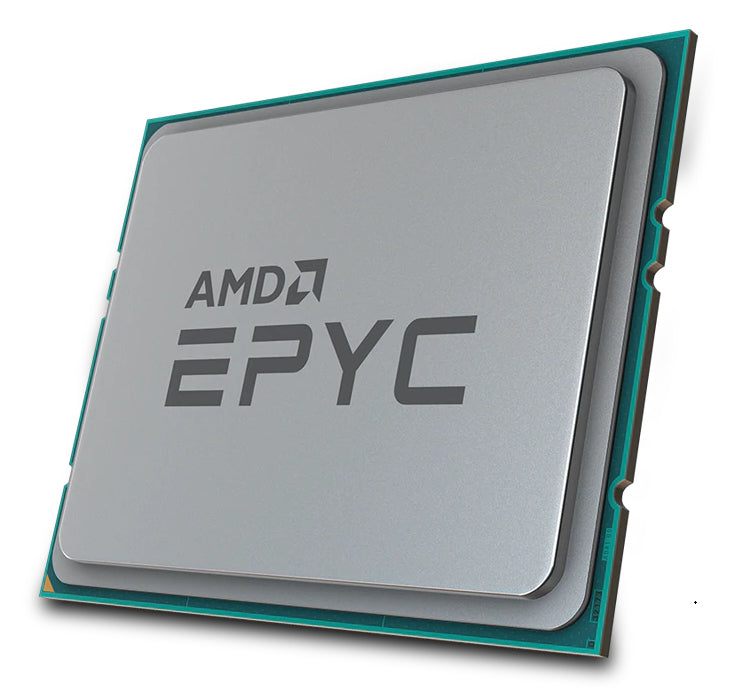

Cisco UCS-CPU-A9534 | EPYC 9534 64-Core 2.45GHz CPU, 280W, 256MB L3

SKU:UCS-CPU-A9534

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AMD EPYC 9534 is a 4th Gen EPYC 9004 Series server processor supplied under the Cisco UCS-CPU-A9534 part number for Cisco UCS servers such as the C225 M8. It suits compute-dense virtualisation, database, HPC and general data-centre workloads on AMD-based UCS rack and modular platforms.

The processor has 64 cores and 128 threads at a 2.45 GHz base clock, with boost up to 3.7 GHz and a 3.55 GHz all-core boost. It carries 256 MB of L3 cache and a 280 W default TDP, configurable between 240 W and 300 W. Memory support covers 12 channels of DDR5 at up to 4800 MT/s, giving 460.8 GB/s of bandwidth per socket, alongside PCIe 5.0 with 128 lanes.

The CPU uses the SP5 socket and is powered from the host server. The Cisco UCS C225 M8 lists it in a single-socket configuration, while the X215c M8 compute node uses the equivalent UCSX-CPU-A9534 part number.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 4th Gen AMD EPYC (Zen 4) architecture with 64 cores and 128 threads
- 12 DDR5 memory channels per CPU for high memory bandwidth
- PCIe Gen 5 connectivity with 128 lanes
- Configurable TDP range of 240-300 W to balance power and performance
- Boost clock up to 3.7 GHz with 3.55 GHz all-core boost
- Supports both 1-socket and 2-socket platforms at the AMD level

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCS-CPU-A9534
- Processor: AMD EPYC 9534
- Series: EPYC 9004 Series (4th Gen, Zen 4)
- Cores: 64
- Threads: 128
- Base clock: 2.45 GHz
- Max boost clock: up to 3.7 GHz
- All-core boost: 3.55 GHz
- L3 cache: 256 MB
- Default TDP: 280 W
- Configurable TDP: 240-300 W
- Socket: SP5
- Memory type: DDR5
- Memory channels: 12
- Memory speed: up to 4800 MT/s
- Memory bandwidth per socket: 460.8 GB/s
- PCI Express: PCIe 5.0 x128
- Launch date: 11/10/2022

FAQs

Q: Which Cisco UCS servers does this processor fit?
A: It is orderable for the Cisco UCS C225 M8 rack server in a single-socket configuration. The X215c M8 compute node uses the equivalent UCSX-CPU-A9534 part number.

Q: What memory does it support?
A: It supports 12 channels of DDR5 at up to 4800 MT/s. On the Cisco platforms it uses DDR5 RDIMMs at 1.1 V with one DIMM per channel.

Q: How much power does it draw?
A: The default TDP is 280 W, configurable between 240 W and 300 W. It is powered from the host server and needs no separate power supply.

Q: Which socket does it use?
A: It uses the SP5 socket, found on AMD EPYC 9004 Series platforms.

Q: Does it need a licence?
A: No. It is a hardware processor and has no licence or subscription requirement.
