Cisco UCS-2304V2-8FET | UCS 2304V2 I/O Module, 4x 40G QSFP+, 8x FET Optics
SKU:UCS-2304V2-8FET
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 2304V2 is a third-generation I/O module (fabric extender) for the UCS 5108 blade chassis, part of the UCS 2300 Series. It links the chassis to UCS 6300 Series Fabric Interconnects (FI 6332 and 6332-16UP) in a Cisco UCS Manager-managed domain, and it is typically deployed as a redundant pair per chassis.

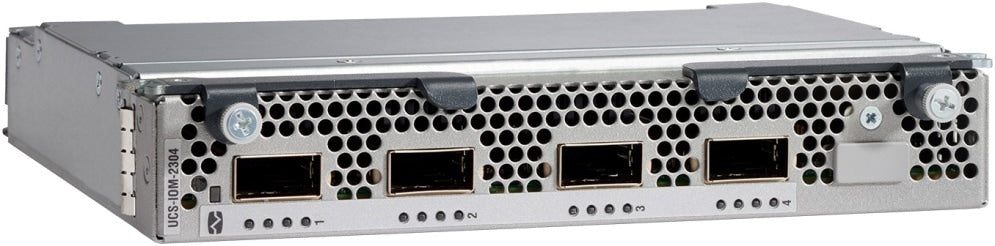

It provides four 40 Gigabit Ethernet FCoE-capable QSFP+ uplinks and eight internal 40G connections, one to each half-width blade slot. Hardware forwarding is 960 Gbps, and a redundant pair delivers up to 320 Gbps of I/O per chassis. The design is low-latency cut-through with up to 1024 VLANs and VSANs, jumbo frames up to 9216 bytes, and eight hardware queues per port. This SKU is the V2 module bundled with 8 FET optics for the link between the fabric extender and the fabric interconnect.
The module requires Cisco UCS Manager 4.0(4) or later and cannot be mixed with the original UCS-IOM-2304 in the same chassis. Datasheet-listed 40G optics include FET-40G, QSFP-40G-SR4, QSFP-40G-CSR4 and QSFP-40G-LR4, along with QSFP-H40G-CU and QSFP-H40G-AOC cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Managed through Cisco UCS Manager, so no separate chassis management modules are needed
- Automatic firmware synchronisation between the fabric extender and the fabric interconnect
- Unified fabric carrying LAN and SAN traffic over lossless FCoE
- Active-active data plane with automatic failover
- Cisco Data Center VM-FEX support
- Fabric port-channel support
- SingleConnect technology unifies LAN, SAN and management over one link
- FET optics provide cost-effective connections to the fabric interconnect
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Fabric extender / I/O module for the UCS 5108 blade chassis
- External ports: 4x 40 Gigabit Ethernet FCoE-capable QSFP+
- Internal ports: 8x 40G, one to each half-width blade slot
- Hardware forwarding: 960 Gbps
- Bandwidth per chassis: up to 320 Gbps with two fabric extenders
- Optics: 8x Cisco FET (Fabric Extender Transceiver)
- Switching design: Low-latency cut-through
- VLAN support: Up to 1024 VLANs and VSANs
- Jumbo frames: Up to 9216 bytes on all ports
- Flow control: IEEE 802.3x pause frames and Priority Flow Control (PFC)
- QoS: 802.1p CoS, CoS-based egress queuing, strict-priority queuing, WRR port scheduling, 8 hardware queues per port
- High availability: Up to 2 FEX per chassis, active-active data plane, active-passive management plane
- Standards: IEEE 802.1p, 802.1Q, 802.1Qaz, 802.3, 802.3ad (LACP), 802.3ba (40GbE), DCBX
- Dimensions (H x W x D): 7.64 x 1.36 x 7.2 in
- Weight: 2.8 lb (1.134 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m (10,000 ft)
- Software requirement: Cisco UCS Manager 4.0(4) or later
FAQs
Q: Does the UCS 2304V2 need a separate licence?
A: No separate licence is stated for the module. It is managed through Cisco UCS Manager 4.0(4) or later and the connected fabric interconnect.
Q: Which fabric interconnects does it work with?
A: It works with UCS 6300 Series Fabric Interconnects, specifically the FI 6332 and 6332-16UP, in a UCS 5108 chassis.
Q: Can it be mixed with the original UCS-IOM-2304 in one chassis?
A: No. The UCS-IOM-2304V2 cannot be mixed with the UCS-IOM-2304 in the same chassis.
Q: What is the maximum bandwidth per chassis?
A: A redundant pair of fabric extenders provides up to 320 Gbps of I/O per chassis, with each module offering 960 Gbps of hardware forwarding.
Q: How is it powered?
A: It draws power from the UCS 5108 chassis midplane, so no separate power connection is required.
Q: Which optics and cables suit the 40G QSFP+ ports?
A: Datasheet-listed optics include FET-40G, QSFP-40G-SR4, QSFP-40G-CSR4, QSFP-40G-LR4 and QSFP-40G-SR-BD. Listed cables include QSFP-H40G-CU1M/3M/5M, QSFP-H40G-ACU7M and QSFP-H40G-AOC1M to 15M.
