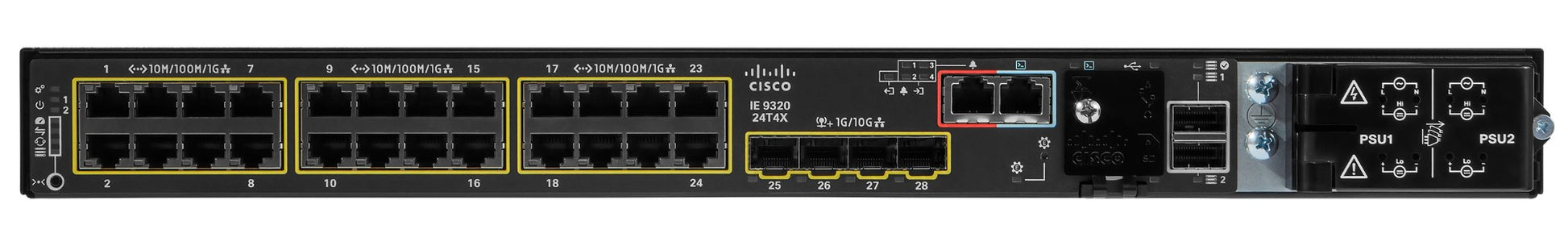

• Cisco IE-9320-24T4X-A switch with 24x 1G ports and 4x 10G uplinks
1 1

Cisco

Cisco IE-9320-24T4X-A | Catalyst IE9300 Rugged 24-Port Gigabit Industrial Switch, 4x 10G SFP+

IE-9320-24T4X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-9320-24T4X-A is a rugged industrial Ethernet switch delivering high-speed connectivity in harsh environments. Featuring 24 Gigabit copper ports and four 10G SFP+ uplinks, this 1RU switch is built for manufacturing, energy, transportation, and smart city deployments. Powered by Cisco IOS XE with Network Advantage license, it provides advanced Layer 3 routing, built-in security with MACsec-256 and TrustSec, and operates reliably in extreme temperatures from -40°C to 75°C.

Features

Cisco IOS XE operating system with advanced Layer 2 and Layer 3 switching capabilities
- Network Advantage license providing full routing protocols (OSPF, EIGRP, BGP, IS-IS)
- Advanced security: Secure Boot, image signing, Cisco Trust Anchor module, MACsec-256 encryption
- TrustSec segmentation for micro-segmentation and policy-based access control
- Full Flexible NetFlow (FNF) for deep traffic visibility and threat analysis
- Cisco Cyber Vision integration for OT asset monitoring and anomaly detection
- StackWise technology for high-availability stacking and simplified management
- Industrial resilience: REP, PRP, PROFINET MRP, HSR ring redundancy
- Dual ring design with integrated redundancy protocols for fault tolerance
- Support for industrial automation protocols: EtherNet/IP (CIP), PROFINET
- Quality of Service (QoS) with 8 egress queues for traffic prioritization
- IPv4 and IPv6 support with dual-stack capabilities
- 802.1x authentication, DHCP snooping, Dynamic ARP Inspection
- VLAN support (up to 1,024 active VLANs), STP/RSTP/MSTP spanning tree protocols
- Fanless design for silent operation in noise-sensitive environments
- Dual AC/DC power inputs with redundant power supply support
- Cisco DNA Center integration for centralized automation and analytics
- Modern WebUI for intuitive local management and configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 28 ports (24x 10/100/1000M RJ45 downlinks, 4x 1/10G SFP+ uplinks, 2x StackWise stacking ports)
- Switching Capacity: 128 Gbps full-duplex
- Forwarding Rate: 95 Mpps (wire-speed, non-blocking)
- MAC Address Table: 16,000 entries
- VLAN Support: 4,096 VLAN IDs (up to 1,024 active)
- Memory: 4 GB DRAM, 8 GB Flash
- Software License: Network Advantage (perpetual)
- Layer 3 Routing: Supports OSPF, EIGRP, BGP, IS-IS, static routing, IPv4/IPv6
- Power Consumption: 35W (chassis only, excluding SFP modules)
- Power Input: Dual AC/DC power inputs for redundancy
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- Form Factor: 1RU rack-mountable, fanless design
- Dimensions: 1.72 x 17.5 x 14.0 in (4.37 x 44.45 x 35.56 cm)
- Weight: 9.5 lb (4.3 kg)
- Management: CLI, SNMP, HTTP/HTTPS, NETCONF, RESTCONF, Cisco DNA Center, WebUI
- Certifications: IEC/ANSI/ISA-62443-4-1, 62443-4-2, NEMA TS-2, EN 50155, IP30

FAQs

Q: What environments is the IE-9320-24T4X-A designed for?
A: This rugged industrial switch is engineered for harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. It operates reliably in extreme temperatures from -40°C to 75°C and withstands vibration, shock, and electrical noise common in industrial settings.

Q: What software license is included with the IE-9320-24T4X-A?
A: The switch includes a perpetual Cisco Network Advantage license, providing advanced Layer 3 routing, security features like MACsec-256 and TrustSec, and full automation capabilities. Orders placed after August 23, 2025 also include a 3-year limited term license for Cisco Cyber Vision (24 endpoints) and Secure Equipment Access.

Q: Does this switch support Power over Ethernet?
A: No, the IE-9320-24T4X-A does not support PoE. It features 24 Gigabit RJ45 copper ports without PoE capability. For PoE requirements, consider the IE-9320-24P4X-A variant which offers PoE+ on all 24 ports.

Q: Can the IE-9320-24T4X-A be stacked with other switches?
A: Yes, the switch includes two dedicated StackWise stacking ports, enabling multiple units to be stacked for simplified management and increased scalability. This allows you to manage a stack of switches as a single logical unit with unified configuration and high-bandwidth inter-switch connectivity.

Q: What industrial protocols does this switch support?
A: The IE-9320-24T4X-A supports industrial automation protocols including EtherNet/IP (CIP) and PROFINET, along with industrial resilience protocols like Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), Media Redundancy Protocol (MRP), and High-availability Seamless Redundancy (HSR) for mission-critical industrial applications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
