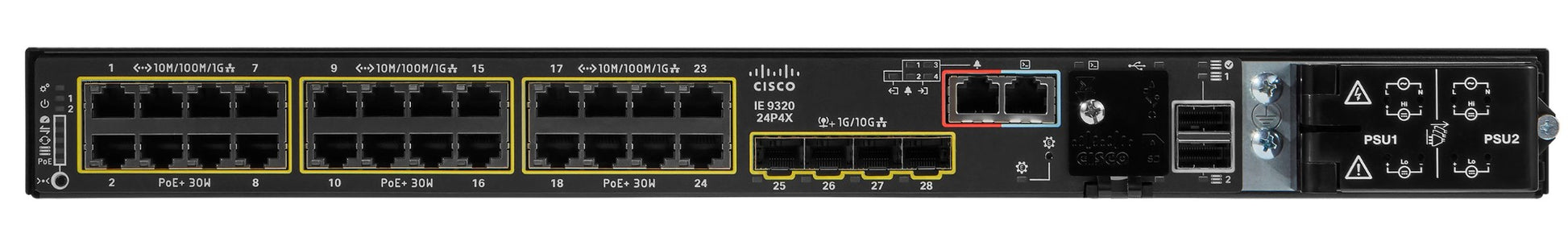

• Cisco IE-9320-24P4X-A switch with 24 PoE+ ports and 4 SFP+ uplinks
1 1

Cisco

Cisco IE-9320-24P4X-A | Catalyst IE9300 Rugged 24-Port Gigabit PoE+ Switch, 720W, 4x 10G SFP+

IE-9320-24P4X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst IE-9320-24P4X-A is a rugged industrial Layer 3 switch engineered for harsh environments in manufacturing, energy, transportation, and smart cities. With 24 Gigabit PoE+ ports delivering 720W total power budget and 4x 10G SFP+ uplinks, it supports high-power devices and high-bandwidth applications at the industrial edge. Running Cisco IOS XE with fanless, hardened design, this 1RU rack-mount switch operates in extended temperature ranges while providing enterprise-grade security, automation, and network visibility for mission-critical industrial networks.

Features

Layer 3 switching with support for static routing, OSPF, RIP, and policy-based routing
- Advanced security: Secure Boot, Trust Anchor module, Cisco TrustSec, MACsec encryption (IEEE 802.1AE)
- Resiliency protocols: HSR (High-availability Seamless Redundancy), PRP (Parallel Redundancy Protocol), REP (Resilient Ethernet Protocol)
- Quality of Service (QoS): Hardware-based queuing, DSCP, CoS marking, and priority queuing for time-sensitive traffic
- Network automation: Model-driven programmability with NETCONF, RESTCONF, YANG, and on-box Python scripting
- Full Flexible NetFlow (FNF) for traffic visibility and threat analysis
- VLAN support: Up to 1024 VLAs, Q-in-Q tunneling, VTP v2/v3
- Spanning Tree: Rapid PVST+, PVST+, PVRST, MST (IEEE 802.1s)
- Link aggregation: EtherChannel with LACP (IEEE 802.3ad)
- Multicast: IGMP snooping, MLD snooping, PIM (Protocol Independent Multicast)
- Precision Time Protocol: IEEE 1588v2 for sub-microsecond time synchronization
- Industrial protocols: Supports integration with SCADA, DCS, and OT network systems
- Alarm inputs and outputs: 4 alarm inputs, 1 alarm output for industrial monitoring
- Cisco EnergyWise for power management and monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000BASE-T PoE+ ports (IEEE 802.3at)
- 4x 1G/10G SFP+ uplink ports
- Total PoE budget: 720W
- Layer 3 switching with static and dynamic routing
- 4GB DRAM, 8GB Flash memory
- SD card slot for optional storage expansion
- Operating system: Cisco IOS XE
- Fanless, convection-cooled design
- Operating temperature: -40°C to 75°C (-40°F to 167°F)
- Management: CLI, WebUI, SNMP, NETCONF, RESTCONF
- 1RU rack-mountable form factor
- Redundant power supply support
- IEEE 1588v2 Precision Time Protocol (PTP)

FAQs

Q: What license tier does the IE-9320-24P4X-A include?
A: This model includes the Network Advantage license, which provides Layer 3 routing, advanced security features, and full network automation capabilities. It also includes a 3-year Cisco Cyber Vision and Secure Equipment Access license for 24 endpoints at no extra cost for orders placed after August 23, 2025.

Q: What is the maximum PoE power per port on this switch?
A: Each PoE+ port supports up to 30W per port (IEEE 802.3at). The switch provides a total PoE budget of 720W across all 24 ports, allowing simultaneous power delivery to high-power devices such as IP cameras, wireless access points, and industrial IoT sensors.

Q: Can this switch be used in outdoor or extreme temperature environments?
A: Yes, the IE-9320-24P4X-A is purpose-built for harsh industrial environments with an extended operating temperature range of -40°C to 75°C. The fanless, convection-cooled design and ruggedized construction make it suitable for outdoor enclosures, factories, substations, and other challenging conditions.

Q: Does this model support switch stacking?
A: The IE-9320-24P4X-A model does not support physical stacking. Stacking is available on select IE9320 fiber models with dedicated stack connectors. However, this switch can be managed as part of a centralized network using Cisco Catalyst Center.

Q: What uplink transceivers are compatible with the 10G SFP+ ports?
A: The 4x SFP+ uplink ports support both 1G SFP and 10G SFP+ transceivers, providing flexible connectivity options for fiber or direct-attach copper (DAC) connections to core switches, aggregation layers, or storage networks. Cisco and Cisco-compatible transceivers are supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
