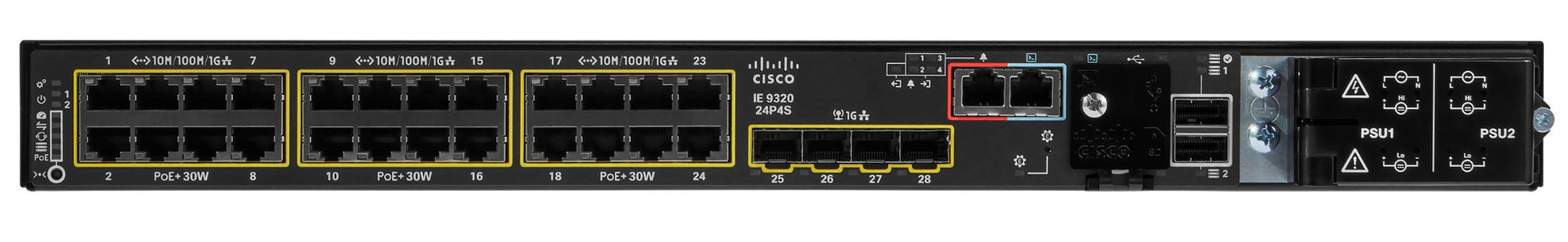

Cisco IE-9320-24P4S-A | Catalyst IE9300 Rugged 24-Port Gigabit PoE+ Industrial Switch, 385W, 4x 1G SFP

IE-9320-24P4S-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-9320-24P4S-A is a ruggedized 1RU industrial Ethernet switch designed for harsh environments in manufacturing, energy, transportation, and oil and gas. With 24 Gigabit PoE+ ports delivering up to 385W of power budget and 4 SFP uplinks, it provides reliable Layer 2/3 connectivity with Network Advantage features for mission-critical industrial applications. Operating in extreme temperatures from -40°C to 75°C, this fanless, hardened switch includes StackWise support and dual power inputs for maximum uptime.

Features

Layer 2 switching and Layer 3 static routing capabilities with Network Advantage license
- Advanced QoS with 8 egress queues per port for traffic prioritization
- Cisco TrustSec and MACsec-256 encryption for network segmentation and data protection
- Cisco Trust Anchor module and Secure Boot for hardware-based security
- PROFINET, EtherNet/IP (CIP), and industrial automation protocol support
- IEEE 1588v2 Precision Time Protocol (PTP) for time synchronization
- Parallel Redundancy Protocol (PRP) and High-availability Seamless Redundancy (HSR)
- Media Redundancy Protocol (MRP) and Resilient Ethernet Protocol (REP)
- Perpetual PoE to maintain power to devices during switch reload
- Fast PoE for rapid endpoint initialization
- StackWise technology for stacking up to 8 switches (160 Gbps stack bandwidth)
- Flexible NetFlow (FNF) for network visibility and telemetry
- Zero-Touch Provisioning for automated deployment
- Dual redundant AC/DC power inputs with optional 150W, 250W, or 400W power supplies
- Integrated Cisco Cyber Vision for asset discovery and threat detection (Network Advantage SKUs)
- 802.1X network access control, Dynamic ARP Inspection, IP Source Guard
- EtherChannel support (LACP) for link aggregation
- Spanning Tree Protocol (STP, RSTP, MST) with 128 instances
- IGMP snooping and multicast support for 1,000 groups
- Jumbo frame support up to 9,000 bytes
- Cisco DNA Center integration for centralized management and analytics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

28 total ports: 24x 10/100/1000BASE-T PoE+ RJ-45 downlinks, 4x 1000BASE-X SFP uplinks
- PoE budget: 385W (upgradable to 480W with IOS XE 17.18.1 and dual 400W power supplies)
- PoE standards: IEEE 802.3af/at/bt with Perpetual PoE and Fast PoE support
- Switching capacity: 56 Gbps (full duplex 128 Gbps)
- Forwarding rate: 95.23 Mpps
- MAC address table: 16,000 entries (up to 24,000 with dual PSU configuration)
- VLAN support: 4096 VLAN IDs, 1024 active VLANs
- Routing capacity: 4,000 IPv4 routes, 2,000 IPv6 routes
- Memory: 8 GB DRAM, 4 GB flash (2.5 GB user-accessible)
- Operating temperature: -40°C to 75°C (-40°F to 167°F)
- Dimensions (HxWxD): 1.72 x 17.5 x 15.18 inches (43.7 x 444.5 x 385.5 mm)
- Weight: 9.7 lb (4.4 kg)
- Power consumption: 37W (without PoE load)
- Power inputs: Dual AC/DC (120/230V AC or 18-75V DC)
- 2x StackWise stacking ports for high-availability configurations
- Fanless, convection-cooled design with no moving parts
- Management: Cisco IOS XE, CLI, WebUI, SNMP, Cisco Catalyst Center, Zero-Touch Provisioning
- Certifications: EN 61000-6-2, EN 61000-6-4, IEEE 1588v2 PTP, NEMA TS2, IEC 61850-3

FAQs

Q: What software license is included with the IE-9320-24P4S-A?
A: The IE-9320-24P4S-A includes the Cisco Network Advantage license, which provides advanced Layer 3 routing, security features, and management capabilities. It also includes a 3-year Cisco Cyber Vision license for 24 endpoints when ordered after August 23, 2025.

Q: Can this switch operate in extreme industrial environments?
A: Yes, the IE-9320-24P4S-A is purpose-built for harsh industrial conditions with an operating temperature range of -40°C to 75°C. It features a fanless, convection-cooled design and is hardened against shock, vibration, electrical noise, and EMI, making it ideal for outdoor enclosures, factories, substations, and transportation infrastructure.

Q: How much PoE power can this switch deliver?
A: The switch provides a 385W PoE budget as standard. With IOS XE software version 17.18.1 or later and dual 400W power supplies, the PoE budget can be increased to 480W. It supports IEEE 802.3af, 802.3at, and 802.3bt standards with Perpetual PoE to maintain power during switch reboots.

Q: Does this switch support industrial automation protocols?
A: Yes, the IE-9320-24P4S-A natively supports PROFINET, EtherNet/IP (CIP), and IEEE 1588v2 Precision Time Protocol (PTP) for synchronization in industrial automation and substation applications. It also supports Parallel Redundancy Protocol (PRP), High-availability Seamless Redundancy (HSR), and Media Redundancy Protocol (MRP).

Q: Can I stack multiple IE-9320 switches together?
A: Yes, the IE-9320-24P4S-A includes two StackWise stacking ports that allow you to stack up to eight switches into a single logical unit for simplified management, increased resiliency, and scalable bandwidth.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
