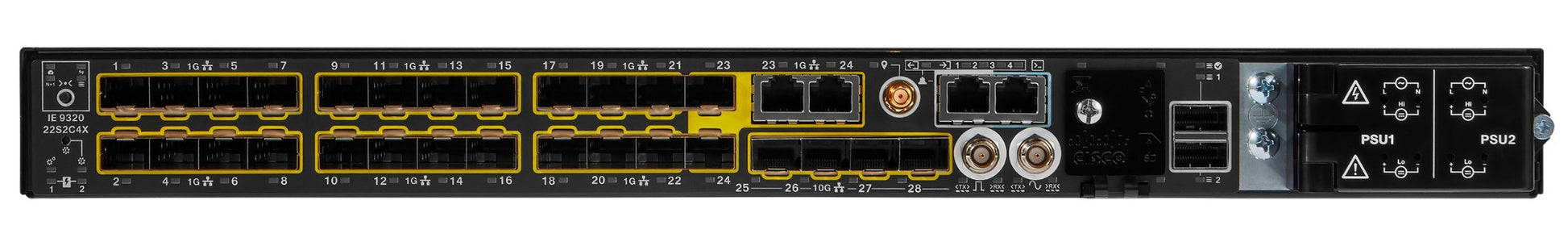

• Cisco IE-9320-22S2C4X-A switch with 22x 1G SFP ports and 4x 10G uplinks
1 1

Cisco

Cisco IE-9320-22S2C4X-A | Catalyst IE9300 Rugged 24-Port Gigabit Fiber Switch, 4x 10G SFP+, Layer 3

IE-9320-22S2C4X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-9320-22S2C4X-A is a ruggedized industrial Layer 3 switch designed for harsh environments in manufacturing, utilities, transportation, and smart cities. It features 22 Gigabit SFP fiber ports, 2 dual-media combo ports, and 4 high-speed 10G SFP+ uplinks with StackWise stacking for scalability. Built for extreme conditions with fanless cooling, this switch delivers enterprise-class networking with advanced security, precision timing support, and Cisco Cyber Vision for OT asset visibility.

Features

Layer 3 IP routing with static routes, OSPF, EIGRP, and BGP support
- Advanced security with Cisco Trust Anchor, Secure Boot, and image signing
- MACsec-256 encryption for data-in-transit protection
- Cisco TrustSec for software-defined segmentation
- IEEE 802.1X network access control and port security
- Flexible NetFlow for real-time traffic visibility and threat analysis
- StackWise-160 stacking for up to 4 switches
- Redundant power supply support for high availability
- GNSS receiver and IRIG-B timecode for precision timing
- IEEE 1588v2 Precision Time Protocol (PTP) support
- Industrial protocol support: PROFINET, EtherNet/IP, Modbus TCP
- Resilience protocols: HSR, PRP, REP, MRP
- Cisco Cyber Vision integration for OT asset visibility
- Cisco Secure Equipment Access for zero-trust remote access
- Conformal coating for enhanced environmental protection
- API-driven automation with YANG, NETCONF, RESTCONF
- Quality of Service (QoS) with 8 egress queues
- IPv4 and IPv6 routing with up to 4000 IPv4 and 2000 IPv6 routes
- Up to 1024 VLANs and 984 switched virtual interfaces (SVIs)
- Alarm inputs and outputs for industrial monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 28 (22x 1G SFP, 2x dual-media SFP/RJ45, 4x 1/10G SFP+ uplinks)
- Switching Capacity: 152 Gbps full-duplex
- Forwarding Rate: 113.09 Mpps
- Memory: 8 GB DRAM, 8 GB Flash
- Layer 3 Routing: Advanced IP routing with Network Advantage license
- Stacking: StackWise-160, up to 4 members
- Management: Cisco IOS XE, CLI, WebUI, Catalyst Center, SNMP, NETCONF, RESTCONF
- Operating Temperature: -40°C to 75°C
- Form Factor: 1RU rack-mountable, fanless convection cooling
- Power: Dual AC/DC redundant inputs, 73W typical consumption
- Timing Features: GNSS receiver, IRIG-B timecode input/output
- Dimensions: 1.72 x 17.5 x 14.0 in (4.37 x 44.45 x 35.6 cm)
- Weight: 12.7 lb (5.76 kg)
- MTBF: 323,733 hours
- Certifications: IEC 61850-3, IEEE 1613, NEMA TS2, hazardous location ratings

FAQs

Q: What environments is the IE-9320-22S2C4X-A designed for?
A: This switch is purpose-built for harsh industrial environments including utility substations, manufacturing floors, intelligent transportation systems, mining operations, and outdoor enclosures. It operates reliably in extreme temperatures from -40°C to 75°C with resistance to shock, vibration, and electromagnetic interference.

Q: What licensing comes with the IE-9320-22S2C4X-A?
A: The switch includes a perpetual Network Advantage license, providing advanced Layer 3 routing, security features, and full management capabilities. It also includes a 3-year limited term license for 24 endpoints of Cisco Cyber Vision and Secure Equipment Access for enhanced OT security and zero-trust remote access.

Q: Can this switch be stacked with other IE9300 models?
A: Yes, the IE-9320-22S2C4X-A supports StackWise-160 technology and can stack up to 4 switches, allowing them to operate as a single logical unit with centralized management and 160 Gbps stacking bandwidth.

Q: What precision timing features does this switch support?
A: The switch includes integrated GNSS receiver and IRIG-B timecode input/output connectors for precision time synchronization. It supports IEEE 1588v2 Precision Time Protocol (PTP) for sub-microsecond accuracy, critical for utility substations and industrial automation applications.

Q: What industrial protocols are supported?
A: The switch natively supports PROFINET, EtherNet/IP (CIP), Modbus TCP, and industrial redundancy protocols including HSR/PRP, REP, and MRP, enabling seamless integration with PLCs, SCADA systems, and other industrial control devices.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
