Cisco

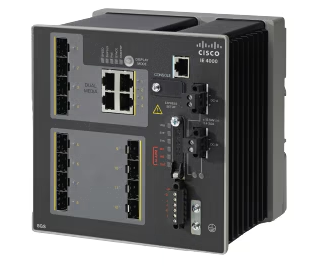

Cisco IE-4000-8S4G-E | IE4000 8-Port 100M SFP Industrial Switch, LAN Base

SKU:IE-4000-8S4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Industrial Ethernet IE4000 series is a DIN-rail mountable, ruggedised switch family built for harsh manufacturing, energy, transportation and smart city environments. This model provides fibre-heavy Fast Ethernet access with Gigabit uplinks, and suits warehouses, distribution centres, substations, railway and ITS deployments.

The switch offers 12 ports in total: 8 Fast Ethernet (100M) SFP ports and 4 Gigabit Ethernet combo uplinks that accept either an SFP or an RJ45 connection, with one connection active per port. There are no PoE or PoE+ ports. It forwards at line rate on all ports for all packet sizes, and carries 1 GB of DRAM and 128 MB of onboard flash, plus a 1 GB removable SD card. It runs Cisco IOS with the LAN Base feature set and can be upgraded to IP Services with the L-IE4000-RTU= electronic licence.

Power comes from a redundant DC input, nominally 9.6 to 60 VDC, drawing 42 W. Operating temperature runs from -40C to +75C with IP30 protection. It supports industrial, extended and commercial temperature SFPs, including 100BASE-FX/LX10/BX10 and 1000BASE-SX/LX/ZX/BX/T modules such as GLC-FE-100FX-RGD= and GLC-SX-MM-RGD=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ruggedised design hardened for vibration, shock, surge and noise immunity
- Resiliency protocols including REP, PRP, MRP, HSR, EtherChannel and Flex Links
- Redundant DC power input
- Industrial automation protocols: EtherNet/IP (CIP), PROFINET and Modbus TCP
- IEEE 1588v2 PTP support and 1:1 static NAT
- Security features including 802.1x, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, SSH, SNMPv3, TACACS+ and RADIUS
- SwapDrive zero-configuration replacement for fast recovery
- Web-based Device Manager, plus management via Cisco Catalyst Center and Industrial Network Director

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 12
- Fast Ethernet SFP fibre ports: 8
- Gigabit Ethernet combo uplink ports (SFP or RJ45): 4
- PoE/PoE+ ports: None
- Default software licence: LAN Base (upgradable to IP Services)
- DRAM: 1 GB
- Onboard flash memory: 128 MB
- Removable SD flash memory card: 1 GB
- Console connectors: Mini-USB and RJ-45
- Alarm I/O: 2 alarm inputs, 1 alarm output relay
- Forwarding rate: Line rate for all ports and all packet sizes
- Egress queues: 4
- Unicast MAC addresses: 16,000
- IGMP multicast groups: 1,000
- VLANs: 1,000
- Input voltage: Redundant DC, nominal 9.6 to 60 VDC
- Maximum input current: 5.0 A
- Power consumption: 42 W at 9.6 V
- Dimensions (H x W x D): 155.4 x 155.4 x 129.2 mm
- Weight: 2.88 kg
- Operating temperature: -40C to +75C
- Storage temperature: -40C to +85C
- Relative humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- MTBF: 583,700 hours

FAQs

Q: Which licence does this switch run?
A: It runs the LAN Base feature set. It can be upgraded to IP Services with the L-IE4000-RTU= electronic licence.

Q: Does it provide PoE?
A: No. This model has no PoE or PoE+ ports. It is powered from a redundant DC input of nominally 9.6 to 60 VDC and draws 42 W, so a 50 W DIN-rail supply such as PWR-IE50W-AC= is sufficient.

Q: Which SFPs does it support?
A: It supports industrial, extended and commercial temperature SFPs, including 100BASE-FX/LX10/BX10 and 1000BASE-SX/LX/ZX/BX/T modules such as GLC-FE-100FX-RGD=, GLC-SX-MM-RGD=, GLC-LX-SM-RGD= and GLC-T-RGD=, as well as CWDM and DWDM SFPs. Non-industrial SFPs require the operating temperature to be derated.

Q: Can the 4 Gigabit uplinks use copper and fibre at the same time?
A: No. Each of the four uplinks is a combo port that uses either an SFP or an RJ45 connection, with one active per port.

Q: How can it be mounted?
A: It is DIN-rail compliant and IP30 rated. The STK-RACK-DINRAIL= kit adds 19-inch rack mounting.
