Cisco IE-4000-8GS4G-E | IE 4000 8x 1G SFP Industrial Switch, 4x 1G Combo, LAN Base

SKU:IE-4000-8GS4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

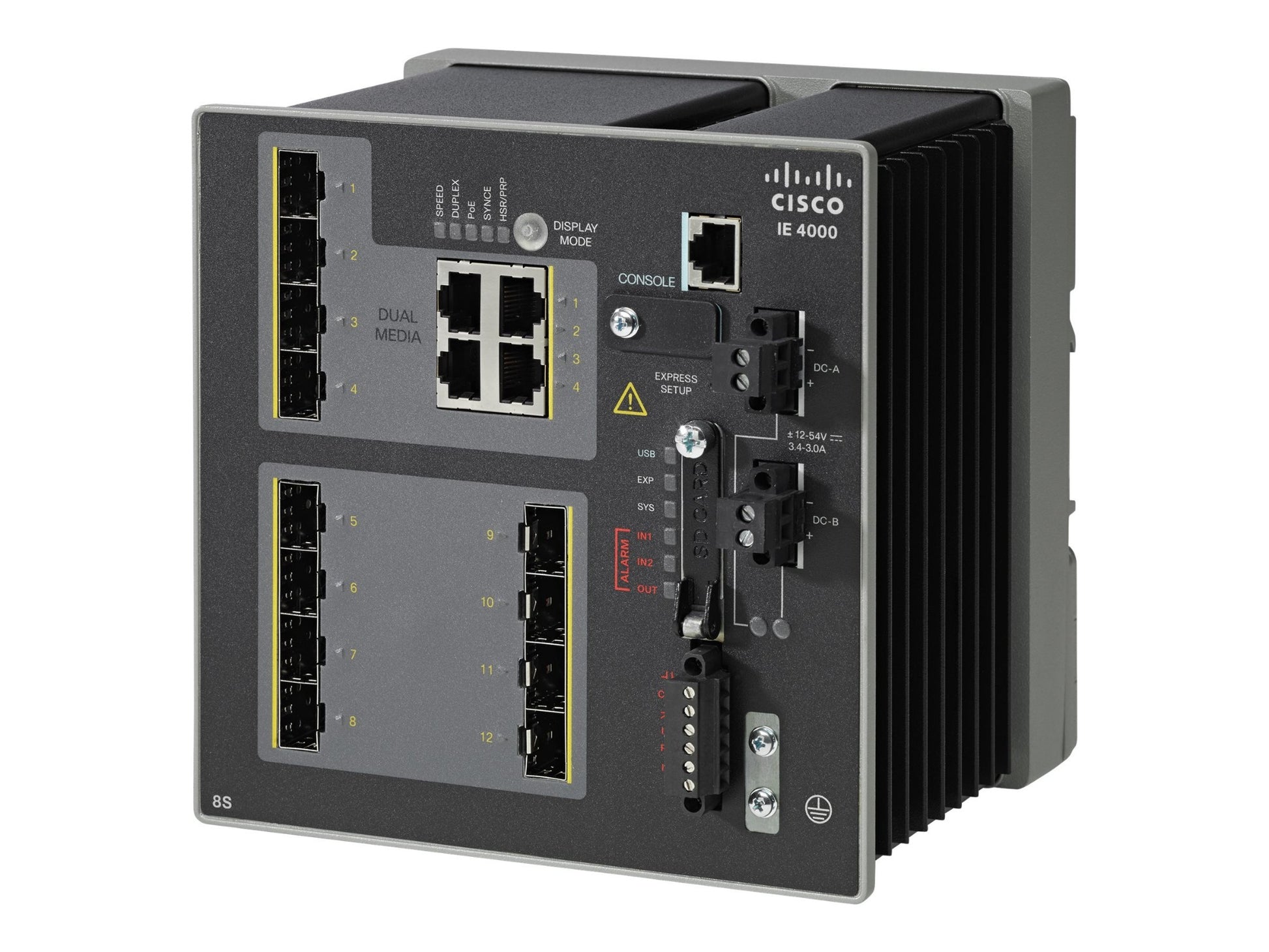

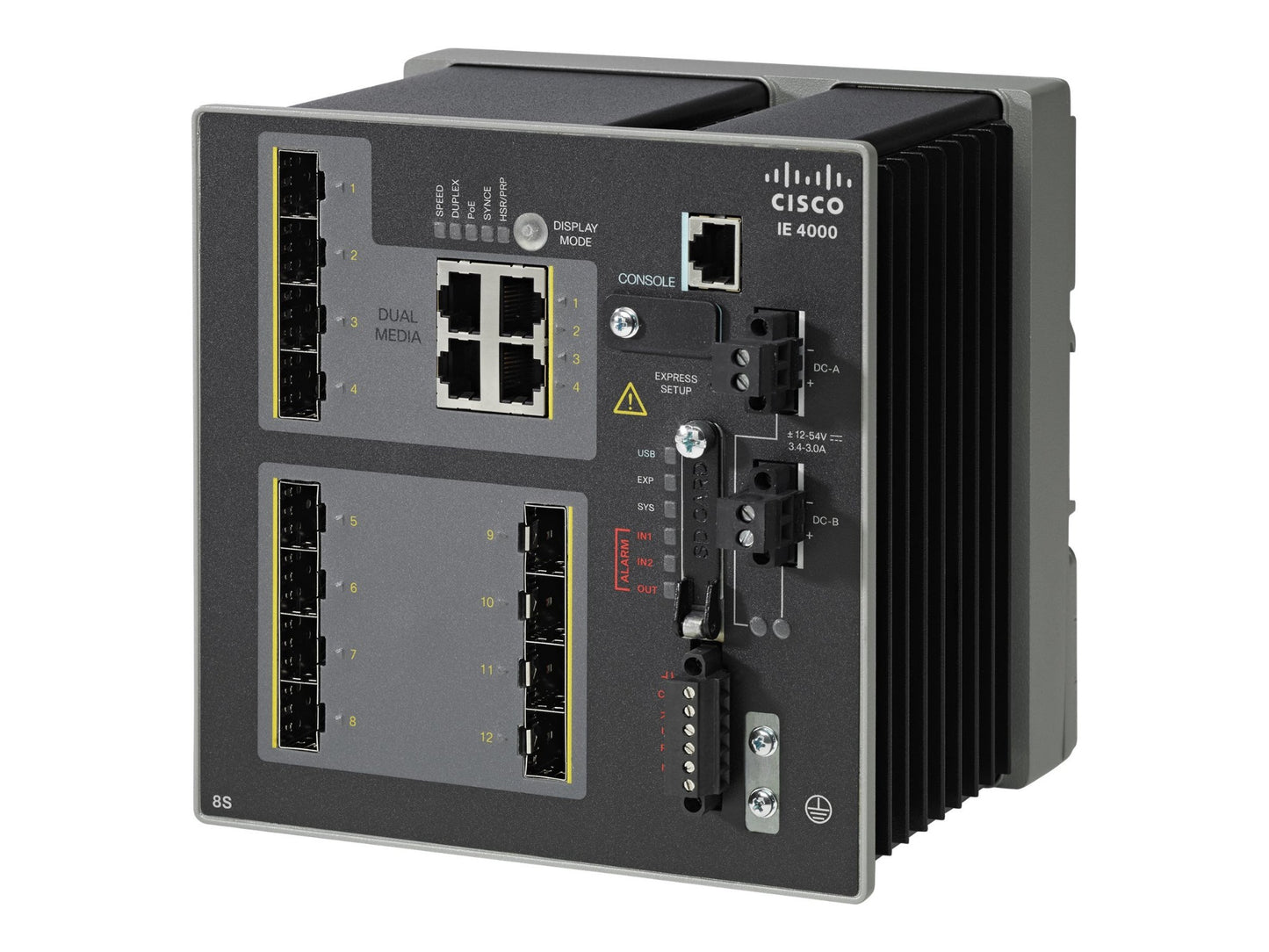

The IE 4000 Series IE-4000-8GS4G-E is a DIN-rail, ruggedised Layer 2 Gigabit industrial Ethernet switch for harsh environments such as manufacturing, energy and utility substations, transportation and smart cities. It suits fibre-heavy access aggregation and resilient ring topologies, including outdoor areas, warehouses, distribution centres and roadways.

This model provides 8 x Gigabit Ethernet SFP downlink ports and 4 x Gigabit Ethernet combo uplink ports that accept either SFP or RJ45, for 12 ports in total. Switching capacity is 20 Gbps non-blocking with line-rate forwarding for all packet sizes. It has no PoE ports, so it is a fibre-focused access switch rather than a powered-device switch. It ships with the LAN Base feature set (Layer 2 with IPv4 static routing), upgradable to IP Services with the L-IE4000-RTU= licence. Power comes from a redundant DC input, nominal 9.6 to 60 VDC, drawing 42 W, and the unit operates from -40 C to +75 C.

It supports industrial-grade, extended and commercial SFPs, including GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-BX40-U-I=, plus GLC-T-RGD= and GLC-TE= copper SFPs. It can be managed through Industrial Network Director and Catalyst Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ruggedised DIN-rail form factor built for harsh industrial environments
- Ring resiliency via the 4 x GE uplinks, with REP, PRP, MRP, HSR, EtherChannel and Flex Links
- Redundant DC power input with dying gasp
- SwapDrive zero-touch switch replacement
- Industrial protocols including EtherNet/IP (CIP), PROFINET and Modbus TCP
- Time synchronisation and TSN support with IEEE 1588v2 PTP, 802.1AS and 802.1Qbv
- Security features including 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and secure boot
- Layer 2 switching with IPv4 static routing and 1:1 static NAT
- Web-based Device Manager GUI with multi-language support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x Gigabit Ethernet SFP
- Uplink ports: 4 x Gigabit Ethernet combo (SFP or RJ45)
- Total ports: 12
- PoE/PoE+ ports: None
- Software feature set: LAN Base (upgradable to IP Services)
- Switching capacity: 20 Gbps non-blocking
- Forwarding rate: Line rate for all ports and packet sizes
- Memory: 1 GB DRAM, 128 MB onboard flash
- Removable storage: 1 GB SD flash memory card
- Management and console: Mini-USB and RJ-45
- Alarms: 2 alarm inputs, 1 alarm output relay
- Input voltage: Redundant DC input, nominal 9.6 to 60 VDC
- Maximum input current: 5.0 A
- Power consumption: 42 W (measured at 9.6 V, no PoE)
- Unicast MAC addresses: 16,000
- IGMP multicast groups: 1,000
- VLANs: 1,000
- Egress queues: 4
- Operating temperature: -40 C to +75 C
- Storage temperature: -40 to +85 C
- Humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- MTBF: 583,700 hours
- Dimensions (H x W x D): 155.4 x 155.4 x 129.2 mm
- Weight: 2.88 kg

FAQs

Q: Which licence does this switch run, and can it be upgraded?
A: It runs the LAN Base feature set, which covers Layer 2 and IPv4 static routing. It can be upgraded to IP Services with the L-IE4000-RTU= licence, which adds routing protocols such as OSPF, EIGRP and BGPv4.

Q: Does this switch provide PoE?
A: No. This model has no PoE or PoE+ ports. Powered devices need a separate power source.

Q: How is the switch powered?
A: It uses a redundant DC input, nominal 9.6 to 60 VDC, with a maximum input current of 5.0 A. DIN-rail power supplies such as PWR-IE50W-AC= and PWR-IE170W-PC-AC= can be used.

Q: Which SFPs work with the 8 SFP ports and the combo uplinks?
A: It supports industrial, extended and commercial SFPs, including GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-BX40-U-I=, as well as GLC-T-RGD= and GLC-TE= copper SFPs. Non-industrial SFPs require temperature derating.

Q: How do the 4 combo uplink ports work?
A: Each of the 4 combo ports can be used as either an SFP port or an RJ45 copper port, which allows fibre or copper uplinks depending on your cabling.
