Cisco

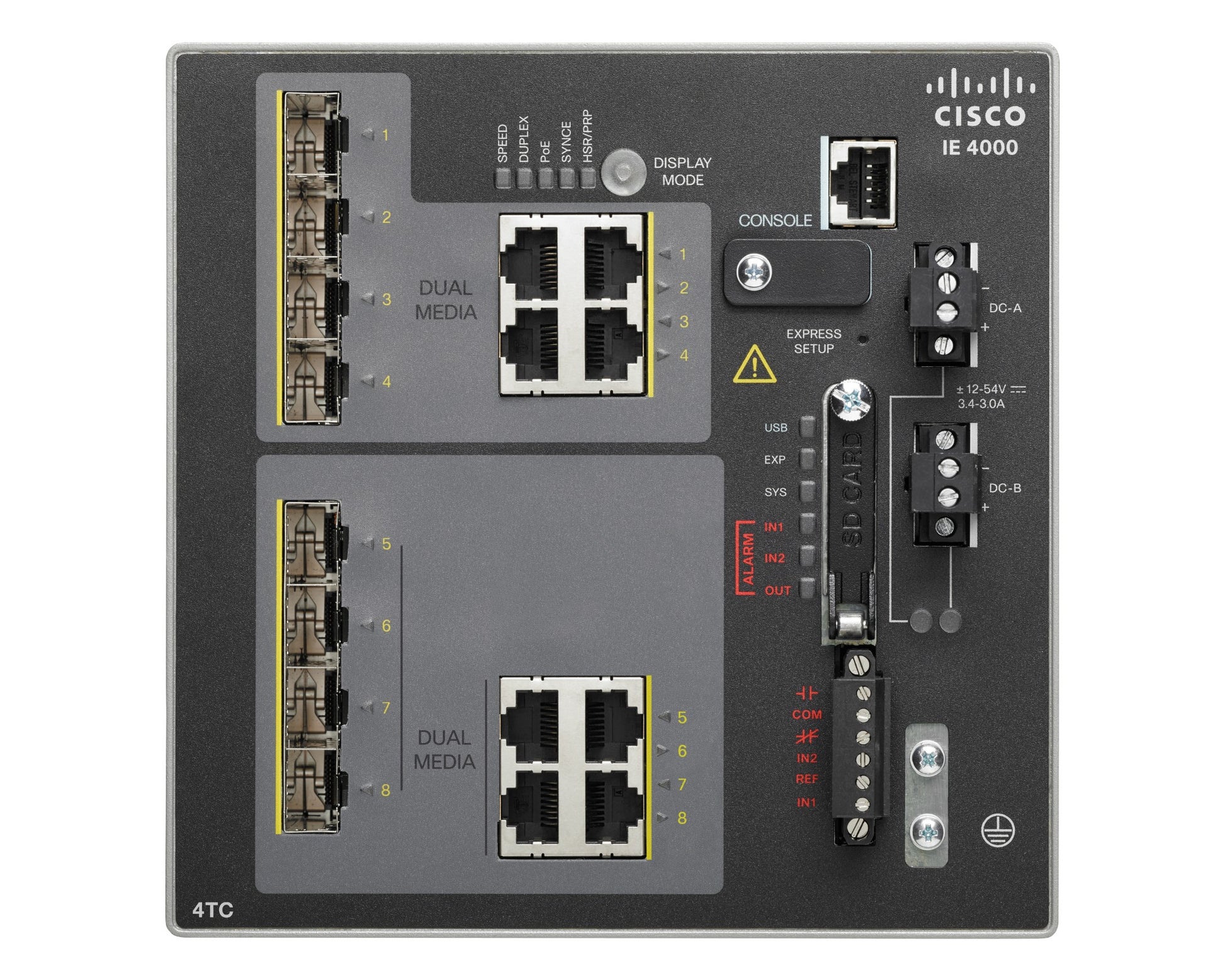

Cisco IE-4000-4TC4G-E | IE 4000 4x FE, 4x GE Combo Industrial Switch, LAN Base

SKU:IE-4000-4TC4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IE 4000 is a DIN-rail ruggedised managed switch from the Cisco Industrial Ethernet 4000 Series, built for harsh environments such as manufacturing and factory automation, energy and substations, transportation and ITS, smart cities and roadways. It also suits warehouses and distribution centres, and can extend the enterprise network into harsh locations, including SD-Access extended node deployments.

This model has eight combo SFP or RJ45 ports in total: 4 Fast Ethernet combo access ports and 4 Gigabit Ethernet combo uplink ports. It has no PoE ports, so it supplies no PoE budget. It provides 20 Gbps of non-blocking switching capacity with line-rate forwarding on all ports and packet sizes, and runs Cisco IOS with the LAN Base feature set by default. LAN Base can be upgraded to IP Services for dynamic routing, PIM multicast, MACsec, TrustSec and VRF-lite. The switch is powered by a redundant DC input, nominal 9.6 to 60 VDC, and operates from -40 C to +75 C.

The combo ports accept Cisco industrial and commercial SFPs, including the ruggedised GLC-FE-100FX-RGD, GLC-SX-MM-RGD, GLC-LX-SM-RGD and GLC-T-RGD options, as well as CWDM and DWDM SFPs. It is managed through the web Device Manager, Cisco Industrial Network Director or Cisco Catalyst Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardened against vibration, shock, surge and noise for harsh environments
- Dual-ring resilient design using the 4 GE combo uplink ports
- Ring redundancy protocols: REP, PRP, MRP and HSR
- Industrial automation protocol support: EtherNet/IP (CIP), PROFINET v2 and Modbus TCP
- IEEE 1588 PTPv2 precision time, plus NTP to PTP translation
- SwapDrive zero-config switch replacement
- Security: 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, TACACS+/RADIUS, SSH and SNMPv3
- 1:1 static NAT, IPv4 static routing and IPv6 host support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 8
- Access ports: 4 x Fast Ethernet combo (SFP or RJ45)
- Uplink ports: 4 x Gigabit Ethernet combo (SFP or RJ45)
- PoE/PoE+: None
- Default licence: LAN Base feature set
- Switching capacity: 20 Gbps non-blocking
- Forwarding rate: Line rate for all ports and all packet sizes
- Memory: 1 GB DRAM
- Onboard flash: 128 MB
- Console connectors: Mini-USB and RJ-45
- Alarm I/O: 2 alarm inputs, 1 alarm output relay
- Input voltage: Redundant DC input, nominal 9.6 to 60 VDC
- Maximum input current: 4.3 A
- Power consumption: 40 W (measured at 9.6 V)
- Unicast MAC addresses: 16,000
- VLANs: 1,000
- Egress queues: 4
- Operating temperature: -40 C to +75 C
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- Dimensions (H x W x D): 155.4 x 155.4 x 129.2 mm
- Weight: 2.88 kg
- Mounting: DIN-rail
- MTBF: 578,730 hours

FAQs

Q: Which licence does this switch run?
A: It runs the LAN Base feature set. It can be upgraded to IP Services (L-IE4000-RTU) for dynamic routing, PIM multicast, MACsec, TrustSec and VRF-lite.

Q: Does it support PoE?
A: No. This model has no PoE or PoE+ ports and provides no PoE budget, so powered devices need a separate power source.

Q: How is the switch powered?
A: It uses a redundant DC input, nominal 9.6 to 60 VDC, with a maximum input current of 4.3 A. Cisco DIN-rail power supplies such as PWR-IE50W-AC and PWR-IE65W-PC-AC can power it.

Q: Which SFPs work in the combo ports?
A: It supports Cisco industrial and commercial SFPs, including GLC-FE-100FX-RGD, GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD and GLC-T-RGD, plus CWDM and DWDM SFPs. Commercial SFPs require derating of the operating temperature.

Q: Can it be rack mounted?
A: It is DIN-rail mounted as standard. The STK-RACK-DINRAIL 19-inch rack mount kit is available as an accessory.
