Cisco

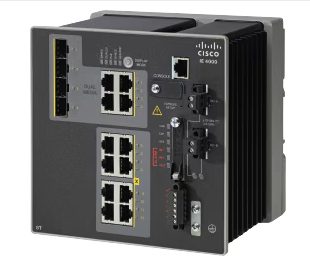

Cisco IE-4000-4T4P4G-E | Catalyst IE4000 8-Port PoE+ Industrial Switch, 125W, LAN Base

SKU:IE-4000-4T4P4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IE4000 is a DIN-rail, ruggedised Layer 2 managed switch for industrial Ethernet networks in manufacturing, energy and utilities, rail and intelligent transport, substations and smart cities. It suits sites that need to power and connect IP cameras, phones, badge readers and wireless access points over PoE+, and to build resilient ring topologies.

This IE-4000-4T4P4G-E model provides four 10/100 RJ45 copper ports and four 10/100 PoE+ (802.3at) ports sharing a 125W PoE budget, plus four Gigabit combo uplinks that take either SFP or RJ45. Switching capacity is 20 Gbps non-blocking with line-rate forwarding on all ports and packet sizes. It supports 1,000 VLANs, 16,000 unicast MAC addresses and four egress queues per port, and it runs at -40 to +75 C.

It ships with the LAN Base feature set, covering Layer 2 switching, IPv4 static routing and 1:1 static NAT, and can be upgraded to IP Services. The redundant DC input accepts nominal 9.6 to 60 VDC. The PoE load must be covered by the external DIN-rail power supply, with PWR-IE65W-PC-AC=, PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L= among the PoE-capable options. The combo uplinks accept Cisco SFPs, including industrial-rated GLC-SX-MM-RGD=, GLC-LX-SM-RGD= and GLC-T-RGD=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ruggedised, hardened design for vibration, shock, surge and noise immunity
- Compact DIN rail compliant form factor
- Resiliency protocols: REP, PRP, MRP ring, HSR ring, EtherChannel and Flex Links
- Redundant power input with dying gasp
- SwapDrive zero-config replacement for fast recovery after a failure
- Industrial automation protocols: EtherNet/IP (CIP), PROFINET and Modbus TCP
- IEEE 1588v2 PTP and CIP Time Sync
- Security: 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, SSH, SNMPv3, TACACS+, RADIUS and secure boot
- Web-based Device Manager GUI, plus management via Cisco Catalyst Center and Industrial Network Director

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 12
- Copper ports: 4 x 10/100 RJ45
- PoE/PoE+ ports: 4 x 10/100 (802.3at)
- PoE budget: 125W maximum
- Uplinks: 4 x Gigabit combo (SFP or RJ45)
- Software: LAN Base feature set, upgradeable to IP Services
- Switching capacity: 20 Gbps non-blocking
- Forwarding rate: line rate on all ports and packet sizes
- DRAM: 1 GB
- Onboard flash: 128 MB
- Removable SD card: 1 GB
- Management ports: Mini-USB and RJ-45 console
- Alarm I/O: 2 inputs, 1 output relay
- Unicast MAC addresses: 16,000
- VLANs: 1,000
- IGMP multicast groups: 1,000
- Egress queues: 4
- Input voltage: redundant DC, nominal 9.6 to 60 VDC
- Maximum input current: 3.7 A
- Power consumption: 35 W, excluding PoE
- Dimensions (H x W x D): 155.4 x 155.4 x 129.2 mm
- Weight: 2.88 kg
- Operating temperature: -40 to +75 C
- Storage temperature: -40 to +85 C
- Ingress protection: IP30
- MTBF: 562,300 hours

FAQs

Q: Which licence does this switch run?
A: It runs the LAN Base feature set, which covers Layer 2 switching, IPv4 static routing and 1:1 static NAT. It can be upgraded to IP Services with the L-IE4000-RTU= licence.

Q: How much PoE does it provide?
A: The four Fast Ethernet PoE+ ports share a 125W maximum PoE budget. The external DIN-rail power supply must cover both the switch load and the PoE load.

Q: Which power supplies suit this switch?
A: PoE-capable options include PWR-IE65W-PC-AC=/DC=, PWR-IE170W-PC-AC=/DC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. PWR-IE50W-AC= does not provide PoE.

Q: Which SFPs work in the combo uplinks?
A: The combo uplinks accept Cisco SFPs, including industrial-rated GLC-FE-100FX-RGD=, GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-T-RGD=. Only the copper or the SFP port of each combo pair is active at a time.

Q: How does this model differ from other IE 4000 variants?
A: IE-4000-4T4P4G-E has four Fast Ethernet copper ports, four Fast Ethernet PoE+ ports with a 125W budget and four Gigabit combo uplinks. Other IE 4000 variants differ in port count, PoE capability and uplink speed.
