Cisco

Cisco IE-4000-4S8P4G-E | Industrial Ethernet 4000 16-Port PoE+ Switch, LAN Base

SKU:IE-4000-4S8P4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

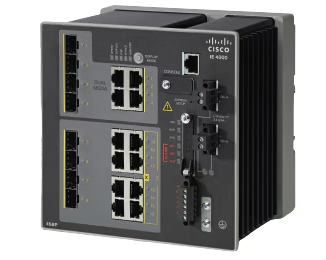

The Cisco Industrial Ethernet 4000 Series IE-4000-4S8P4G-E is a DIN-rail mounted, ruggedised Layer 2 switch built for factory floors, substations, transport systems and other harsh industrial sites. It suits PoE-powered edge devices such as IP cameras, phones, wireless access points and badge readers, and ring-redundant industrial networks.

This SKU provides 16 ports: 4 Fast Ethernet SFP fibre ports, 8 Fast Ethernet PoE/PoE+ ports with a 125W maximum PoE budget, and 4 Gigabit Ethernet combo uplinks that take either SFP or RJ45 (one of each combo pair is active at a time). Switching capacity is 20 Gbps non-blocking with line-rate forwarding. It ships with the LAN Base feature set, upgradeable to IP Services.

Power is a redundant DC input, nominal 9.6 to 60 VDC, with 40W consumption excluding PoE. It supports industrial, extended and commercial SFPs, and compatible DIN-rail power supplies include the PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC=, PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardened for harsh environments, with vibration, shock, surge and noise immunity
- Industrial PoE/PoE+ (802.3af/802.3at) on 8 ports for cameras, phones, access points and badge readers
- Redundancy protocols including REP, PRP, MRP, HSR, EtherChannel and Flex Links, plus redundant power input
- SwapDrive zero-touch switch replacement and Express Setup
- Industrial automation protocol support: EtherNet/IP (CIP), PROFINET and Modbus TCP
- IEEE 1588v2 PTP and hardware-assisted NAT with line-rate low-latency forwarding
- Security features including secure boot, 802.1x, DHCP snooping, DAI and IP Source Guard
- Managed with Web Device Manager, Industrial Network Director or Cisco Catalyst Center

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 16
- SFP fibre ports: 4 x Fast Ethernet
- PoE/PoE+ ports: 8 x Fast Ethernet
- Uplinks: 4 x Gigabit Ethernet combo (SFP or RJ45), one of each pair active at a time
- Maximum PoE power budget: 125W
- Default software licence: LAN Base (upgradeable to IP Services)
- Switching capacity: 20 Gbps non-blocking
- Forwarding rate: line rate for all ports and packet sizes
- Egress queues: 4
- Unicast MAC addresses: 16,000
- VLANs: 1,000
- IGMP multicast groups: 1,000
- DRAM: 1GB
- Onboard flash: 128 MB
- Removable SD flash card: 1 GB
- Console: Mini-USB and RJ-45
- Alarm I/O: 2 alarm inputs, 1 alarm output relay
- Input voltage: redundant DC, nominal 9.6 to 60 VDC
- Maximum input current: 4.3A
- Power consumption: 40W (excludes PoE)
- Operating temperature: -40 to 75 C, derated by enclosure type
- Ingress protection: IP30
- Dimensions (H x W x D): 155.4 x 155.4 x 129.2 mm
- Weight: 2.88 kg
- MTBF: 535,880 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the LAN Base feature set. It can be upgraded to IP Services using the L-IE4000-RTU= electronic licence.

Q: How much PoE can it supply?
A: The 8 Fast Ethernet PoE/PoE+ ports share a maximum PoE budget of 125W. The total switch and PoE load must stay within the rating of the power supply used.

Q: Which power supplies work with it?
A: It takes a redundant DC input of 9.6 to 60 VDC. PoE-capable DIN-rail options include PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC=, PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. The PWR-IE50W-AC= does not support PoE.

Q: Which SFPs can I use in the SFP and combo ports?
A: It supports industrial, extended and commercial Fast Ethernet and Gigabit SFPs, for example GLC-FE-100FX-RGD=, GLC-FE-100LX-RGD=, GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-T-RGD=. Extended and commercial grade SFPs require the operating temperature to be derated.

Q: Can I use the SFP and RJ45 on each combo uplink at the same time?
A: No. Each of the 4 Gigabit combo uplinks offers either an SFP or an RJ45 connection, and only one of the pair is active at a time.
