Cisco

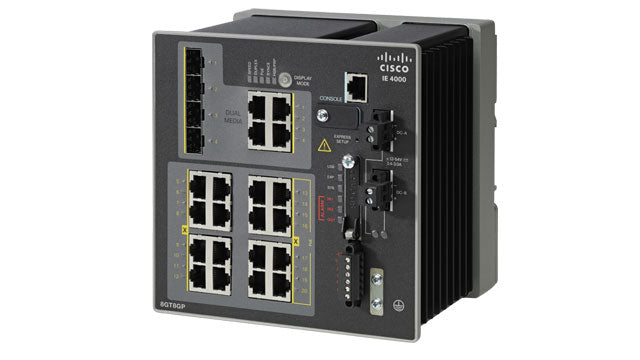

Cisco IE-4000-4GS8GP4G-E | IE 4000 4x SFP + 8-Port PoE+ Switch, 125W, LAN Base

SKU:IE-4000-4GS8GP4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Industrial Ethernet 4000 Series IE-4000-4GS8GP4G-E is a DIN-rail, ruggedised Layer 2 Gigabit industrial Ethernet switch built for harsh manufacturing, energy, transportation and smart city environments. It runs Cisco IOS with the LAN Base feature set.

This SKU provides 16 ports in total: 4 Gigabit SFP ports, 8 Gigabit PoE/PoE+ copper ports and 4 Gigabit combo uplink ports that take either SFP or RJ45 (one of each combo pair active at a time). The PoE budget is 125W across the 8 PoE+ ports, supporting 802.3af and 802.3at devices. It delivers 20 Gbps non-blocking switching capacity with line-rate forwarding on all ports and packet sizes. Power is a redundant DC input, nominal 9.6 to 60 VDC. It ships with the LAN Base licence and can be upgraded to IP Services.

It supports FE and GE SFPs, including industrial-temperature GLC--RGD= models such as GLC-SX-MM-RGD= and GLC-LX-SM-RGD=. PoE-capable DIN-rail power supplies include PWR-IE65W-PC-AC=, PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. It is managed through Cisco Catalyst Center and Industrial Network Director.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ruggedised design hardened for vibration, shock, surge and noise immunity
- Ring redundancy with REP, PRP, MRP, HSR, EtherChannel and Flex Links
- Industrial automation protocols: EtherNet/IP (CIP), PROFINET and Modbus TCP
- IEEE 1588v2 PTP, CIP Time Sync and NTP-to-PTP translation
- SwapDrive zero-config replacement for fast recovery after a failure
- Layer 2 switching with 1:1 static NAT and IPv4 static routing
- Security including 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, SSH, SNMPv3, TACACS+/RADIUS and secure boot
- Web-based Device Manager GUI and management via Cisco Catalyst Center and Industrial Network Director

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 16
- SFP ports: 4 x GE
- PoE/PoE+ ports: 8 x GE (802.3af/802.3at)
- Combo uplinks: 4 x GE (SFP or RJ45, one of each pair active)
- Maximum PoE budget: 125W
- Switching capacity: 20 Gbps non-blocking
- Forwarding rate: line rate for all ports and packet sizes
- Default software licence: LAN Base
- Memory: 1GB DRAM
- Flash: 128 MB onboard plus 1 GB removable SD card
- Console and management: Mini-USB and RJ-45
- Alarm I/O: two alarm inputs, one alarm output relay
- Input voltage: redundant DC, nominal 9.6 to 60 VDC
- Maximum input current: 4.3A
- Power consumption: 40W excluding PoE
- Egress queues: 4
- Unicast MAC addresses: 16,000
- VLANs: 1,000
- IGMP multicast groups: 1,000
- Operating temperature: -40C to +75C (enclosure conditions apply)
- Storage temperature: -40 to +85C
- Humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- Dimensions (H x W x D): 155.4 x 155.4 x 129.2 mm
- Weight: 2.88 kg
- Mounting: DIN rail
- MTBF: 536,220 hours

FAQs

Q: Which software licence does this switch ship with?
A: It ships with the LAN Base feature set. It can be upgraded to IP Services using L-IE4000-RTU=.

Q: How much PoE does it provide?
A: It provides a 125W PoE budget across 8 Gigabit PoE+ ports, supporting 802.3af at 15.4W and 802.3at at 25.5W per port. The total switch and PoE load must stay within the power supply rating.

Q: Which power supplies suit this switch?
A: It takes a redundant DC input, nominal 9.6 to 60 VDC. PoE-capable DIN-rail options include PWR-IE65W-PC-AC=, PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. The PWR-IE50W-AC= variants do not support PoE.

Q: Which SFPs work with it?
A: It supports a wide range of FE and GE SFPs, including industrial-temperature GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-T-RGD=. Non-industrial SFPs need operating-temperature derating.

Q: Can the combo uplink ports use both SFP and RJ45 at once?
A: No. For each of the 4 combo uplinks, only one of the SFP or RJ45 interfaces is active at a time.
