Cisco

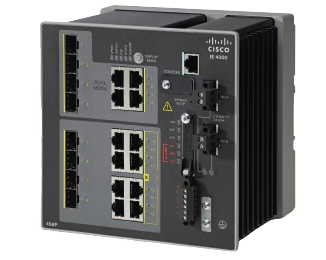

Cisco IE-4000-4GC4GP4G-E | IE 4000 12-Port Industrial Switch, 4x PoE+ 125W, LAN Base

SKU:IE-4000-4GC4GP4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IE 4000 is a DIN-rail, ruggedised Layer 2 Gigabit managed switch from the Cisco Industrial Ethernet 4000 Series. It suits manufacturing, energy and utility substations, transportation, ITS and smart city deployments, including outdoor areas, warehouses, distribution centres and roadways. It can power IP cameras, wireless access points, IP phones and badge readers over its PoE+ ports.

This model provides 12 Gigabit ports in total: 4 GE combo (SFP or RJ45) uplink ports, 4 additional GE combo (SFP or RJ45) ports and 4 GE PoE/PoE+ ports with a 125W maximum PoE power budget. Switching capacity is 20 Gbps non-blocking, with line-rate forwarding on all ports and packet sizes. It ships with the LAN Base feature set and can be upgraded to IP Services using the L-IE4000-RTU= electronic licence. Power is a redundant DC input of 9.6 to 60VDC, and the operating temperature range is -40C to +75C.

The combo ports accept a wide range of Cisco FE/GE SFPs, including industrial-temperature types such as GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-T-RGD=. The switch can be managed through the web-based Device Manager, Cisco Catalyst Center or Industrial Network Director.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ruggedised design hardened for vibration, shock, surge and noise immunity in harsh industrial environments
- Dual ring resiliency over the GE uplink ports, with REP, PRP, MRP, HSR, EtherChannel and Flex Links support
- Redundant DC power input with dying gasp
- Industrial Ethernet protocols including EtherNet/IP (CIP), PROFINET v2, Modbus TCP and IEEE 1588 PTP v2
- Layer 2 switching with 1:1 static NAT, IPv4 static routing and IPv6 host support
- Security features including 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, SSH, SNMPv3, TACACS+, RADIUS and secure boot
- SwapDrive zero-configuration replacement for fast recovery after a switch failure
- Managed by Cisco Catalyst Center or Industrial Network Director, and can act as an SDA extended node

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 12
- GE combo (SFP or RJ45) uplinks: 4
- Additional GE combo (SFP or RJ45) ports: 4
- PoE/PoE+ ports: 4 GE
- PoE power budget: 125W maximum
- Switching capacity: 20 Gbps non-blocking
- Forwarding rate: Line rate for all ports and all packet sizes
- Software feature set: LAN Base (upgradeable to IP Services)
- Memory: 1GB DRAM
- Flash: 128 MB onboard flash
- Console connectors: Mini-USB and RJ-45
- Alarm I/O: two alarm inputs and one alarm output relay
- Number of queues: 4 egress
- Unicast MAC addresses: 16,000
- IGMP multicast groups: 1,000
- Number of VLANs: 1,000
- Input voltage: Redundant DC, nominal 9.6 to 60VDC
- Maximum input current: 4.3A
- Power consumption: 40W excluding PoE (measured at 9.6V)
- Dimensions (H x W x D): 155.4 x 155.4 x 129.2 mm
- Weight: 2.88 kg
- Operating temperature: -40C to +75C
- Storage temperature: -40C to +85C
- Humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- MTBF: 550,940 hours
- Mounting: DIN rail

FAQs

Q: Which licence does this switch run?
A: It ships with the LAN Base feature set. It can be upgraded to IP Services using the L-IE4000-RTU= electronic RTU licence.

Q: How is the switch powered?
A: It uses a redundant DC input of nominal 9.6 to 60VDC with a maximum input current of 4.3A. Compatible DIN-rail supplies include PWR-IE65W-PC-AC=/DC=, PWR-IE170W-PC-AC=/DC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. The switch plus PoE load must stay within the supply rating.

Q: How many ports provide PoE and how much power is available?
A: Four GE ports support IEEE 802.3af and 802.3at PoE/PoE+, sharing a 125W maximum PoE power budget.

Q: Which SFPs work in the combo ports?
A: A wide range of Cisco FE/GE SFPs is supported, including industrial-temperature types such as GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-T-RGD= and GLC-BX40-U-I=, plus CWDM and DWDM SFPs.

Q: Can it be rack mounted?
A: It is a DIN-rail switch. The STK-RACK-DINRAIL= kit adapts it for 19-inch rack mounting.
