Cisco

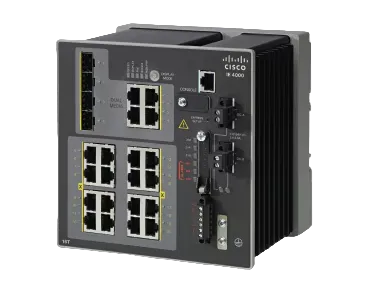

Cisco IE-4000-16GT4G-E | IE 4000 16-Port Gigabit Industrial Switch, LAN Base

SKU:IE-4000-16GT4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IE 4000 series is a DIN-rail ruggedised Gigabit industrial Ethernet switch running Cisco IOS, built for manufacturing, energy, transportation and smart city networks. It also suits substation, utility and rail deployments, including ring-topology designs.

This non-PoE model provides 16 x 10/100/1000 RJ45 copper ports plus 4 x Gigabit combo uplinks, each of which can run as RJ45 or SFP with one active per port. All ports forward at line rate, and it ships with the LAN Base feature set, upgradable to IP Services for advanced routing and security. It is rated for -40 to +75 C operation and IP30 protection, with a redundant DC input of 9.6 to 60 VDC.

The combo uplinks accept Cisco SFPs, including industrial-temperature types. Management is through the built-in Device Manager, Industrial Network Director (IND) or Cisco Catalyst Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS software with GUI-based Device Manager and Express Setup
- Industrial protocols including CIP Ethernet/IP, PROFINET v2 and IEEE 1588 PTPv2
- Ring redundancy with REP, MRP, PRP and HSR
- Layer 2 security including 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and port security
- Secure boot with built-in software image verification
- 1:1 static NAT in Layer 2 mode and IPv4 static routing
- Utility-grade support including GOOSE, Modbus TCP/IP and Power Profile 2011/2017
- Managed by Industrial Network Director (IND) and Cisco Catalyst Center
- Compliance with IEEE 1613, IEC 61850-3, EN 50155 and NEMA TS-2

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Copper ports: 16 x 10/100/1000 RJ45
- Uplinks: 4 x Gigabit combo (RJ45 or SFP, one active per port)
- Total ports: 20
- PoE: None (non-PoE model)
- Software feature set: LAN Base (upgradable to IP Services)
- DRAM: 1 GB
- Onboard flash: 128 MB
- Removable storage: 1 GB SD flash memory card
- Console: Mini-USB and RJ-45
- Alarm I/O: two alarm inputs, one alarm output relay
- Input voltage: redundant DC input, 9.6 to 60 VDC
- Maximum input current: 4.3 A
- Power consumption: 40 W
- Forwarding rate: line rate on all ports and all packet sizes
- Unicast MAC addresses: 16,000
- VLANs: 1,000
- IGMP multicast groups: 1,000
- Egress queues: 4
- Operating temperature: -40 to +75 C
- Storage temperature: -40 to +85 C
- Ingress protection: IP30
- Dimensions (H x W x D): 155.4 x 155.4 x 129.2 mm
- Weight: 2.88 kg
- MTBF: 558,630 hours

FAQs

Q: What licence does this switch ship with?
A: It ships with the LAN Base feature set by default. It can be upgraded to the IP Services licence, which adds PIM multicast, OSPF, EIGRP, BGP, VRF-lite and MACsec.

Q: Does it support PoE?
A: No. This model has no PoE or PoE+ ports, so it is intended for devices that are powered separately.

Q: How is the switch powered?
A: It runs from a redundant DC input of 9.6 to 60 VDC and draws about 40 W. Compatible Cisco power supplies include PWR-IE50W-AC=, PWR-IE65W-PC-AC=, PWR-IE170W-PC-AC= and PWR-IE240W-PCAC-L=.

Q: Which SFPs work in the combo uplinks?
A: The 4 combo uplinks accept Cisco SFPs, including GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and the GLC-FE-100 and GLC-BX40 families. Only one of the RJ45 or SFP interface on each combo port is active at a time.

Q: How does this differ from other IE 4000 SKUs?
A: This SKU has 16 copper Gigabit ports and 4 combo Gigabit uplinks with no PoE, and ships with LAN Base. Other IE 4000 variants differ in port mix, PoE support and uplink speed.
