Cisco

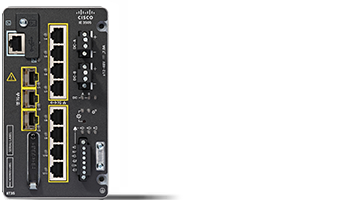

Cisco IE-3505-8T3S-E | Catalyst IE3500 8-Port Industrial Switch, Network Essentials

SKU:IE-3505-8T3S-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 Rugged Series IE3505 is a fanless, DIN-rail mounted industrial Ethernet switch built for harsh-environment OT networks. It suits industrial automation, machine vision, intelligent transportation and utility substation deployments, including lossless-redundancy ring topologies that extend the IT fabric into operational technology.

This Advanced Modular variant provides 11 fixed ports: 8 x 10/100/1000 RJ45 copper ports (non-PoE) and 3 x 1G/100M SFP ports. As an IE3505 model it supports PRP and HSR for lossless redundancy. It runs on dual DC power inputs, 12-48 V DC nominal with a 7 A input current and 41 W typical consumption, and operates from -40 to +75 C depending on enclosure and airflow conditions. The -E SKU includes the perpetual Network Essentials licence, which carries MACsec-128.

The base unit can be expanded to up to 27 ports with IEM-3500 expansion modules, and it takes Cisco SFP optics in its three SFP ports. It is managed through the on-device WebUI or CLI, Catalyst Center or the Meraki dashboard, and it runs IOS XE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, convection-cooled rugged design hardened for shock, vibration, surge and electrical noise
- PRP and HSR lossless redundancy, plus REP, MRP and DLR resiliency protocols
- TSN frame preemption (IEEE 802.1Qbu / 802.3br)
- Secure Boot with Cisco Trust Anchor Module and MACsec-128
- IOx application hosting for Cisco Cyber Vision, Secure Equipment Access and ThousandEyes
- Industrial protocols including EtherNet/IP (CIP), PROFINET, PTP IEEE 1588 v2, GOOSE and Modbus TCP
- Swap Drive zero-configuration replacement
- Expandable to up to 27 ports with IEM-3500 modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 11
- Copper ports: 8 x 10/100/1000 RJ45 (non-PoE)
- SFP ports: 3 x 1G/100M
- Licence: Network Essentials (perpetual)
- Redundancy: PRP and HSR (IE3505)
- Power inputs: Dual DC
- Input voltage: 12 to 48 V DC nominal, 9.6 to 60 V absolute
- Input current: 7 A
- Power consumption: 41 W (at 12 V, excludes PoE load)
- Console ports: 1 RS-232 (via RJ-45), 1 USB Type-C
- Alarms: 2 in, 1 out
- Forwarding rate: Line rate on all ports and packet sizes
- Queues: 8
- Unicast MAC addresses: 24000
- Active VLANs: 1024 (4096 VLAN IDs)
- Access control entries: 1536
- Flash (user accessible): 5.1 GB
- Jumbo frames: 9198 bytes
- Dimensions (W x H x D): 8.84 x 15.24 x 13.44 cm
- Weight: 1.79 kg
- Mounting: DIN rail
- Operating temperature: -40 to +75 C (200 LFM enclosure)
- Storage temperature: -40 to +85 C
- Humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- MTBF (Telcordia Issue 4): 496,476 hours

FAQs

Q: Does this switch need a separate licence?
A: No. The -E SKU includes the perpetual Network Essentials licence. The higher Network Advantage tier is available on the -A SKUs and adds a bundled Cyber Vision and Secure Equipment Access licence.

Q: Does it support PoE?
A: No. This is a non-PoE model. If you need PoE ports, IEM-3500-8P= and IEM-3500-16P= expansion modules are available.

Q: What power supply does it need?
A: It runs from dual DC inputs, 12-48 V DC nominal, and requires an external DIN-rail power supply such as PWR-IE50W-AC=, PWR-IE65W-PC-AC=, PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L= or PWR-IE480W-PCAC-L=.

Q: Can I add more ports?
A: Yes. The IE3500 accepts IEM-3500 expansion modules, including IEM-3500-8T=, IEM-3500-16T=, IEM-3500-8S=, IEM-3500-6T2S=, IEM-3500-14T2S=, IEM-3500-8P=, IEM-3500-16P= and IEM-3500-4MU=, for up to 27 ports.

Q: How does this differ from the other IE3500 SKUs?
A: This model is the IE3505 Advanced Modular variant with 8 copper and 3 SFP ports, PRP/HSR support and the Network Essentials licence. Other SKUs differ in port mix, PoE capability and licence tier.
