Cisco

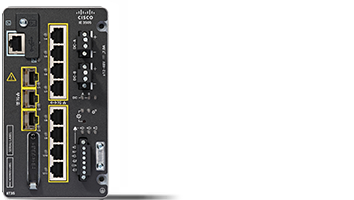

Cisco IE-3505-8T3S-A | Catalyst IE3505 8-Port Gigabit Switch, 3x 1G SFP, Network Advantage

SKU:IE-3505-8T3S-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3505 is a DIN-rail, fanless rugged industrial Ethernet switch from the Catalyst IE3500 family, built for factory automation, machine vision, intelligent transportation systems and utility substations. It suits harsh-environment deployments that need Layer 3 routing, SD-Access extension into the OT network and integrated OT security visibility.

This non-PoE model provides 8 x 10/100/1000 RJ45 copper ports and 3 x 1G/100M SFP uplinks, giving 11 fixed ports with line-rate forwarding on all of them. It is modular and takes IEM-3500 expansion modules, growing to as many as 27 ports. It runs from dual DC power inputs, 12-48V nominal, and operates from -40 C to +70 C, or up to +75 C with forced airflow. The IE3505 variant adds PRP, HSR and DLR redundancy support alongside REP and MRP ring protocols.

The -A suffix means it ships with the perpetual Network Advantage licence, which includes all Network Essentials features plus Layer 3 routing with OSPF, BGP, IS-IS and EIGRP. A 3-year, 24-endpoint Cisco Cyber Vision and Secure Equipment Access licence is included with the Network Advantage licence. It is compatible with IEM-3500-8P=, -16P=, -8S=, -8T=, -16T=, -6T2S=, -14T2S= and -4MU= expansion modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, convection-cooled design with no moving parts, built for -40 C to +75 C environments
- Hardened for industrial shock, vibration, surge and electrical noise
- Modular design expandable to 27 ports with IEM-3500 expansion modules in copper, fibre and PoE options
- Cisco Trust Anchor Module with secure boot, plus MACsec-256 and Cisco TrustSec support
- Layer 3 routing with OSPF, BGP, IS-IS, EIGRP, HSRP, VRF-lite, PIM multicast and NAT
- Cisco SD-Access fabric edge and BGP-EVPN leaf node support
- Industrial protocols including EtherNet/IP (CIP), PROFINET, IEEE 1588 PTP v2, TSN frame pre-emption, REP and MRP
- IOx application hosting and Flexible NetFlow with IPFIX export

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Fixed ports: 11 in total
- Copper ports: 8 x 10/100/1000 RJ45 (non-PoE)
- Uplink ports: 3 x 1G/100M SFP
- Expansion: IEM-3500 modules, up to 27 ports
- Software licence: Network Advantage (perpetual)
- Redundancy: PRP, HSR and DLR (IE3505 variant)
- Power inputs: Dual DC
- Input voltage: 12V to 48V nominal, 9.6V to 60V absolute
- Input current: 7A
- Power consumption: 41W (measured at 12V)
- Forwarding rate: Line rate for all ports and all packet sizes
- Queues: 8
- Unicast MAC addresses: 24000
- Active VLANs: 1024
- IGMP multicast groups: 1024
- Flash (user accessible): 5.1 GB
- Removable storage: USB, SD card (optional)
- Alarms: 2 alarms in, 1 alarm out
- Console ports: 1 RS-232 (RJ-45), 1 USB Type C
- Jumbo frames: 9198 bytes
- Operating temperature: -40 C to +70 C (40 LFM vented enclosure)
- Storage temperature: -40 C to +85 C
- Relative humidity: 5% to 95% non-condensing
- Dimensions (H x W x D): 8.84 x 15.24 x 13.44 cm
- Weight: 1.79 kg
- Mounting: DIN rail, fanless, IP30
- MTBF (Telcordia Issue 4): 496,476 hrs

FAQs

Q: Does this switch need a separate software licence?
A: No. The -A suffix means it ships with the perpetual Network Advantage licence, which includes all Network Essentials features. A 3-year, 24-endpoint Cisco Cyber Vision and Secure Equipment Access licence is also included with the Network Advantage licence.

Q: Does it support Power over Ethernet?
A: No. This is a non-PoE model with no PoE budget. If you need PoE ports, the IEM-3500-8P= and IEM-3500-16P= expansion modules add PoE capability.

Q: What power does it need?
A: It uses dual DC power inputs, 12-48V nominal (9.6-60V absolute), at up to 7A. Power consumption is 41W measured at 12V. Cisco DIN-rail power supplies such as PWR-IE50W-AC= and PWR-IE65W-PC-DC= suit non-PoE use.

Q: Which expansion modules does it work with?
A: It works with IEM-3500-8P=, -16P=, -8S=, -8T=, -16T=, -6T2S=, -14T2S= and -4MU= modules, expanding the switch to as many as 27 ports.

Q: How is it managed?
A: It can be managed through the on-device WebUI or CLI, or through Catalyst Center on-premises. It also supports Meraki dashboard management on IOS XE 26.1.1 and above.

Q: How does it differ from other IE3500 variants?
A: This IE3505 SKU is the non-PoE 8-port copper and 3x 1G SFP model with Network Advantage licensing, and it adds PRP, HSR and DLR redundancy support that other IE3500 variants do not offer.
