Cisco

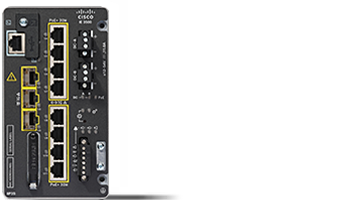

Cisco IE-3505-8P3S-E | Catalyst IE3500 8-Port PoE+ Switch, 3x SFP, Essentials

SKU:IE-3505-8P3S-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 Rugged Series IE3505 is a fanless, DIN-rail industrial Ethernet switch built for harsh operational technology environments such as factory automation, machine vision, intelligent transportation, utility substations and railway. It suits sites that need to power IP cameras, wireless access points and PLCs over PoE while running reliably from -40 to +75 C in a suitably cooled enclosure.

This Adv. Modular variant provides 8 x 10/100/1000 PoE/PoE+ RJ-45 ports and 3 x 1G/100M SFP uplinks, giving 11 fixed ports. The base switch offers a 240W PoE budget, rising to 480W when an expansion module is fitted, and IEM-3500 expansion modules can grow the port count to 19 or 27. It ships with the perpetual Network Essentials licence, covering Layer 3 static routing, OSPF, RIP and policy-based routing, plus MACsec-128. As an IE3505 model it also adds HSR and PRP lossless redundancy, alongside REP, MRP and DLR ring protocols.

The switch has dual DC power inputs (12 to 54V nominal) and no internal power supply, so an external DIN-rail supply sized for the switch, any expansion module and the PoE load is required. It supports Cisco industrial, commercial and extended Gigabit SFPs, and can be managed through the on-device WebUI or CLI, Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, convection-cooled rugged design with shock, vibration, surge and noise immunity
- HSR and PRP lossless redundancy on IE3505 models, plus REP, MRP and DLR ring resiliency
- TSN frame preemption (IEEE 802.1Qbu / 802.3br)
- Secure Boot with Cisco Trust Anchor Module, MACsec-128 and Cisco TrustSec segmentation
- Fast and Perpetual PoE
- Layer 3 static routing, OSPF, RIP and PBR on Network Essentials
- Industrial protocols including CIP, PROFINET, IEEE 1588 PTP v2, MODBUS TCP and GOOSE classification
- Hosts IOx applications such as Docker containers and Cyber Vision, managed via WebUI/CLI, Catalyst Center or Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Copper ports: 8 x 10/100/1000 PoE/PoE+ RJ-45
- SFP ports: 3 x 1G/100M
- Total fixed ports: 11 (expandable to 19 or 27 with IEM-3500 modules)
- PoE budget (base switch): 240W
- PoE budget (including expansion module): 480W
- Software licence: Network Essentials (perpetual)
- Forwarding rate: Line rate for all ports and packet sizes
- Queues: 8
- Unicast MAC addresses: 24000
- Active VLANs: 1024
- VLAN IDs: 4096
- IPv4 indirect routes: 7000
- IPv6 indirect routes: 3500
- STP instances: 128
- Access control entries: 1536
- Flash (user accessible): 5.1 GB
- Jumbo frames: 9198 bytes
- Alarms: 2 in, 1 out
- Console ports: 1 RS-232 (RJ-45), 1 USB Type-C
- Power inputs: Dual DC, 12 to 54V nominal
- Input current: 11A
- Power consumption: 42W excluding PoE load
- Dimensions (W x H x D): 10.11 x 15.24 x 13.44 cm
- Weight: 1.97 kg
- Mounting: DIN rail
- Operating temperature: -40 to +75 C (200 LFM forced-air enclosure)
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing
- MTBF (Telcordia Issue 4): 454,728 hours

FAQs

Q: Which software licence does this SKU include?
A: The -E suffix denotes the perpetual Network Essentials licence. Network Advantage adds BGP, EIGRP, IS-IS, VRF-lite, SD-Access fabric edge, L3NAT and MACsec-256, and is available as the -A SKU or an upgrade.

Q: How is the switch powered?
A: It has dual DC inputs (12 to 54V nominal) and no internal power supply. PoE needs 48VDC and PoE+ needs 54VDC, so a PoE-capable external DIN-rail supply such as PWR-IE170W-PC-AC, PWR-IE240W-PCAC-L or PWR-IE480W-PCAC-L is used, sized for the switch, any expansion module and the PoE load.

Q: How much PoE power is available?
A: The base switch provides a 240W PoE budget, increasing to 480W when an expansion module is fitted. The 8 copper ports support PoE and PoE+.

Q: Can I add more ports?
A: Yes. IEM-3500 expansion modules (IEM-3500-8P=, 16P=, 8S=, 8T=, 16T=, 6T2S=, 14T2S= and 4MU=) take the total to 19 or 27 ports.

Q: Can it be managed from the cloud?
A: It can be managed through the on-device WebUI or CLI, Catalyst Center or the Meraki dashboard. Meraki support for the base switch requires IOS XE 26.1.1 or later.
