Cisco

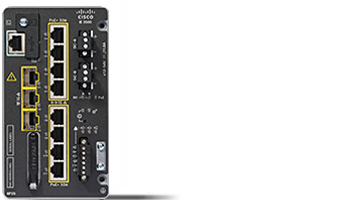

Cisco IE-3505-8P3S-A | Catalyst IE3500 8-Port PoE+ Rugged Switch, Network Advantage

SKU:IE-3505-8P3S-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 is a fanless, DIN-rail industrial Ethernet switch built for harsh environments such as factory automation, intelligent transportation systems, electrical substations and rail. This IE3505 Advanced Modular variant suits PoE endpoints like IP cameras, wireless access points, PLCs and machine-vision systems, and helps extend the IT fabric into OT networks.

It provides 8 Gigabit RJ45 ports with PoE/PoE+ and 3 x 1G/100M SFP uplink ports, 11 fixed ports in total. The base switch delivers a 240W PoE budget, rising to 480W when an IEM-3500 expansion module is added, and the port count can be expanded up to 27 ports. Forwarding is line rate on all ports and packet sizes. This SKU adds HSR and PRP lossless redundancy alongside MRP, REP and DLR, and ships with the Network Advantage licence, which includes all Network Essentials features.

Power is supplied through dual DC inputs, 12-54 VDC nominal, with 54 VDC required for PoE+. The switch operates from -40 to +75 C in a fan or blower-equipped enclosure and carries an IP30 rating. It is compatible with the IEM-3500 expansion module range and the SD-IE-16GB= SD card.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.1Qbu / 802.3br frame pre-emption to reduce jitter and delay for time-sensitive traffic
- HSR and PRP lossless redundancy, plus MRP, REP and DLR
- Fanless, convection-cooled design with no moving parts, hardened for industrial shock, vibration and surge
- Fast PoE and Perpetual PoE for quick endpoint boot and uninterrupted power
- Secure Boot with hardware root of trust and MACsec-256 support
- Cisco TrustSec policy-based segmentation
- IOx application hosting, including Cyber Vision and Secure Equipment Access
- Layer 3 support with SD-Access Fabric Edge and BGP-EVPN
- Swap Drive zero-configuration replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 8 x 10/100/1000 RJ45 PoE/PoE+
- Uplinks: 3 x 1G/100M SFP
- Total fixed ports: 11, expandable up to 27 with IEM-3500 modules
- PoE budget: 240W base switch, 480W with expansion module
- Licence: Network Advantage
- Forwarding rate: Line rate on all ports and packet sizes
- Power inputs: Dual DC
- Input voltage: 12 to 54 VDC nominal, 9.6 to 60 VDC absolute
- PoE voltage: 48 VDC for PoE, 54 VDC for PoE+
- Power consumption: 42W excluding PoE load
- Console: 1 RS-232 (RJ-45), 1 USB Type C
- Alarms: 2 in, 1 out
- Active VLANs: 1024
- Unicast MAC addresses: 24000
- Number of queues: 8
- Flash: 5.1 GB user accessible
- Jumbo frames: 9198 bytes
- Operating temperature: -40 to +75 C with fan/blower-equipped enclosure
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- Mounting: DIN rail, fanless
- Dimensions (W x H x D): 10.11 x 15.24 x 13.44 cm
- Weight: 1.97 kg
- Hazardous locations: Class I Div 2 / Zone 2

FAQs

Q: Which licence does this switch ship with?
A: It ships with the Network Advantage perpetual licence, which includes all Network Essentials features. Optional Cisco DNA Essentials or Advantage term licences are available for Catalyst Center.

Q: What PoE budget does it provide?
A: The base switch provides 240W of PoE. Adding an IEM-3500 expansion module raises the total PoE budget to 480W.

Q: What power input does it need?
A: It uses dual DC inputs, 12-54 VDC nominal. 48 VDC is needed for PoE and 54 VDC for PoE+. DIN-rail supplies such as PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L= are options, sized to cover the switch, any expansion module and the PoE load.

Q: Which expansion modules work with it?
A: It works with IEM-3500-8P=, IEM-3500-16P=, IEM-3500-8T=, IEM-3500-16T=, IEM-3500-8S=, IEM-3500-6T2S=, IEM-3500-14T2S= and IEM-3500-4MU=. PoE modules need a PoE-capable host, and HSR/PRP/DLR is not supported on IEM-3500-4MU=.

Q: How does this IE3505 variant differ from other IE3500 SKUs?
A: This Advanced Modular IE3505 variant adds HSR and PRP lossless redundancy and supports the 480W PoE budget with an expansion module, and it ships with Network Advantage licensing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
