Cisco

Cisco IE-3500H-12P2MU2XE | Catalyst IE3500H 14-Port PoE IP67 Switch, 240W, NE

SKU:IE-3500H-12P2MU2XE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

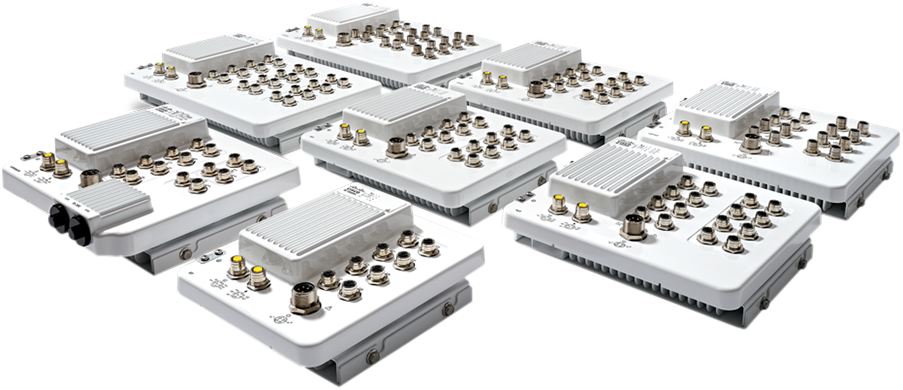

The Catalyst IE3500 Heavy Duty (IE3500H) is an IP67-rated industrial Ethernet switch built for dustproof, waterproof, wall-mounted deployments in harsh environments. It suits industrial and OT networks that connect machine vision systems, IP cameras, PLCs, high-speed wireless access points, and railway, vehicle and mining equipment.

This model provides 12 Gigabit M12 X-code ports and 2 mGig UPoE (4PPoE) M12 X-code ports, supplying a 240W PoE budget with up to 60W per port on the mGig ports. Two 10G/1G SFP/SFP+ uplinks handle aggregation, and the unit runs the perpetual Network Essentials licence tier. It operates from a single 12-54VDC input (44-54VDC for PoE) and is rated for -40C to +75C with 200 LFM airflow.

The uplinks accept industrial-grade 1G SFP and 10G SFP+ modules such as GLC-SX-MM-RGD, GLC-LX-SM-RGD, SFP-10G-SR-I and SFP-10G-ER-I, as well as SFP-H10G-CU1M, 3M and 5M passive twinax cables. The switch is managed through the WebUI, CLI or Cisco Catalyst Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Secure Boot with hardware-anchored root of trust
- MACsec-128 encryption and Cisco TrustSec policy-based segmentation
- IOx application hosting for Cyber Vision, Secure Equipment Access and ThousandEyes agents
- Fast and Perpetual PoE with PoE, PoE+ and 4PPoE up to 60W per port
- Swap Drive zero-configuration switch replacement
- Industrial protocols including CIP Ethernet/IP, PROFINET, Modbus TCP/IP and IEEE 1588 PTP v2
- REP and PROFINET MRP resiliency protocols
- SD-Access Extended Node support with Catalyst Center management
- NETCONF, RESTCONF and YANG automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 16
- 1000/100/10M M12 X-code ports: 12
- mGig/4PPoE (Type 3) M12 X-code ports: 2
- Uplinks: 2 x 10G/1G SFP/SFP+
- PoE budget: 240W, up to 60W per port on 4PPoE ports
- Software tier: Network Essentials
- Forwarding rate: Line rate for all ports for all packet sizes
- Unicast MAC addresses: 24000
- Active VLANs: 1024 (4096 VLAN IDs)
- Jumbo frames: 9198 bytes
- Input voltage: 12-54VDC (44-54VDC for PoE)
- Input current: 6A
- Power consumption: 45W at 54V, excluding PoE load
- Dimensions (H x W x D): 26.57 x 27.69 x 8.53 cm
- Weight including mounting bracket: 5.17 kg
- Mounting: Wall mount
- Operating temperature: -40C to +75C with 200 LFM airflow
- Ingress protection: IP66/IP67, UL 50E Type 4X
- Humidity: 5% to 95% non-condensing
- MTBF (Telcordia Issue 4): 352,809 hours
- Console ports: 1 (M12 A-coded 5-pin)
- Alarm: 1 output relay and 1 input

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Essentials licence. Network Advantage is available as an upgrade (IE3500-NW-A=), and Catalyst Center DNA licences are optional add-ons.

Q: What power input does it need?
A: It runs from a single DC input of 12-54VDC, with 44-54VDC required to power PoE. Input current is 6A and the unit draws 45W at 54V excluding PoE load.

Q: How much PoE can it supply?
A: The total PoE budget is 240W. The two mGig ports support 4PPoE (Type 3) with up to 60W per port.

Q: Which SFP and SFP+ modules work in the uplink ports?
A: The uplinks accept industrial-grade modules such as GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD, SFP-10G-SR-I, SFP-10G-ER-I and SFP-10G-ZR-I, plus SFP-H10G-CU1M, 3M and 5M passive twinax cables.

Q: What is needed to keep the IP67 rating when fitting SFPs?
A: The CW-SFP-KIT1 SFP installation kit and M25 adapters are required to maintain the IP67 rating.

Q: Does it support PRP or HSR redundancy?
A: No. PRP and HSR lossless redundancy is only available on the IE3505H variants. This model supports REP and PROFINET MRP.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
