Cisco

Cisco IE-3500H-12P2MU2XA | Catalyst IE3500H 14-Port PoE Switch, 240W, Network Advantage

SKU:IE-3500H-12P2MU2XA

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

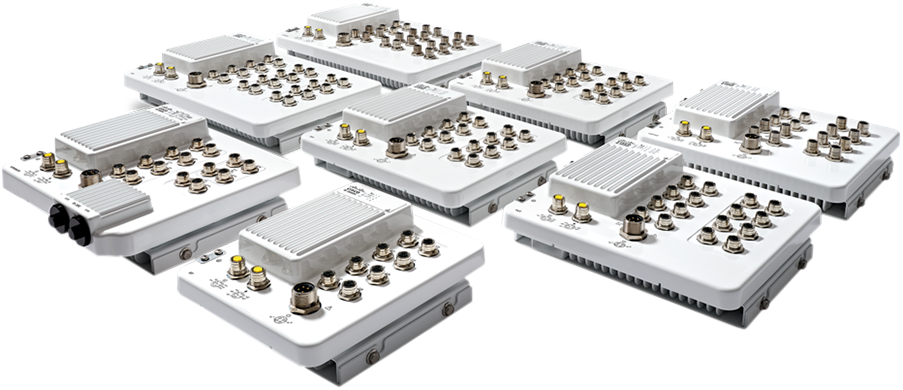

The Catalyst IE3500 Heavy Duty (IE3500H) is an IP67-rated managed industrial switch for harsh OT and IoT environments where dust, water and wide temperature swings rule out standard enclosures. It suits machine vision, rail and transportation networks, PLC connectivity, and high-power PoE or UPoE devices such as industrial access points and HD IP cameras.

This model provides 12 x 10/100/1000 M12 X-Code ports and 2 x mGig UPoE (4PPoE, Type 3) M12 X-Code ports, plus 2 x 10G/1G SFP+ uplinks, for 16 ports in total. The PoE budget is 240W across PoE, PoE+ and 4PPoE ports, up to 60W per port. Forwarding is line rate on all ports with 8 queues and 24,000 unicast MAC addresses. It is powered from a 12-54 VDC input (44-54 VDC for PoE) and operates from -40C to +75C with 200 LFM airflow. It carries IP66/IP67 and UL 50E Type 4X ratings and is wall mounted.

This SKU ships with the perpetual Network Advantage licence on IOS XE, which adds MACsec and includes a 3-year, 24-endpoint Cisco Cyber Vision and Secure Equipment Access licence. The SFP+ ports accept a range of Cisco GE SFPs and 10GE SFP+ optics, including SFP-10G-SR, SFP-10G-LR and SFP-H10G-CU twinax cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routing with OSPF, BGP, ISIS, EIGRP, HSRP, VRF-lite, PIM multicast, L2NAT and L3NAT
- Resiliency with REP, PROFINET MRP and REP Fast
- Secure Boot with a hardware-anchored root of trust and MACsec-128/256 encryption
- Cisco TrustSec segmentation (SGACL) and SD-Access Fabric Edge and Extended node support
- Cisco Cyber Vision and Secure Equipment Access hosted via IOx
- Fast and Perpetual PoE for rapid and uninterrupted powered-device operation
- Industrial protocols including EtherNet/IP, PROFINET, Modbus TCP/IP and IEEE 1588 PTP v2
- Full Flexible NetFlow with NetFlow v9 and IPFIX export
- Management via WebUI, CLI, NETCONF/RESTCONF/YANG and Catalyst Center

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 16
- 10/100/1000 M12 X-Code ports: 12
- mGig/4PPoE (Type 3) M12 X-Code ports: 2
- 10G/1G SFP+ uplink ports: 2
- PoE budget: 240W (PoE/PoE+/4PPoE, up to 60W per port)
- Software feature set: Network Advantage (IOS XE)
- Forwarding rate: line rate on all ports for all packet sizes
- Queues: 8
- Unicast MAC addresses: 24,000
- Active VLANs: 1,024 (4,096 VLAN IDs)
- IPv4 indirect routes: 7,000
- IPv6 indirect routes: 3,500
- Spanning Tree Protocol instances: 128
- Access control entries (PACLs): 1,536
- Flash (user accessible): 5.1 GB
- Jumbo frames: 9,198 bytes
- Alarm: 1 output relay and 1 alarm input (M12 A-coded 5-pin)
- Console port: 1 (M12 A-coded 5-pin)
- Input voltage: 12-54 VDC (44-54 VDC for PoE)
- Power consumption: 45W at 54V, excluding PoE load
- Dimensions (H x W x D): 26.57 x 27.69 x 8.53 cm
- Weight: 5.17 kg including mounting bracket
- Mounting: wall mount
- Operating temperature: -40C to +75C with 200 LFM airflow
- Ingress protection: IP66/IP67, UL 50E Type 4X
- MTBF (Telcordia Issue 4): 352,809 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Advantage licence, which includes all Network Essentials features. Cisco Catalyst Center DNA Essentials or Advantage licences are optional add-ons, and DNA Advantage can only be paired with Network Advantage.

Q: How is the switch powered and how much PoE does it provide?
A: It runs from a 12-54 VDC input, and 44-54 VDC is required to deliver PoE. The PoE budget is 240W across PoE, PoE+ and 4PPoE ports, up to 60W per port.

Q: Which optics work in the SFP+ uplink ports?
A: The two SFP+ ports support Cisco GE SFPs such as GLC-SX-MM-RGD and GLC-LX-SM-RGD, and 10GE SFP+ modules such as SFP-10G-SR, SFP-10G-LR and SFP-H10G-CU twinax cables. Non-industrial (EXT/COM) SFPs require operating temperature derating.

Q: How do I keep the IP67 rating when using the SFP+ ports?
A: M25 adapters and the CW-SFP-KIT1 SFP installation kit are needed to maintain IP67 sealing when SFP ports are in use.

Q: Does this model support PRP, HSR or DLR redundancy?
A: No. Lossless redundancy protocols (PRP, HSR and DLR) are available on IE3505H variants only. This model supports REP, PROFINET MRP and REP Fast for resiliency.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
