Cisco

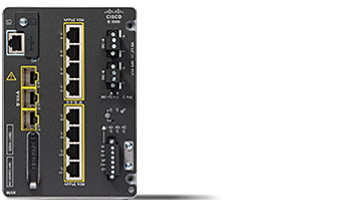

Cisco IE-3500-8U3X-E | Catalyst IE3500 8-Port PoE Rugged Switch, 480W, Network Essentials

SKU:IE-3500-8U3X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 Rugged Series IE-3500-8U3X-E is a DIN-rail, fanless industrial Ethernet switch built for industrial automation and machine vision, intelligent transportation systems, electric substations, railway and other harsh or hazardous-location OT networks. It suits PoE loads such as high-speed wireless access points, HD IP cameras and PLCs, and Cisco SD-Access can extend the IT fabric into the OT network.

The switch has 11 fixed ports: 8 Gigabit RJ45 ports supporting PoE, PoE+ and 4PPoE (up to 90W per port under 802.3bt Type 4), plus 3 10G/1G SFP+ uplinks. The total PoE budget is 480W. It ships with the Network Essentials perpetual licence, and an upgrade to Network Advantage is available as IE3500-NW-A=. It forwards at line rate on all ports and packet sizes, with 8 queues, 24,000 unicast MAC addresses and 1024 active VLANs. Operating temperature ranges from -40 to +75 C with airflow, and the switch is rated IP30.

Power comes from an external DIN-rail supply on the dual DC inputs (12V to 54V nominal). The 480W PWR-IE480W-PCAC-L= matches the full PoE budget. The base switch can grow to 27 ports with IEM-3500 expansion modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- TSN frame-preemption (IEEE 802.1Qbu / 802.3br) to reduce jitter and delay for time-sensitive control traffic
- Resiliency protocols including MRP, REP and DLR
- Secure Boot with a hardware-anchored root of trust
- Cisco TrustSec segmentation, MACsec and 802.1X security
- Fast and Perpetual PoE with up to 90W per port
- Fanless, convection-cooled design hardened against shock, vibration, surge and EMI
- Hazardous location support: Class I Div 2 / Zone 2 (cabinet enclosure required) and railway EN50121
- Management through on-device WebUI/CLI, Catalyst Center or the Meraki dashboard
- PTP (IEEE 1588v2) as a transparent or boundary clock

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total fixed ports: 11
- Downlink ports: 8 x 10/100/1000 RJ45 (PoE/PoE+/4PPoE)
- Uplink ports: 3 x 10G/1G SFP+
- PoE power budget: 480W
- Maximum PoE per port: 90W (802.3bt Type 4)
- Software image: Network Essentials
- Forwarding rate: line rate for all ports and packet sizes
- Queues: 8
- Unicast MAC addresses: 24,000
- Active VLANs: 1024 (4096 VLAN IDs)
- IPv4 indirect routes: 7000
- IPv6 indirect routes: 3500
- Flash (user accessible): 5.1 GB
- Optional SD card capacity: 16 GB
- Jumbo frames: 9198 bytes
- Alarms: 2 in, 1 out
- Console ports: 1 RS-232 (RJ-45), 1 USB Type C
- Power input: dual DC, 12V to 54V nominal (48V for PoE, 54V for PoE+)
- Power consumption: 49W at 54V, excluding PoE load
- Dimensions (W x H x D): 11.13 x 15.24 x 13.44 cm
- Weight: 2.29 kg
- Mounting: DIN rail
- Operating temperature: -40 to +75 C (minimum 200 LFM airflow)
- Ingress protection: IP30
- MTBF (Telcordia Issue 4): 474,807 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the Network Essentials perpetual licence, indicated by the -E suffix. An upgrade to Network Advantage is available as IE3500-NW-A=.

Q: What power supply does it need?
A: It needs an external DIN-rail supply on its dual DC inputs, 12V to 54V nominal, with 48V required for PoE and 54V for PoE+. The 480W PWR-IE480W-PCAC-L= matches the full 480W PoE budget, while the 170W and 240W supplies would limit the available PoE.

Q: Can I add more ports?
A: Yes. The IE3500 is modular and accepts IEM-3500 expansion modules (IEM-3500-8T=, -8S=, -16T=, -6T2S=, -14T2S=, -8P=, -16P= and -4MU=), expanding it to as many as 27 ports in total.

Q: What can I connect to the 10G uplink ports?
A: The three SFP+ uplinks accept 10G SFP+ modules such as SFP-10G-SR-I, SFP-10G-LR, SFP-10G-LR-X, SFP-10G-LR-S, SFP-10G-LRM and SFP-10G-ER, as well as 1G SFPs.

Q: How does this model differ from other IE3500 variants?
A: IE-3500-8U3X-E combines 8 Gigabit PoE/PoE+/4PPoE ports, 3 10G SFP+ uplinks, a 480W PoE budget and the Network Essentials licence.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
