Cisco

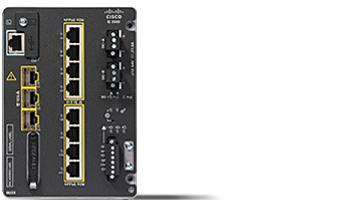

Cisco IE-3500-8U3X-A | Catalyst IE3500 8-Port PoE Rugged Switch, Network Advantage

SKU:IE-3500-8U3X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 Rugged Series switch is a DIN-rail, fanless industrial Ethernet switch built for operational technology networks. It suits factory automation and machine vision, intelligent transportation, railway and utility substation deployments, and can power high-wattage PoE devices such as cameras, wireless access points and PLCs in harsh environments.

This SKU provides 8 Gigabit RJ45 ports supporting PoE, PoE+ and 4PPoE (up to 90W per port) from a 480W PoE budget, plus three 10G/1G SFP+ uplink ports. It offers line-rate forwarding on all ports and packet sizes, 8 queues, 24,000 unicast MAC addresses and 1024 active VLANs. It runs from dual DC inputs (12V to 54V nominal, with 48VDC required for PoE and 54VDC for PoE+) and operates from -40 to +75 C in suitable enclosure conditions. It ships with the Network Advantage licence tier, which adds advanced routing, TrustSec, SD-Access fabric edge and a 3-year, 24-endpoint Cyber Vision and Secure Equipment Access term.

The switch supports IEM-3500 expansion modules (copper, PoE, SFP and 2.5G 4PPoE options) and a wide range of 1G and 10G SFP and SFP+ optics and DAC cables. It can be managed through the WebUI or CLI, Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Three 10G/1G SFP+ uplink ports for high-speed connectivity
- Up to 90W PoE per port (802.3bt 4PPoE) with Fast and Perpetual PoE
- TSN frame preemption (IEEE 802.1Qbu / 802.3br)
- Resiliency protocols including REP, PROFINET MRP and REP Fast
- Secure Boot with hardware-anchored root of trust and MACsec-128/256 support
- TrustSec segmentation, SD-Access Fabric Edge and Policy Extended Node, BGP-EVPN leaf node
- IOx application hosting including ThousandEyes Enterprise Agent
- Swap Drive zero-configuration switch replacement
- Full Flexible NetFlow with NetFlow v9 and IPFIX export
- Fanless, convection-cooled design hardened for shock, vibration, surge and EMI, with hazardous location and railway certifications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Product number: IE-3500-8U3X-A
- Total fixed ports: 11
- Copper ports: 8 x 10/100/1000 RJ45 (PoE/PoE+/4PPoE, up to 90W per port)
- Uplink ports: 3 x 10G/1G SFP/SFP+
- PoE budget: 480W (base switch and with expansion module)
- Licence: Network Advantage
- Forwarding rate: line rate on all ports and packet sizes
- Queues: 8
- Unicast MAC addresses: 24,000
- Active VLANs: 1024 (4096 VLAN IDs)
- IGMP multicast groups: 1024
- IPv4 indirect routes: 7000
- IPv6 indirect routes: 3500
- STP instances: 128
- Access control entries (PACL/VACL/RACL): 1536
- User-accessible flash: 5.1 GB
- SD card: 16 GB optional
- Jumbo frames: 9198 bytes
- Alarms: 2 inputs, 1 output
- Console: 1 RS-232 via RJ-45, 1 USB Type-C
- Power inputs: dual DC, 12V to 54V nominal (9.6V to 60V absolute)
- Input current: 11.5A
- Power consumption: 49W at 54V, excluding PoE load
- Dimensions (W x H x D): 11.13 x 15.24 x 13.44 cm
- Weight: 2.29 kg
- Mounting: DIN rail
- Operating temperature: -40 to +75 C (with 200 LFM airflow enclosure)
- Storage temperature: -40 to +85 C
- Humidity: 5% to 95% non-condensing
- MTBF (Telcordia Issue 4): 474,807 hours

FAQs

Q: Which licence does this switch use?
A: It uses the Network Advantage licence, which adds advanced routing (OSPF, BGP, ISIS, EIGRP, HSRP), VRF-lite, TrustSec, SD-Access fabric edge and L3 NAT on top of Network Essentials. It also includes a 3-year, 24-endpoint term of Cisco Cyber Vision and Secure Equipment Access.

Q: What power supply does it need?
A: It needs an external DC DIN-rail power supply covering the switch, any expansion module and the PoE load. 48VDC is required for PoE and 54VDC for PoE+. PoE-capable Cisco options include PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. The 50W PWR-IE50W-AC models do not support PoE.

Q: Can I add more ports to this switch?
A: Yes. It supports IEM-3500 expansion modules including IEM-3500-8T=, -8S=, -16T=, -6T2S=, -14T2S=, -8P=, -16P= and -4MU=, taking the switch to up to 27 total ports. PoE modules require a PoE-capable host.

Q: Which optics work in the SFP+ uplinks?
A: The uplinks accept 1G SFPs (GLC- and SFP-GE- families) and 10G SFP+ optics such as SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-10G-ZR, industrial -I variants, plus SFP-H10G-CU1M/3M/5M DAC cables and CWDM/DWDM SFPs.

Q: How is this switch managed?
A: It can be managed through the WebUI or CLI, Cisco Catalyst Center or the Meraki dashboard. Meraki support on the base switch needs IOS XE 26.1.1 or later.
