Cisco

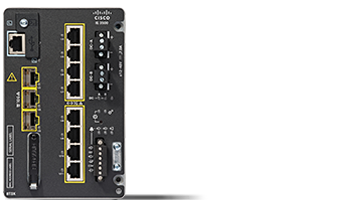

Cisco IE-3500-8T3X-E | Catalyst IE3500 8-Port Gigabit Rugged Switch, Network Essentials

SKU:IE-3500-8T3X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 Rugged Series IE-3500-8T3X-E is a DIN-rail, fanless industrial Ethernet switch built for harsh-environment OT networks. It suits industrial automation and manufacturing cells, intelligent transportation systems, rail and utility substations, as well as high-bandwidth aggregation or access deployments such as machine vision and IP cameras.

This SKU provides 8 Gigabit RJ45 copper ports and 3 x 10G/1G SFP/SFP+ uplink ports, giving 11 fixed ports with line-rate forwarding on every port and packet size. It is a non-PoE model with dual DC power inputs from 12V to 48V nominal, and it accepts IEM-3500 expansion modules to reach up to 27 total ports. It ships with the Network Essentials licence tier, which can be upgraded to Network Advantage.

The three uplinks take 10G SFP+ optics, SFP+ Twinax DAC cables and 1G SFPs, including SX, LX/LH, ZX, BX and GLC-T copper modules. An external DIN-rail power supply is required, such as the PWR-IE50W-AC= or PWR-IE170W-PC-AC=. Operating temperature extends from -40°C to +75°C with the specified airflow.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Time-Sensitive Networking frame-preemption (IEEE 802.1Qbu / 802.3br) to reduce jitter for control traffic
- Resiliency protocols including Media Redundancy Protocol (MRP) and Resilient Ethernet Protocol (REP) with REP Fast
- Secure Boot with hardware-anchored root of trust and MACsec-128 encryption
- IOx application hosting for Cisco Cyber Vision, Secure Equipment Access and ThousandEyes Enterprise Agent
- Industrial protocols: CIP EtherNet/IP, PROFINET and IEEE 1588 PTPv2
- Layer 3 routing with static routes, OSPFv3, RIP, policy-based routing and inter-VLAN routing
- Flexible NetFlow with NetFlow v9 and v10 (IPFIX) export
- Programmability through NETCONF, RESTCONF, gRPC/MDT and YANG
- Management via WebUI/CLI, Cisco Catalyst Center or Meraki dashboard on supported IOS XE releases

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Product number: IE-3500-8T3X-E
- Total ports (base switch): 11
- 1000/100/10M RJ45 copper ports: 8
- Uplink ports: 3 x 10G/1G SFP/SFP+
- PoE: Not supported (non-PoE model)
- Network licence: Network Essentials
- Forwarding rate: Line rate for all ports and all packet sizes
- Number of queues: 8
- Unicast MAC addresses: 24000
- IGMP multicast groups: 1024
- Active VLANs: 1024 (4096 VLAN IDs)
- IPv4 indirect routes: 7000
- IPv6 indirect routes: 3500
- STP instances: 128
- Access Control Entries (PACL/VACL/RACL): 1536
- User-accessible flash: 5.1 GB
- Jumbo frames: 9198 bytes
- Console ports: 1 RS-232 (RJ-45), 1 USB Type C
- Alarms: 2 alarm inputs, 1 alarm output
- Power inputs: Dual DC power input
- Input voltage range: 12V to 48V nominal, 9.6V to 60V absolute
- Input current: 7A
- Power consumption: 37W typical (measured at 12V)
- Dimensions (W x H x D): 10.11 x 15.24 x 13.44 cm
- Weight: 2.13 kg
- Mounting: DIN rail
- Operating temperature: -40°C to +75°C with minimum 200 LFM airflow
- Storage temperature: -40°C to +85°C
- Relative humidity: 5% to 95% non-condensing
- MTBF (Telcordia Issue 4): 518,082 hours

FAQs

Q: Which licence does the IE-3500-8T3X-E use?
A: It carries the Network Essentials (-E) perpetual licence tier. It can be upgraded to Network Advantage using IE3500-NW-A=, and Catalyst Center DNA Essentials or DNA Advantage licences are optional add-ons.

Q: Does it support PoE?
A: No. This is a non-PoE model and does not provide a PoE budget. PoE expansion modules such as the IEM-3500-8P= or -16P= need a PoE-capable host, so they are not usable on this base switch.

Q: How is it powered?
A: It uses dual DC inputs from 12V to 48V nominal (9.6V to 60V absolute) at up to 7A. Typical consumption is 37W. An external DIN-rail power supply is needed, for example the PWR-IE50W-AC=, PWR-IE65W-PC-AC/DC= or PWR-IE170W-PC-AC=.

Q: Can I add more ports?
A: Yes. It accepts IEM-3500 expansion modules such as the IEM-3500-8T=, -8S=, -16T=, -6T2S= and -14T2S=, for up to 27 total system ports.

Q: What optics fit the three uplink ports?
A: The uplinks take 10G SFP+ optics (SR, LR, ER, ZR, BX, CWDM/DWDM), SFP+ Twinax DAC cables in 1, 3 and 5 m lengths, and 1G SFPs including SX, LX/LH, ZX, BX and GLC-T copper.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
