Cisco

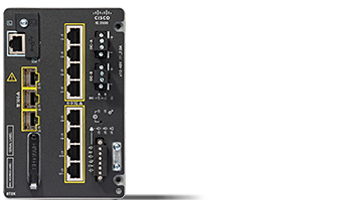

Cisco IE-3500-8T3X-A | Catalyst IE3500 8-Port Rugged Switch, 3x 10G SFP+, Network Advantage

SKU:IE-3500-8T3X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 is a DIN-rail mounted, fanless, modular Layer 2/3 industrial Ethernet switch built for harsh environments such as factory automation, ITS and traffic, rail and utility substations. This model suits operators who need 10G uplinks and OT cyber visibility in a rugged, convection-cooled chassis.

It provides eight 10/100/1000 RJ45 copper downlinks and three 10G/1G SFP+ uplinks, giving 11 fixed ports with line-rate forwarding on all ports and all packet sizes. This is the non-PoE variant. It ships with the Network Advantage tier, which includes all Network Essentials features and adds MACsec-256, Cisco TrustSec and Layer 3 routing such as OSPF, BGP, IS-IS, EIGRP and VRF-lite. Dual DC power inputs accept 12-48 V DC nominal, and the unit draws 37 W typical.

The port count can be expanded to 19 or 27 ports with IEM-3500 expansion modules. The SFP+ uplinks accept 1G and 10G optics, including SFP-10G-SR, SFP-10G-LR and SFP-H10G-CU DAC cables, as well as industrial GLC-RGD optics. Management is available through the WebUI and CLI, Cisco Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- TSN frame preemption (IEEE 802.1Qbu / 802.3br) to reduce jitter for time-sensitive control traffic
- Industrial resiliency with REP, REP Fast and PROFINET MRP
- Industrial protocols including CIP Ethernet/IP, PROFINET, IEEE 1588 PTPv2 and Modbus TCP/IP
- Secure Boot with hardware-anchored root of trust, MACsec-256 and Cisco TrustSec (SGACL)
- Layer 3 routing with OSPF, BGP, IS-IS, EIGRP, HSRP, VRF-lite, PIM and NAT
- SD-Access Fabric Edge and Policy Extended Node support
- Cisco Cyber Vision and Secure Equipment Access hosted via IOx
- Swap Drive zero-configuration switch replacement
- Programmability via NETCONF, RESTCONF and gRPC/MDT

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x 10/100/1000 RJ45 copper (non-PoE)
- Uplink ports: 3 x 10G/1G SFP+
- Total fixed ports: 11, expandable to 19 or 27 with IEM-3500 modules
- Software tier: Network Advantage
- Forwarding rate: line rate on all ports and all packet sizes
- Number of queues: 8
- Unicast MAC addresses: 24,000
- Active VLANs: 1,024 (4,096 VLAN IDs)
- IPv4 indirect routes: 7,000
- IPv6 indirect routes: 3,500
- Jumbo frames: up to 9198 bytes
- Flash (user accessible): 5.1 GB
- SD card support: up to 16 GB (optional)
- Console ports: 1 x RS-232 (RJ-45), 1 x USB Type-C
- Alarms: 2 inputs, 1 output
- Power input: dual DC, 12-48 V DC nominal (9.6-60 V DC absolute)
- Power consumption: 37 W
- Dimensions (W x H x D): 10.11 x 15.24 x 13.44 cm
- Weight: 2.13 kg
- Mounting: DIN rail
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Ingress protection: IP30
- MTBF (Telcordia Issue 4): 518,082 hours

FAQs

Q: Does this switch support PoE?
A: No. This is the non-PoE variant with eight Gigabit copper downlinks. PoE modules such as the IEM-3500-8P and IEM-3500-16P need a PoE-capable host switch, so they do not apply here.

Q: What licence does it ship with?
A: It ships with the Network Advantage perpetual licence, which includes all Network Essentials features. Optional Cisco Catalyst Center DNA and Meraki licences can be added separately.

Q: How can I add more ports?
A: The IE3500 is modular and accepts IEM-3500 expansion modules such as the IEM-3500-8T=, IEM-3500-16T=, IEM-3500-8S= and IEM-3500-6T2S=. These take the system to 19 or 27 ports.

Q: What optics work in the SFP+ uplinks?
A: The SFP+ uplinks accept 10G optics such as SFP-10G-SR, SFP-10G-LR and SFP-10G-ER, SFP-H10G-CU DAC cables, and 1G SFPs including the industrial GLC-RGD range.

Q: How is it powered?
A: It has dual DC inputs, 12-48 V DC nominal, and draws 37 W typical. Cisco DIN-rail supplies such as PWR-IE50W-AC= and PWR-IE65W-PC-AC= are suitable, and the supply must also cover any expansion module.
