Cisco

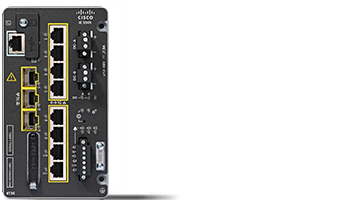

Cisco IE-3500-8T3S-E | Catalyst IE3500 8-Port Gigabit Switch, Network Essentials

SKU:IE-3500-8T3S-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 Rugged Series switch is a modular, DIN-rail industrial Ethernet switch built for factory automation, machine vision, intelligent transportation, utility substations and railway networks. It suits deployments that need Gigabit copper access with SFP fibre uplinks in harsh or hazardous environments.

This model has 8 x 10/100/1000 RJ45 copper ports and 3 x 1G/100M SFP uplink ports, 11 fixed ports in total. It is a non-PoE unit with dual DC power input, 12V to 48V nominal, and draws 29W at 12V. It forwards at line rate on all ports and all packet sizes, and the fixed port count can be expanded to up to 27 ports with IEM-3500 expansion modules. The fanless design is rated from -40°C to +75°C with a 200 LFM airflow enclosure.

It ships with the perpetual Network Essentials licence, covering Layer 2 switching, basic Layer 3 routing, security, industrial Ethernet and IOx features. The Network Advantage upgrade is IE3500-NW-A=. Compatible expansion modules include IEM-3500-8T=, IEM-3500-16T=, IEM-3500-8S=, IEM-3500-6T2S= and IEM-3500-14T2S=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, convection-cooled industrial design hardened against shock, vibration, surge and electrical noise
- Resiliency with REP, PROFINET MRP and REP Fast
- TSN frame preemption (IEEE 802.1Qbu and 802.3br)
- Secure Boot with hardware-anchored root of trust in the Cisco Trust Anchor Module
- MACsec-128 and Cisco TrustSec segmentation support
- IOx application hosting for Cisco Cyber Vision, Secure Equipment Access and ThousandEyes Enterprise Agent
- Industrial protocols including CIP Ethernet/IP, PROFINET, IEEE 1588 PTPv2 and Modbus TCP/IP
- Layer 3 routing with static routing, OSPF/OSPFv3, RIP and PBR
- Swap Drive for zero-configuration replacement
- Management via on-device WebUI/CLI, Cisco Catalyst Center or Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total fixed ports: 11 (expandable to up to 27 with IEM-3500 modules)
- Copper ports: 8 x 10/100/1000 RJ45
- SFP uplink ports: 3 x 1G/100M
- PoE: Non-PoE model
- Forwarding rate: Line rate on all ports and all packet sizes
- Network licence: Network Essentials
- Number of queues: 8
- Unicast MAC addresses: 24000
- Active VLANs: 1024
- VLAN IDs: 4096
- IGMP multicast groups: 1024
- Spanning Tree Protocol instances: 128
- Jumbo frames: 9198 bytes
- Flash (user accessible): 5.1 GB
- Console ports: 1 RS-232 (via RJ-45), 1 USB Type-C
- Alarms: 2 alarm inputs, 1 alarm output
- Power input: Dual DC, 12V to 48V nominal (9.6V to 60V absolute)
- Input current: 7A
- Power consumption: 29W (measured at 12V)
- Mounting: DIN rail
- Dimensions (W x H x D): 3.48 x 6.00 x 5.29 in (8.84 x 15.24 x 13.44 cm)
- Weight: 3.90 lbs (1.77 kg)
- Operating temperature: -40°C to +75°C (200 LFM airflow enclosure)
- Storage temperature: -40°C to +85°C
- Relative humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- MTBF (Telcordia Issue 4): 518,889 hours

FAQs

Q: Which licence does this SKU ship with?
A: It ships with the perpetual Network Essentials licence. The Network Advantage upgrade is available as IE3500-NW-A=. Catalyst Center and Meraki licences are optional add-ons.

Q: Does this switch provide PoE?
A: No. This is a non-PoE model with no PoE budget. It runs from a dual DC power input, 12V to 48V nominal, and draws 29W at 12V.

Q: Which power supplies can I use?
A: Supported DIN-rail options include PWR-IE50W-AC=, PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. Size the supply to cover any expansion modules as well.

Q: Which expansion modules work with this switch?
A: IEM-3500-8T=, IEM-3500-16T=, IEM-3500-8S=, IEM-3500-6T2S= and IEM-3500-14T2S= are compatible. The PoE modules (IEM-3500-8P=, IEM-3500-16P=, IEM-3500-4MU=) need a PoE-capable host and cannot be used on this non-PoE base unit.

Q: Can I fit 10G SFP+ optics in the uplink ports?
A: No. The three uplink slots support 1G and 100M SFPs. SFP+ 10G optics are supported only on the 8T3X and 8U3X variants of the IE3500.
