Cisco

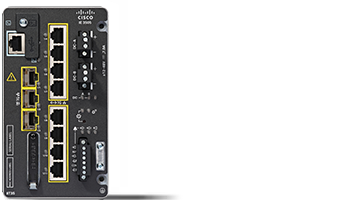

Cisco IE-3500-8T3S-A | Catalyst IE3500 8-Port Gigabit Rugged Switch, 3x 1G SFP, Network Advantage

SKU:IE-3500-8T3S-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 Rugged Series is Cisco's DIN-rail industrial Ethernet range for factory floors, intelligent transportation, utility substations and railway deployments. This modular, fanless switch brings Layer 2 and Layer 3 switching, OT security and time-sensitive networking to harsh environments, and can extend an IT fabric into the OT network.

It provides 8 x 10/100/1000 RJ45 copper ports (non-PoE) and 3 x 1G/100M SFP uplinks, giving 11 fixed ports. Attaching one IEM-3500 expansion module grows the switch to 19 or 27 ports. It forwards at line rate on all ports and packet sizes, with 24,000 unicast MAC addresses, 1,024 active VLANs and 8 queues. Dual DC inputs accept 12-48V nominal, and typical consumption is 29 W. Operation from -40C to +75C is supported in a suitably ventilated enclosure. This SKU ships with the perpetual Network Advantage licence, which adds BGP, IS-IS, EIGRP, HSRP, VRF-lite, PIM multicast, L3 NAT, SD-Access Fabric Edge and BGP-EVPN leaf node capability, plus MACsec-256 and TrustSec SGACL segmentation.

The 1G SFP uplinks accept Cisco FE and GE SFPs, including rugged GLC-SX-MM-RGD= and GLC-LX-SM-RGD= modules. Expansion uses the IEM-3500 module family, and the switch can be managed through the on-device WebUI and CLI, Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, convection-cooled rugged design with shock, vibration and surge hardening
- TSN frame preemption (IEEE 802.1Qbu / 802.3br) to reduce jitter for time-sensitive control traffic
- Resiliency protocols: REP, REP Fast and MRP (PROFINET)
- Secure Boot with a hardware-anchored root of trust
- MACsec-256 and TrustSec SGACL segmentation with Network Advantage
- IOx application hosting for Cisco Cyber Vision, Secure Equipment Access and ThousandEyes Enterprise Agent
- Industrial protocols: CIP EtherNet/IP, PROFINET, IEEE 1588 PTPv2, Modbus TCP and GOOSE classification
- Management via on-device WebUI and CLI, Catalyst Center or Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Fixed ports: 11 total
- Copper ports: 8 x 10/100/1000 RJ45 (non-PoE)
- SFP uplink ports: 3 x 1G/100M
- Expansion: up to 19 or 27 ports with IEM-3500 modules
- Software licence: Network Advantage (perpetual)
- Forwarding rate: line rate on all ports and packet sizes
- Number of queues: 8
- Unicast MAC addresses: 24,000
- Active VLANs: 1,024 (4,096 VLAN IDs)
- IGMP multicast groups: 1,024
- IPv4 indirect routes: 7,000
- IPv6 indirect routes: 3,500
- STP instances: 128
- Access control entries: 1,536
- User-accessible flash: 5.1 GB
- Optional SD card capacity: 16 GB
- Jumbo frames: 9,198 bytes
- Console ports: 1 RS-232 (RJ-45), 1 USB Type-C
- Alarm I/O: 2 inputs, 1 output
- Power inputs: dual DC, 12-48V nominal (9.6-60V absolute)
- Power consumption: 29 W at 12V
- Mounting: DIN rail, fanless convection cooling
- Dimensions (W x H x D): 8.84 x 15.24 x 13.44 cm
- Weight: 1.77 kg
- Operating temperature: -40C to +75C (200 LFM airflow enclosure)
- Ingress protection: IP30

FAQs

Q: Which licence does this SKU include?
A: It ships with the perpetual Network Advantage licence, which includes all Network Essentials features plus routing and segmentation extras such as BGP, EIGRP, VRF-lite and SD-Access Fabric Edge. Optional Catalyst Center DNA and Meraki licences are sold separately.

Q: Does it provide PoE?
A: No. This is a non-PoE model, so it has no PoE budget. Connect powered devices through a separate PoE source or choose a PoE-capable IE3500 variant.

Q: What power supply does it need?
A: It runs from dual DC inputs, 12-48V nominal, and draws about 29 W at 12V. Compatible DIN-rail supplies include PWR-IE50W-AC=, PWR-IE65W-PC-AC/DC=, PWR-IE170W-PC-AC= and PWR-IE480W-PCAC-L=. Expansion modules add 6-22 W each.

Q: How can I add more ports?
A: Attach one IEM-3500 expansion module (IEM-3500-8T=, -16T=, -8S=, -6T2S= or -14T2S=) to reach 19 or 27 total ports. These non-PoE modules suit this non-PoE host.

Q: Which SFPs work in the uplink ports?
A: The three 1G uplinks accept Cisco FE and GE SFPs, including GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, SFP-GE-S/L/Z=, GLC-BX-U/D= and CWDM or DWDM modules.
