Cisco

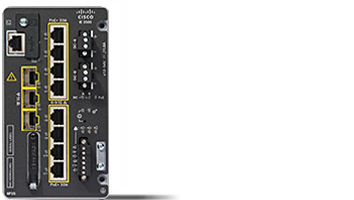

Cisco IE-3500-8P3S-A | Catalyst IE3500 8-Port PoE+ Rugged Switch, 3x 1G SFP, Network Advantage

SKU:IE-3500-8P3S-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3500 Rugged Series switch is a DIN-rail, fanless, modular Layer 2/3 industrial Ethernet switch built for harsh environments. It suits industrial automation and machine vision, ITS and transportation, railway, utility and substation networks, and edge deployments that need PoE for IP cameras, wireless access points and PLCs.

This model provides 8 x 10/100/1000 PoE/PoE+ RJ45 ports and 3 x 1G/100M SFP uplink ports, 11 fixed ports in total. The base PoE budget is 240W, rising to 360W when an IEM-3500 expansion module is fitted, and the system can grow to 19 or 27 ports. It ships with the Network Advantage licence, which includes all Network Essentials features and adds advanced routing such as OSPF, BGP, IS-IS and EIGRP. Network Advantage ordered on or after 23 Aug 2025 includes a 3-year, 24-endpoint Cisco Cyber Vision and Secure Equipment Access licence.

Power is supplied through dual DC inputs from 12V to 54V nominal, with 48VDC needed for PoE and 54VDC for PoE+. Compatible Cisco DIN-rail supplies include PWR-IE65W-PC-AC=, PWR-IE170W-PC-AC= and PWR-IE480W-PCAC-L=. It supports Cisco industrial, extended and commercial 1G SFPs, and can be managed through Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- TSN frame-preemption (IEEE 802.1Qbu / 802.3br) to reduce jitter for time-sensitive traffic
- Resiliency protocols including REP, REP Fast and Media Redundancy Protocol (MRP)
- Secure Boot with hardware-anchored root of trust, MACsec, Cisco TrustSec and 802.1x
- IOx application hosting with native Docker support
- Network Advantage routing including OSPF, BGP, IS-IS, EIGRP, HSRP, PIM and MSDP
- SD-Access Fabric Edge and Policy Extended Node, BGP-EVPN leaf node and VRF-lite
- Industrial protocols including CIP EtherNet/IP, PROFINET, IEEE 1588 PTPv2 and Modbus TCP
- Fast and Perpetual PoE, plus Swap Drive for zero-configuration replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Fixed ports: 11 total
- Copper ports: 8 x 10/100/1000 PoE/PoE+ RJ45
- Uplink ports: 3 x 1G/100M SFP
- Maximum PoE budget: 240W (360W with expansion module)
- Expansion: up to 19 or 27 ports with IEM-3500 module
- Licence: Network Advantage
- Power inputs: dual DC, 12V to 54V nominal (9.6V to 60V absolute)
- Input current: 11A
- Power consumption: 32W (excludes PoE load)
- Console ports: 1 RS-232 (via RJ-45), 1 USB Type-C
- Alarms: 2 alarm inputs, 1 alarm output
- Forwarding rate: line rate for all ports and packet sizes
- Unicast MAC addresses: 24000
- Active VLANs: 1024 (4096 VLAN IDs)
- Jumbo frames: 9198 bytes
- User-accessible flash: 5.1 GB
- Dimensions (W x H x D): 8.84 x 15.24 x 13.44 cm
- Weight: 1.77 kg
- Mounting: DIN rail, fanless
- Operating temperature: -40 to +75 C (enclosure with minimum 200 LFM airflow)
- Ingress protection: IP30
- MTBF (Telcordia Issue 4): 474,469 hours

FAQs

Q: Which licence does this SKU include?
A: It ships with the Network Advantage licence, which includes all Network Essentials features. Network Advantage ordered on or after 23 Aug 2025 also includes a 3-year, 24-endpoint Cisco Cyber Vision and Secure Equipment Access licence. Licences for additional endpoints are sold separately.

Q: What power supply does it need?
A: It runs from dual DC inputs of 12V to 54V nominal, with 48VDC required for PoE and 54VDC for PoE+. Compatible Cisco DIN-rail supplies include PWR-IE65W-PC-AC=, PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. The supply must cover the switch, any expansion module and the PoE load.

Q: How can I add more ports or PoE capacity?
A: Fit an IEM-3500 expansion module such as the IEM-3500-8T=, IEM-3500-8P= or IEM-3500-16P=. This takes the system to 19 or 27 ports and raises the total PoE budget to 360W. PoE expansion modules need a PoE-capable host switch.

Q: What PoE budget does it provide?
A: The base switch provides a 240W PoE budget across its 8 PoE/PoE+ ports. With an expansion module fitted, the total PoE budget increases to 360W.

Q: Which SFPs can I use in the uplink ports?
A: The 3 SFP ports accept Cisco 1G and 100M industrial, extended and commercial SFPs, including the GLC- and SFP-GE- families and CWDM/DWDM types. Non-industrial SFPs require the operating temperature to be derated.

Q: How is it managed?
A: It can be managed through the WebUI or CLI, Catalyst Center on-premises, or the Meraki dashboard for cloud management. Meraki management requires IOS XE 26.1.1 or later on the base switch.
