Cisco

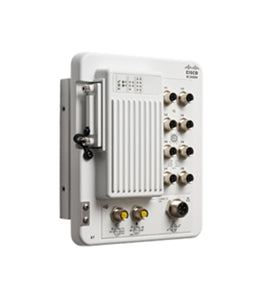

Cisco IE-3400H-8T-E | Catalyst IE3400H 8-Port M12 Switch, IP67, Network Essentials

SKU:IE-3400H-8T-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty Series switch is an IP67-rated, wall-mount industrial Ethernet switch built for dust- and water-exposed environments where a housing cabinet is not practical. It suits factory automation, transportation and rail, and other industrial IoT edge deployments that need segmentation, security and visibility.

This model provides eight 10/100/1000 Gigabit Ethernet M12 X-coded ports and one M12 A-coded console port. It is a non-PoE model with no SFP uplinks. Power is a single DC input through a mini-change connector, accepting 9.6 to 60 VDC, with a power consumption of 30.4 W at 9.6 V and 32.2 W at 60 V. The switch is rated IP66/IP67 and UL 50E Type 4X, and operates from -40 C to +75 C with 200 LFM airflow. It carries 4 GB of DRAM and 1.5 GB of user-accessible flash, with an optional SD card slot.

It runs Cisco IOS XE with the Network Essentials feature set, which can be upgraded to Network Advantage using IE3400H-NW-A=. Cisco Catalyst Center licences are optional add-ons. Compatible accessories include the PWR-IE160W-67-DC= power supply, 4 GB and 16 GB SD cards, and the CAB-CONSOLE-M12= console cable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 heavy-duty design resists dust and water submersion and mounts on a wall without a cabinet
- Hardened for vibration, shock, surge, electrical noise and temperatures from -40 C to 75 C
- Secure Boot, image signing and Cisco Trust Anchor module on Cisco IOS XE
- MACsec-128 and FIPS 140-2 in Network Essentials, with MACsec-256 on Network Advantage
- Industrial protocols including CIP EtherNet/IP, PROFINET, IEEE 1588 PTP v2 and Modbus TCP/IP
- Ring and network redundancy with REP, MRP, DLR, HSR and PRP
- Flexible NetFlow for traffic visibility, plus IOx edge compute with Cisco Cyber Vision support
- Managed by WebUI or Cisco Catalyst Center, with NETCONF, RESTCONF and YANG programmability
- Swap Drive zero-configuration replacement for faster recovery

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 8 x 10/100/1000 Gigabit Ethernet M12 X-coded
- Console port: 1 x M12 A-coded 5-pin
- Uplinks: None, no SFP ports
- PoE: Not supported
- Feature set: Cisco IOS XE Network Essentials
- Upgrade option: Network Advantage
- Input voltage: 9.6 to 60 VDC, mini-change connector
- Input current: 3.2 A at 9.6 V, 0.54 A at 60 V
- Power consumption: 30.4 W at 9.6 V, 32.2 W at 60 V
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Removable storage: SD card slot, 4 GB or 16 GB cards
- Forwarding rate: Line rate on all ports for all packet sizes
- Unicast MAC addresses: 16000
- VLANs: 256
- Spanning Tree instances: 128
- Jumbo frames: 8996 bytes
- Alarm: 1 output relay and 1 input
- Ingress protection: IP66/IP67, UL 50E Type 4X
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing
- Altitude: up to 4,200 m
- Dimensions (H x W x D): 24.33 x 20.07 x 8.00 cm
- Weight: 3.83 kg including mounting bracket
- Mounting: Wall mount
- MTBF: 566,908 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Essentials IOS XE feature set. You can upgrade to Network Advantage with IE3400H-NW-A=. Cisco Catalyst Center licences are optional add-ons.

Q: Does it support PoE?
A: No. This is a non-PoE model with eight Gigabit M12 data ports. Powered devices need their own power source.

Q: How is the switch powered?
A: It takes a single DC input through a mini-change connector, accepting 9.6 to 60 VDC. The optional PWR-IE160W-67-DC= is an IP67-rated DC-DC power supply that accepts 18 to 60 V.

Q: Does it have SFP uplink ports?
A: No. All eight ports are M12 X-coded copper Gigabit ports, and there are no SFP uplinks.

Q: What does it work with?
A: It works with 4 GB and 16 GB SD cards, the CAB-CONSOLE-M12= console cable and M12 X-coded 8-pin copper cabling. It can be managed through Cisco Catalyst Center.
