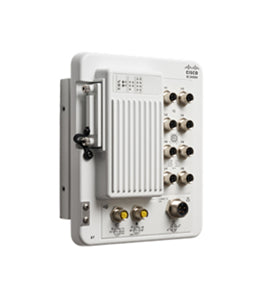

Cisco IE-3400H-8T-A | Catalyst IE3400H 8-Port M12 Switch, IP67, Network Advantage

SKU:IE-3400H-8T-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is an IP67-rated, wall-mountable industrial Ethernet switch built for OT networks exposed to heavy dust and water. It suits machine-side and wall-mounted deployments without a housing cabinet, as well as Industrial IoT edge, rail and transportation, automation and SCADA networks that need segmentation and security.

This model provides 8 Gigabit Ethernet ports on M12 X-coded connectors with line-rate forwarding on every port. It has no PoE and no SFP uplinks. It runs Cisco IOS XE with the Network Advantage feature set as its default, with 4 GB DRAM and 1.5 GB of user-accessible flash. Power is a single 9.6 to 60 VDC input through a Mini-Change connector, and the unit operates from -40 to +75 C with 200 LFM airflow.

Optional accessories include the PWR-IE160W-67-DC= IP67 DC-DC power supply, the SD-IE-16GB SD card and the CAB-CONSOLE-M12= console cable. Cisco Catalyst Center licences such as IE3400H-DNA-E and IE3400H-DNA-A are separate add-ons.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 heavy-duty design protecting against dust and water submersion
- Hardened for vibration, shock, surge, electrical noise and extreme temperatures
- Cisco IOS XE with Secure Boot, image signing and Cisco Trust Anchor module
- MACsec-256, SGT/SGACL and Cisco TrustSec segmentation
- Layer 3 routing with OSPF, BGP, IS-IS, RIP, EIGRP, PBR, VRRP and HSRP, plus PIM multicast and VRF-lite
- Industrial protocols including CIP Ethernet/IP, PROFINET and IEEE 1588v2 PTP
- Redundancy with REP, MRP, PRP, HSR, DLR and HSR-PRP Dual Redbox
- IOx container support, Cisco Cyber Vision and Secure Equipment Access
- Managed with WebUI, Cisco Catalyst Center, NETCONF, RESTCONF and YANG
- Swap Drive zero-configuration replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 8 x 10/100/1000 Gigabit Ethernet M12 X-coded
- PoE: None
- SFP uplinks: None
- Feature set: Network Advantage (default)
- Forwarding rate: Line rate on all ports for all packet sizes
- Number of queues: 8
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- VLANs: 256
- Unicast MAC addresses: 16000
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- Jumbo frames: 8996 bytes
- Console port: 1 x M12 A-coded 5-pin
- Alarm: 1 output relay, 1 input
- Power input: 9.6 to 60 VDC via Mini-Change connector
- Power consumption: 30.4 W at 9.6 V, 32.2 W at 60 V
- Dimensions (H x W x D): 24.33 x 20.07 x 8.00 cm
- Weight: 3.83 kg including mounting bracket
- Mounting: Wall mount
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Ingress protection: IEC 60529 IP66/IP67, UL 50E Type 4X
- Operating altitude: Up to 4,200 m
- MTBF: 566,908 hours

FAQs

Q: Does this switch need a separate licence?
A: No. It ships with the Network Advantage perpetual licence as its default feature set, with no further upgrade. Cisco Catalyst Center Essentials and Advantage licences are optional add-ons purchased separately.

Q: Does it support PoE?
A: No. This model has no PoE. It is powered by a single 9.6 to 60 VDC input through a Mini-Change connector and draws about 30.4 W at 9.6 V.

Q: What power supply can I use with it?
A: The optional PWR-IE160W-67-DC= IP67 DC-DC power supply accepts 18 to 60 V input and delivers 54 V at up to 160 W. Power cables use Molex Mini-Change A-size cordsets.

Q: What connectors does it use?
A: The 8 Gigabit data ports use M12 X-coded 8-pin copper connectors. The console and alarm connections use M12 A-coded 5-pin connectors.

Q: Does it have fibre uplinks?
A: No. This variant has 8 Gigabit M12 copper ports only and no SFP uplink ports.
