Cisco

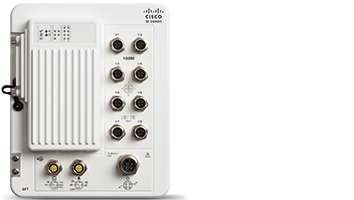

Cisco IE-3400H-8FT-E | Catalyst IE3400H 8-Port M12 Industrial Switch, Network Essentials

SKU:IE-3400H-8FT-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is an IP67-rated, wall-mountable industrial Layer 2/3 Ethernet switch built for networks that need switching at the point of work in harsh conditions. It suits factory floors, outdoor and heavy-duty installations and other OT environments exposed to heavy dust and water, and it sits well in segmented IoT-edge deployments where Fast Ethernet connectivity is sufficient.

This SKU provides 8 Fast Ethernet 10/100 ports on M12 D-coded connectors. It has no Gigabit ports, no SFP uplinks and no PoE. It runs Cisco IOS XE with the perpetual Network Essentials feature set, which can be upgraded to Network Advantage for IP routing protocols, MACsec-256 and SGT. Forwarding is line rate on every port for all packet sizes, with 4 GB DRAM and 1.5 GB of user-accessible flash.

Power comes from a single DC input of 9.6 to 60 VDC through a mini-change connector, with consumption of 28.8 W at 9.6 V and 30.6 W at 60 V. The switch is rated for -40 C to +75 C with 200 LFM airflow. An alarm I/O port and an M12 console port are included. It uses the same software image as the Catalyst IE3x00 Rugged Series and can be managed through Cisco Catalyst Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 heavy-duty design for dust and submersion protection, wall mounted without a housing cabinet
- Cisco IOS XE with Secure Boot, image signing and Trust Anchor module
- MACsec-128 and FIPS 140-2 support, with Flexible NetFlow for traffic visibility
- Industrial protocols including CIP Ethernet/IP, PROFINET, IEEE 1588 PTP v2 and Modbus TCP/IP
- Ring redundancy with REP, MRP, PRP, HSR-SAN and DLR
- Edge compute with IOx Docker containers, Cisco Cyber Vision and Secure Equipment Access
- Managed through WebUI, Cisco Catalyst Center, NETCONF, RESTCONF and YANG
- Swap Drive zero-configuration replacement and alarm I/O for external equipment signalling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 8 x 10/100 Fast Ethernet, M12 D-coded
- Gigabit ports: 0
- Uplinks: none, no SFP ports
- PoE: not supported
- Feature set: Cisco IOS XE Network Essentials
- Upgrade path: Network Advantage
- Forwarding rate: line rate on all ports for all packet sizes
- Queues: 8
- VLANs: 256
- Unicast MAC addresses: 16000
- IGMP multicast groups: 1000
- Spanning Tree instances: 128
- Access Control Entries (PACLs): 3024
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Removable storage: optional SD card slot
- Jumbo frames: 8996 bytes
- Console port: 1 x M12 A-coded 5-pin
- Alarm I/O: 1 relay output, 1 input
- Power input: 9.6 to 60 VDC, mini-change connector
- Power consumption: 28.8 W at 9.6 V, 30.6 W at 60 V
- Dimensions (H x W x D): 24.33 x 20.07 x 8.00 cm
- Weight: 3.83 kg including mounting bracket
- Mounting: wall mount
- Ingress protection: IP66/IP67, UL 50E Type 4X
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Storage temperature: -40 to +85 C
- Operating altitude: up to 4,200 m
- MTBF: 566,908 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Cisco IOS XE Network Essentials licence. It can be upgraded to Network Advantage with IE3400H-NW-A=, which adds IP routing protocols such as OSPF, BGP and EIGRP, plus MACsec-256 and SGT.

Q: Does this model supply PoE to connected devices?
A: No. This is a non-PoE Fast Ethernet model, so connected devices need their own power.

Q: How is the switch powered?
A: It takes a single DC input of 9.6 to 60 VDC through a mini-change connector. An optional IP67 DC-DC power supply, PWR-IE160W-67-DC=, is available as an accessory.

Q: Does it have SFP or Gigabit uplink ports?
A: No. All 8 ports are 10/100 Fast Ethernet on M12 D-coded connectors, with no SFP or Gigabit ports.

Q: What accessories work with this switch?
A: Compatible accessories include the SD-IE-16GB SD card, the CAB-CONSOLE-M12= console cable, the PWR-IE160W-67-DC= power supply and the IE3400H-NW-A= Network Advantage upgrade.
